SPECIFICATIONS

Application: Stone Saw

Battery Included: No

Blade Diameter: 410mm

Brand Name: CNCEST

Color: Black, Red

Dimensions: 60*21*42 cm

Frequency: 50/60Hz

High-concerned chemical: None

Material: Carbon Steel, Diamond, Nylon, Aluminum, Copper

Max. Cutting Depth: 165mm/ 6.5in

Maximum Cutting Depth: 165mm/ 6.5in

No-Load Speed: 3000rpm

Origin: Mainland China

Plug Type: US/EU Standard

Power: 4000W

Power Cord Length: 3m/ 9.84ft

Power Source: AC,AC

Rated Input Power: 5800W

Rated Voltage: 110V

Saw Type: Circular Saw

Use: Commercial Manufacture

Water Pump Model: GAIS-1201500

Water Pump Output: DC12V 1.5A

Wattage: 4000-5999W

Weight: 14kg

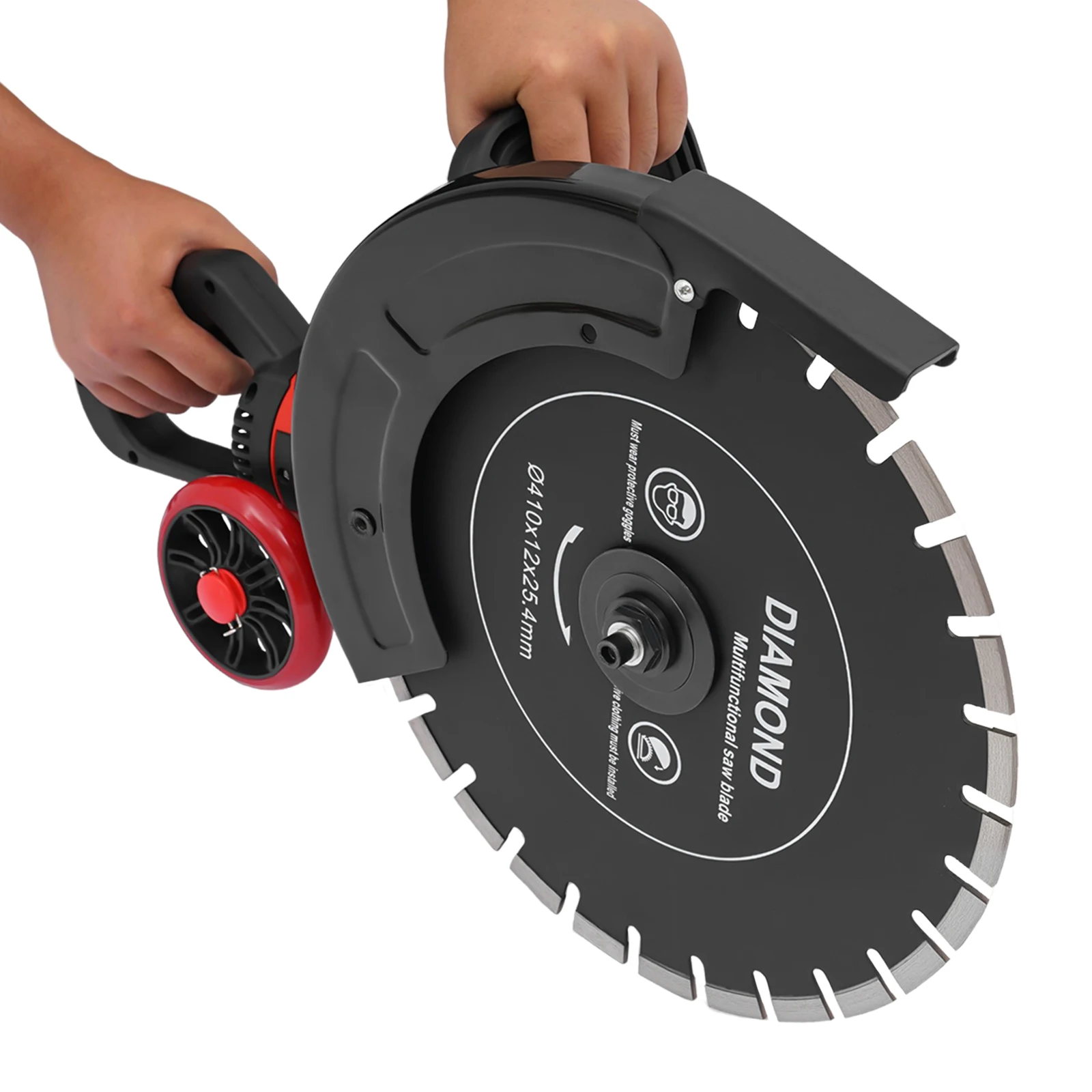

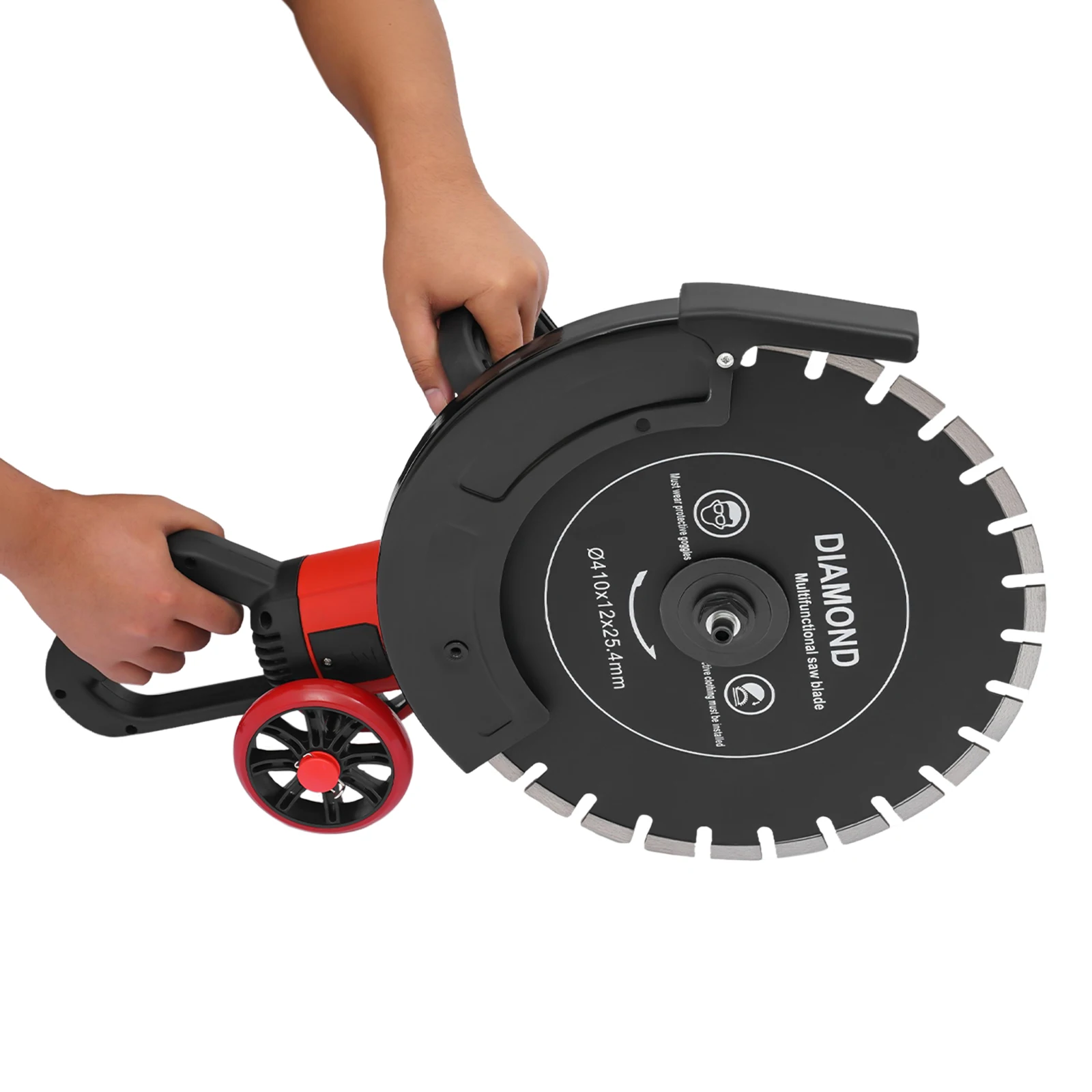

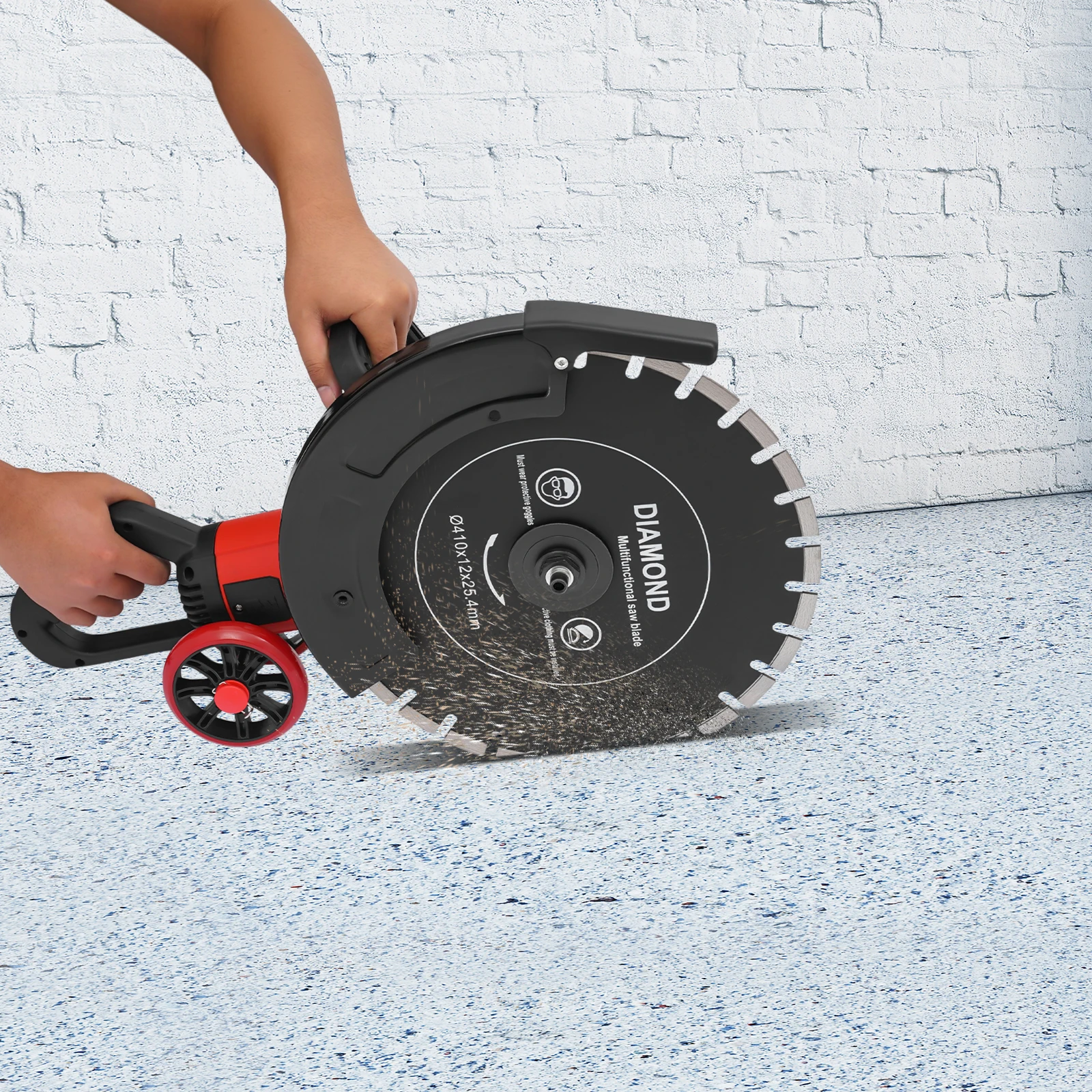

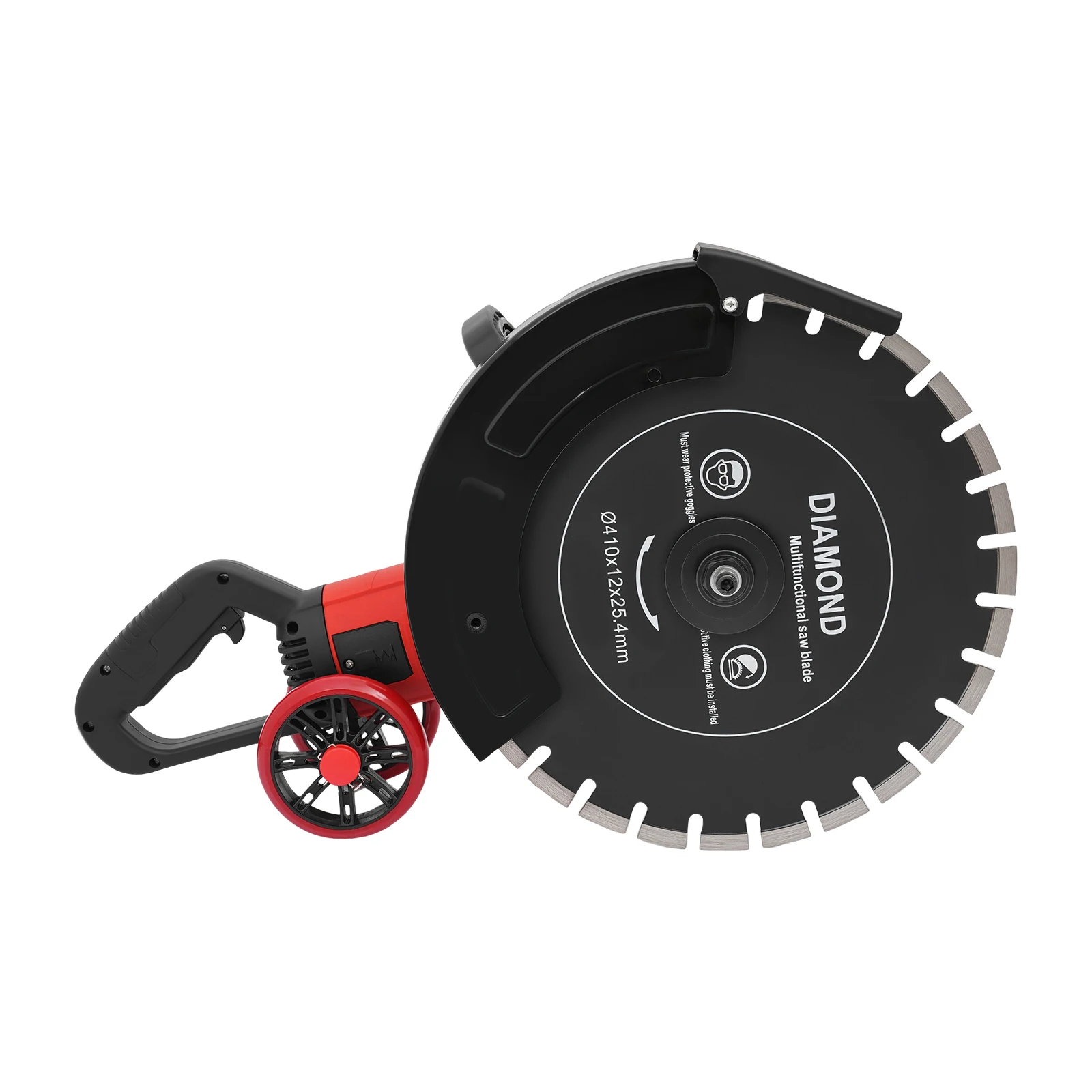

16In 4000W Electric Concrete Saw Brick Cutter Circular Saw Wall Slotting Groving with Saw Blade and Rolling Pulley 3000RPM

This electric concrete saw adopts a 4000W pure copper motor with a speed of up to 3000rpm and is equipped with 1 piece of high-strength diamond and carbon steel blade, which can easily cut concrete, red bricks, etc., bringing more convenience. With many practical accessories and user-friendly designs, this machine is convenient, simple, safe, and healthy to use. Have it to facilitate your grooving work now!

Key Features

Dust-free Slotting: The water pump with a 16.4ft hose can supply water quickly, improve cutting efficiency, reduce dust splashing during cutting, lower the temperature of the saw blade while extending its service life, and protect your health.

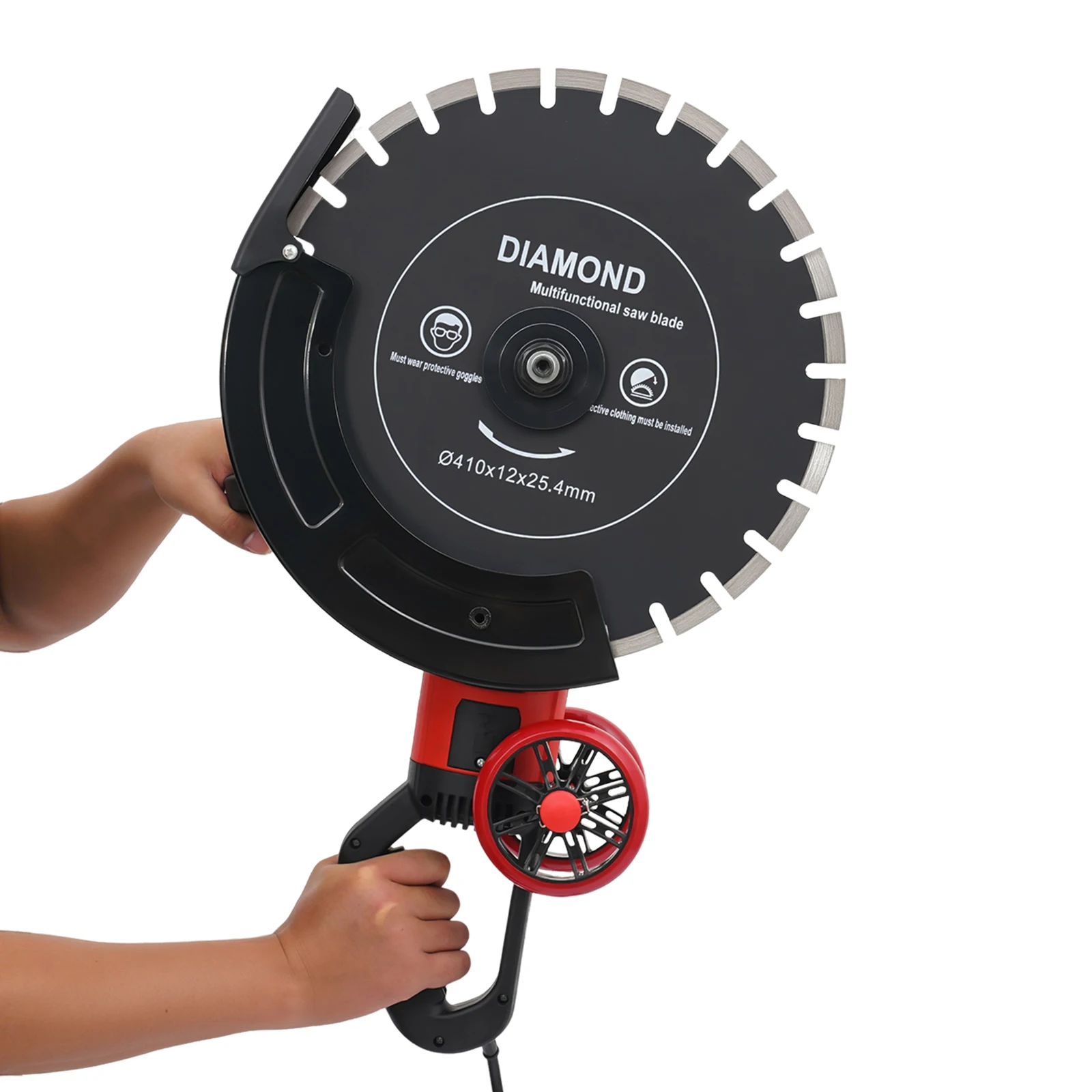

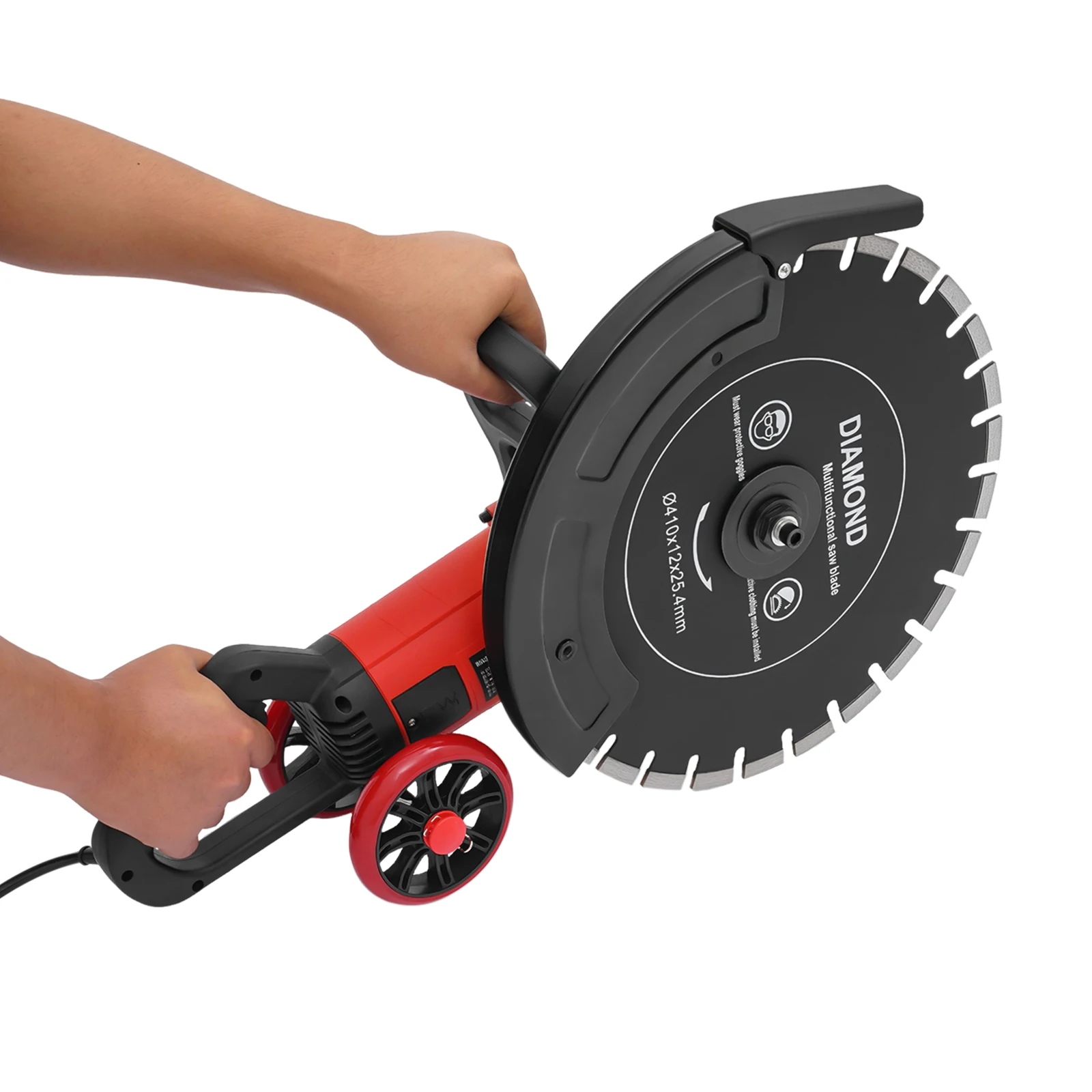

Humanized Design: The ergonomic main handle meets horizontal or vertical cutting needs, the front auxiliary handle is easy to control, and the two together can achieve good balance and high cutting performance.

Adjustable Depth: You can adjust the slotting depth (6.5 inches max) by adjusting the base plate of the product to meet the different needs of daily work.

Safe and Reliable: The grille heat dissipation ports on the body ensure good heat dissipation so that the heat during operation can be discharged at a faster speed to protect the motor from being burned out due to long-term use. The self-locking protection design makes it safer and more reliable to use.

Good Customer Service:We stand behind all our guests and look forward to assisting you with your purchase. It is our pleasure to answer your confusion and questions. The end of the story between us is not "we sell and you buy".

Details

Aluminum Gearbox: It is lightweight, not easy to deform, and has a smoother power transmission.

External Carbon Brush: This humanized design is convenient for machine repair and maintenance.

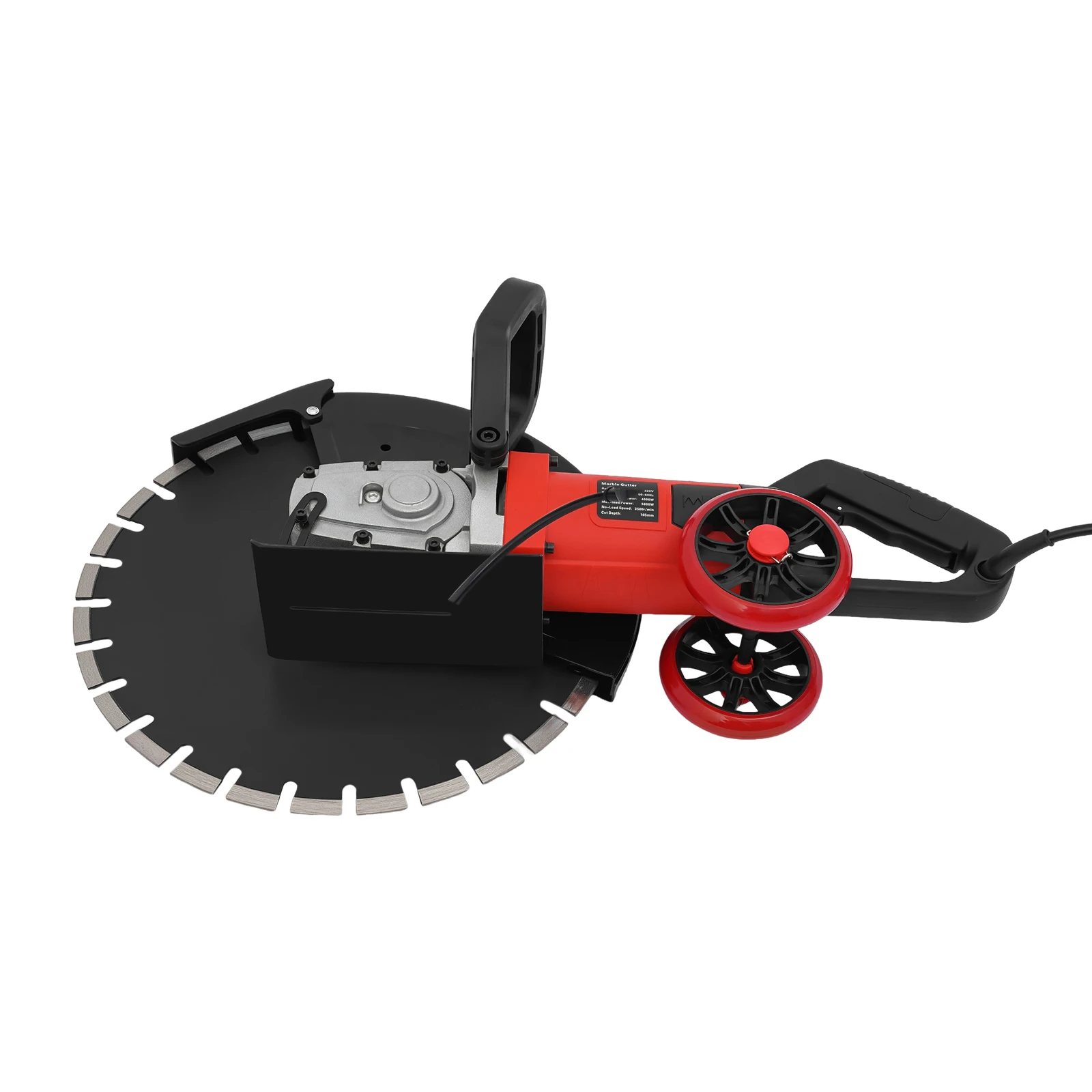

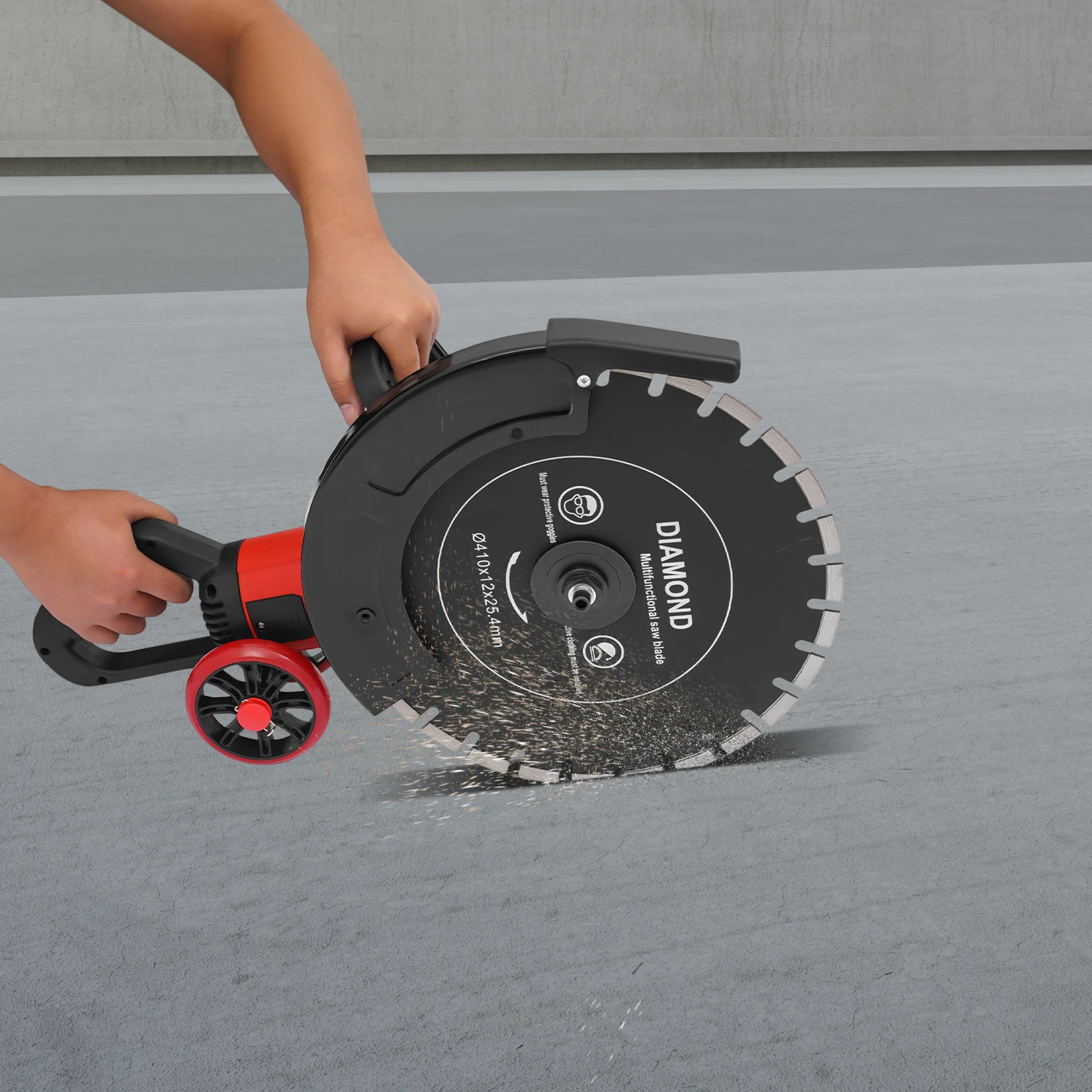

Auxiliary Pulleys: Equipped with auxiliary pulleys on both sides, it is both easier and labor-saving when cutting flat surfaces and smoother when cutting walls.

Protective Cover: You can adjust its angle according to your cutting habit and preference to prevent water and other objects from splashing out.

Application

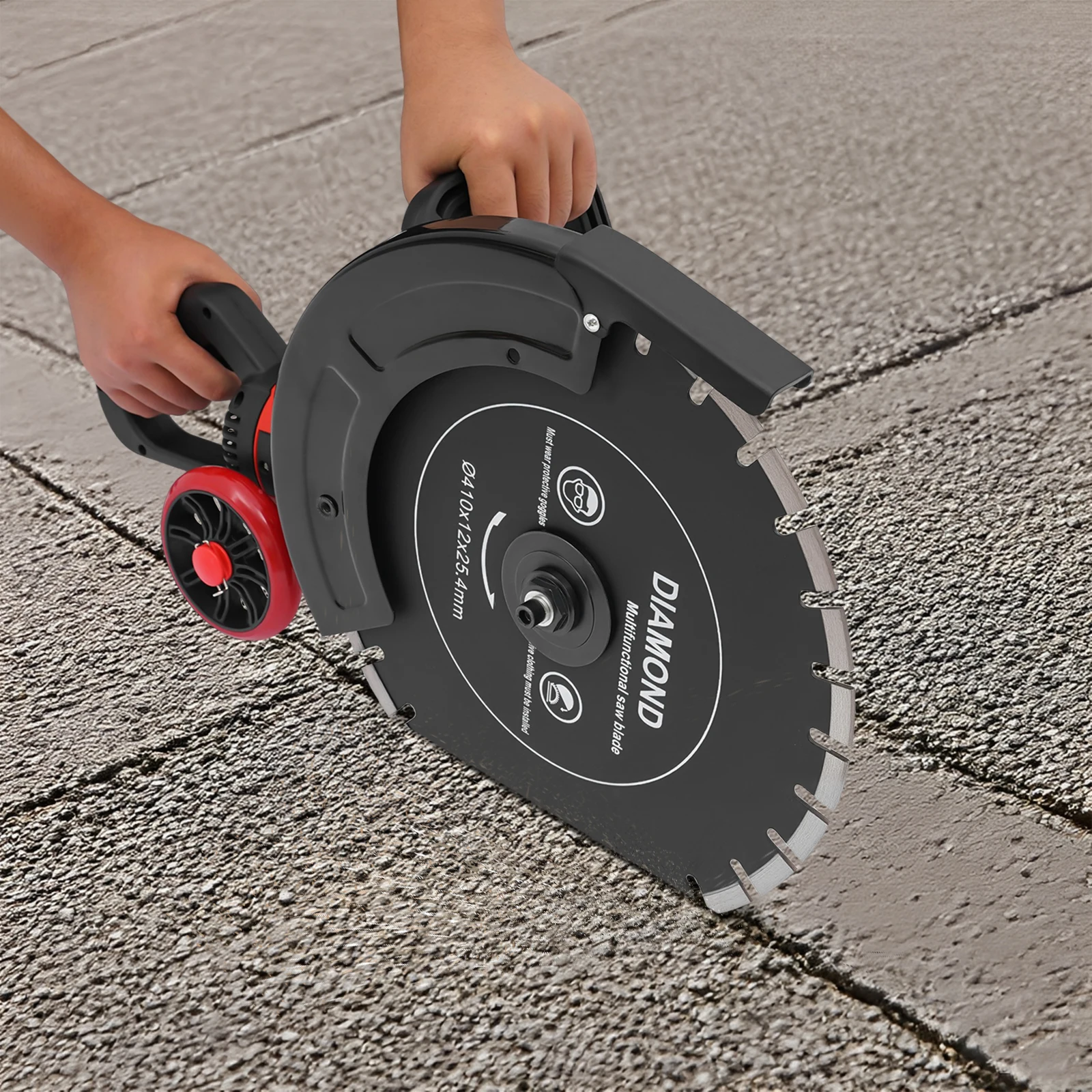

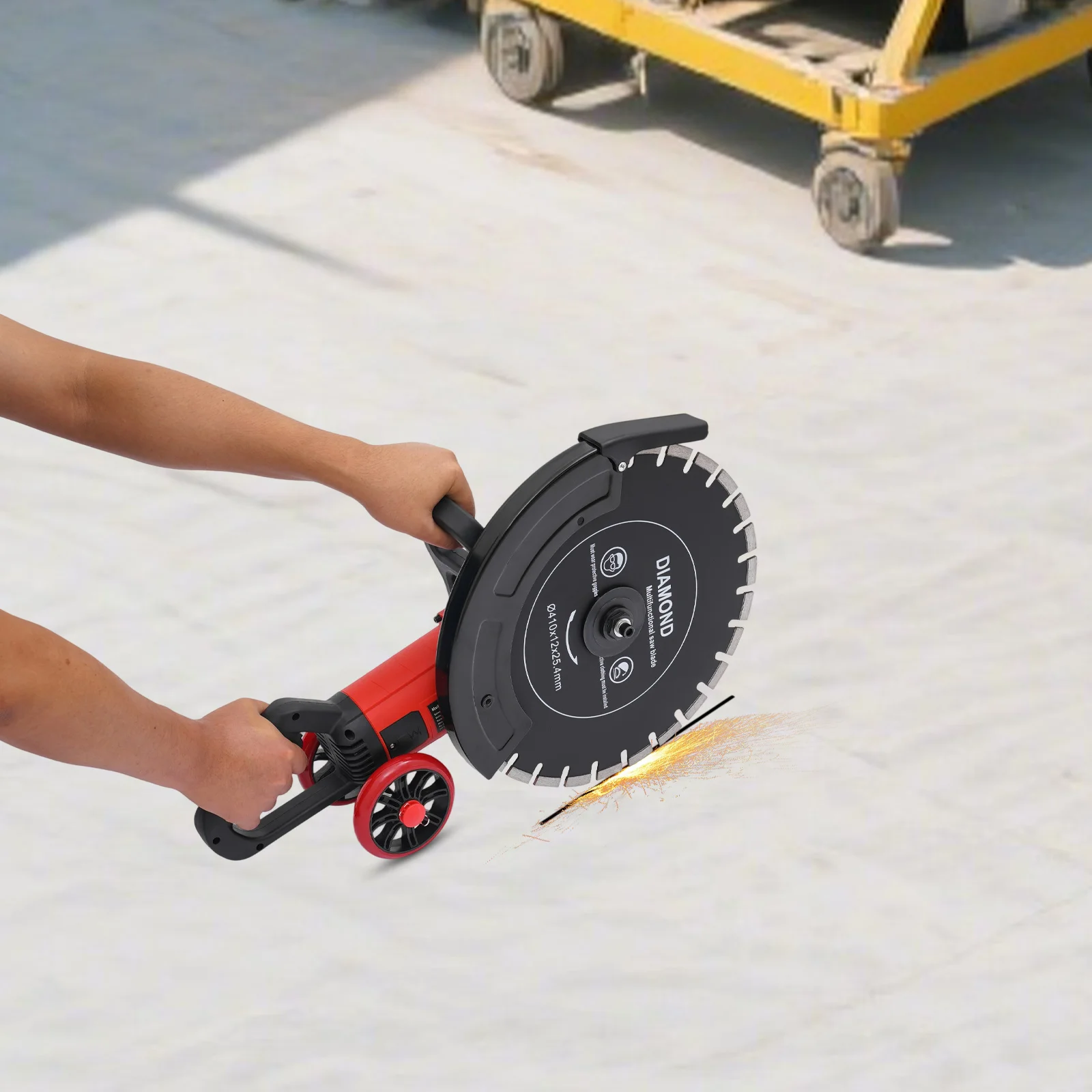

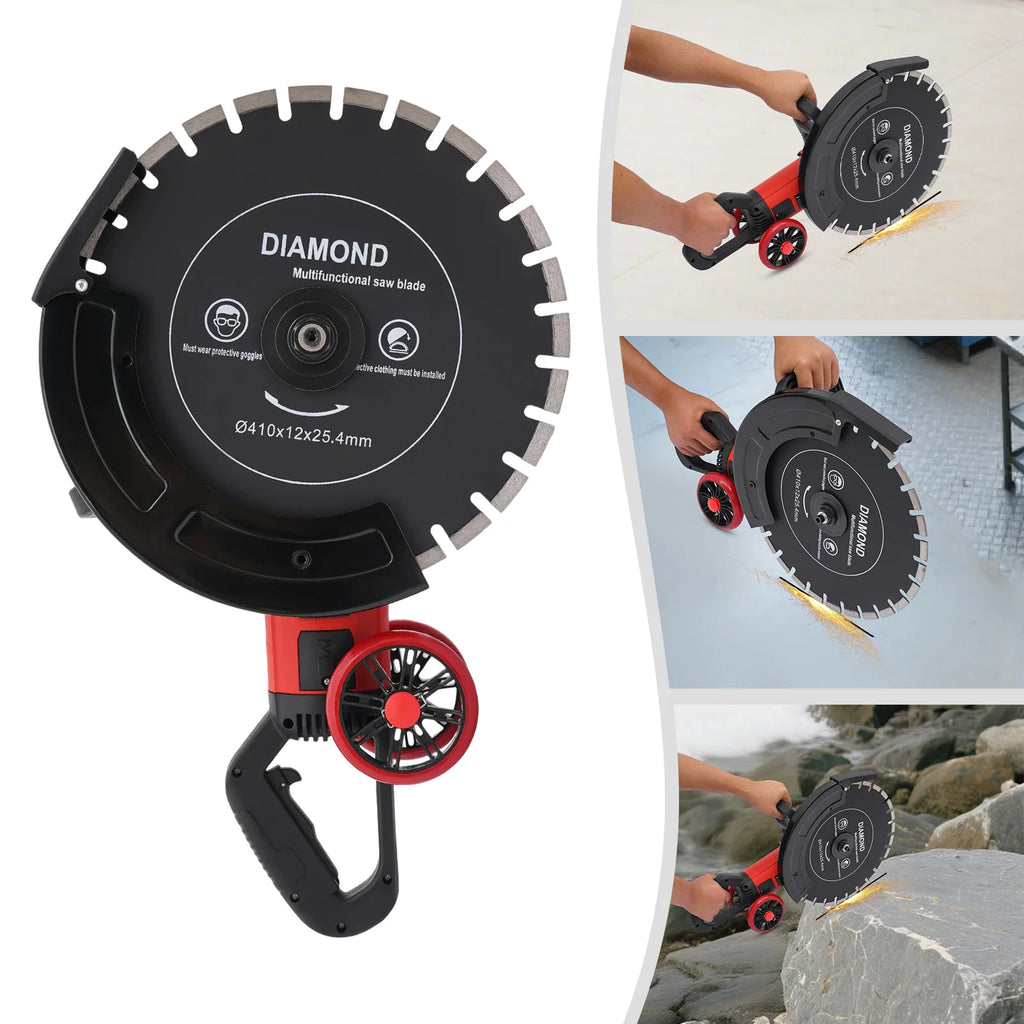

This product is suitable for cutting stone, concrete, granite, red brick, ceramics, concrete floors, tarmac, and so on. You can replace other saw blades for cutting wood and metal as well.

Specification OF 110V US

Material: Carbon Steel, Diamond, Nylon, Aluminum, Copper

Color: Black, Red

Assembly Required: Yes

Power Source: Corded Electric

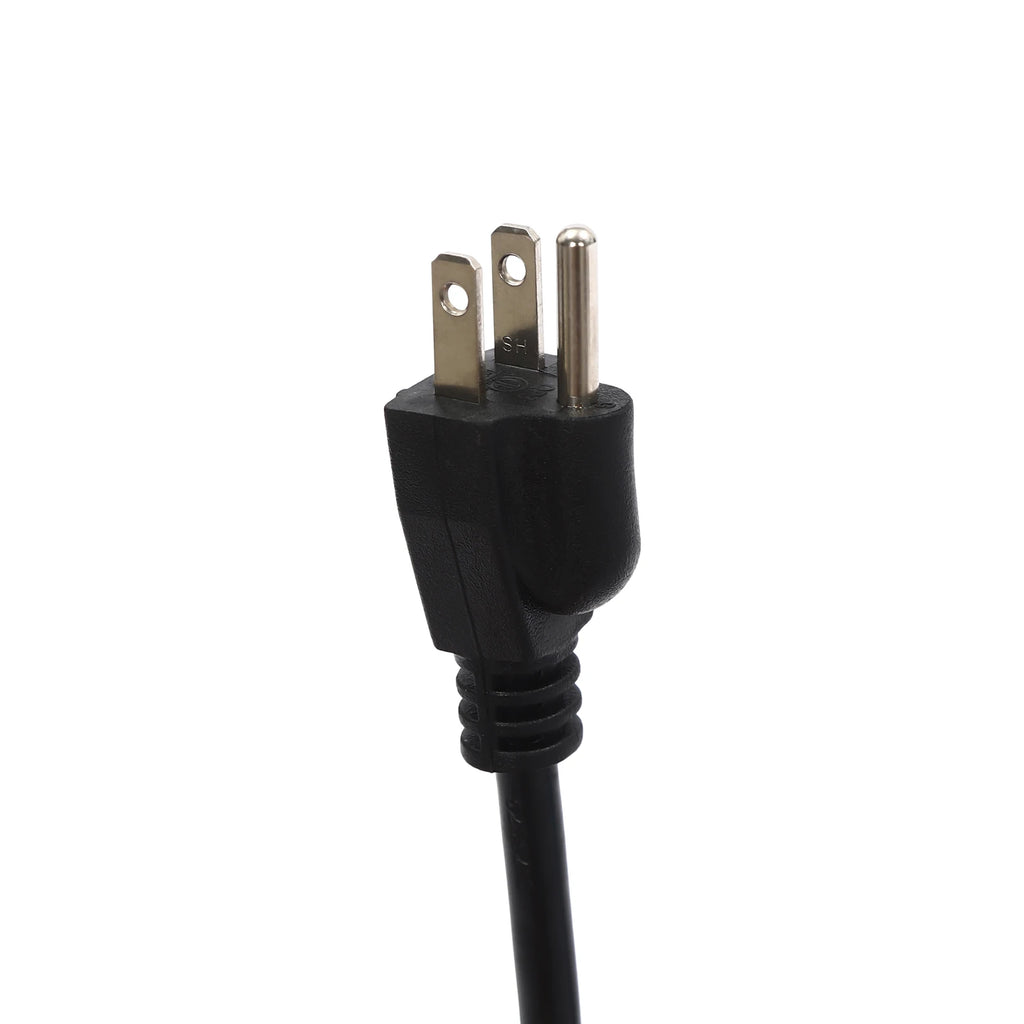

Plug Type: US Standard

Motor Type: Pure Copper Motor

Number of Saw Blades: 1

Water Pump Model: GAIS-1201500

Water Pump Input: AC100-240V 50/60Hz

Water Pump Output: DC12V 1.5A

Voltage: 110V

Power: 4000W

Speed: 3000RPM

Maximum Load Power: 5800W

Maximum Cutting Depth: 165mm/ 6.5in

Power Cord Length: 3m/ 9.84ft

Water Pipe Length: 5m/ 16.4ft

Water Pipe Inner Diameter: 6mm/ 0.24in

Applicable Pipe: 6mm/ 0.24in

Saw Blade (D*T): 410*3mm/ 16.14*0.12in

Saw Blade Hole Diameter: 25.4mm/ 1in

Gross Weight: 14kg/ 30.86 lbs

Package Size: 62*24*42 cm/ 24.41*9.45*16.54in

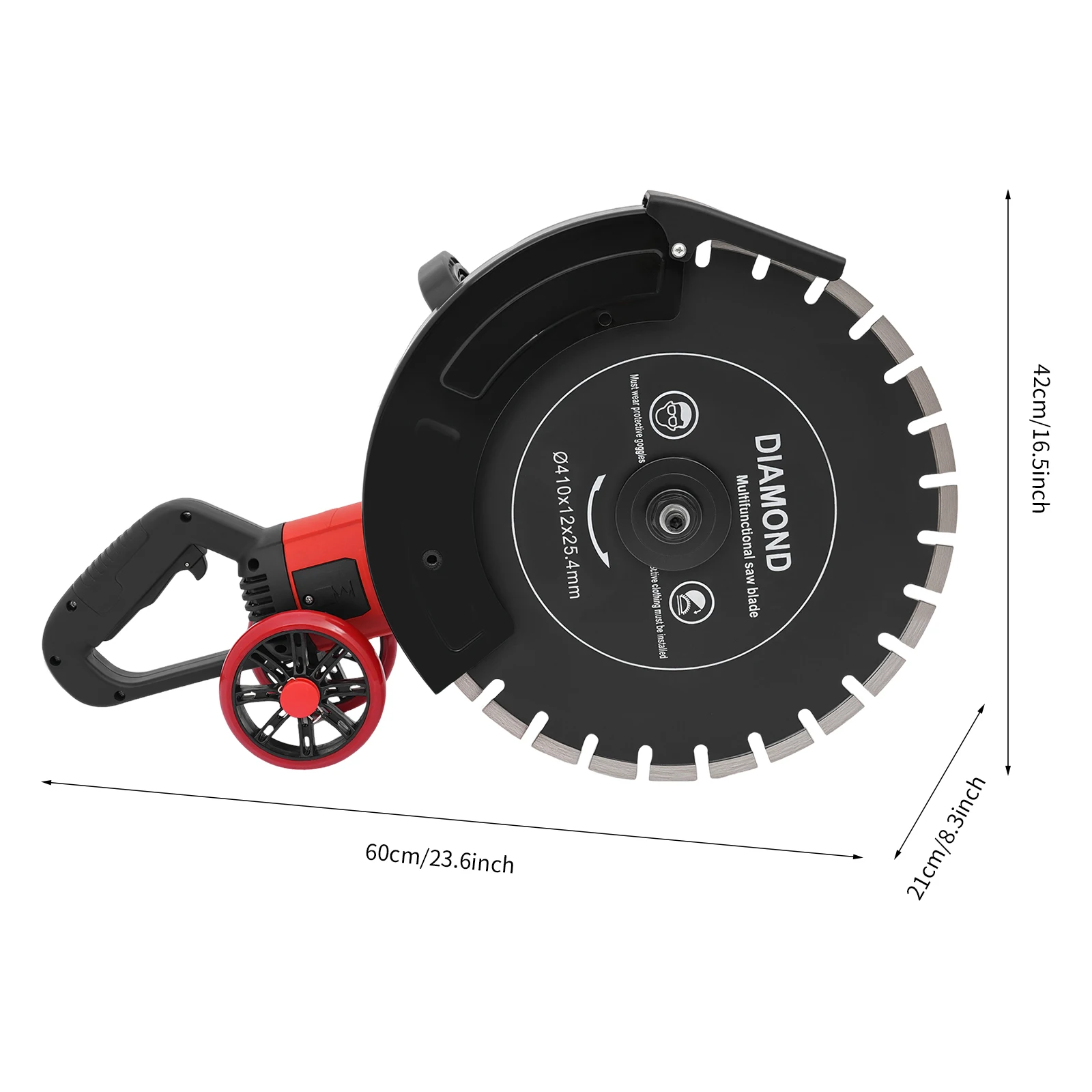

Product Size: 60*21*42 cm/ 23.62*8.27*16.54 in

Specification OF 220V EU

Material: Carbon Steel, Diamond, Nylon, Aluminum, Copper

Color: Black, Red

Assembly Required: Yes

Power Source: Corded Electric

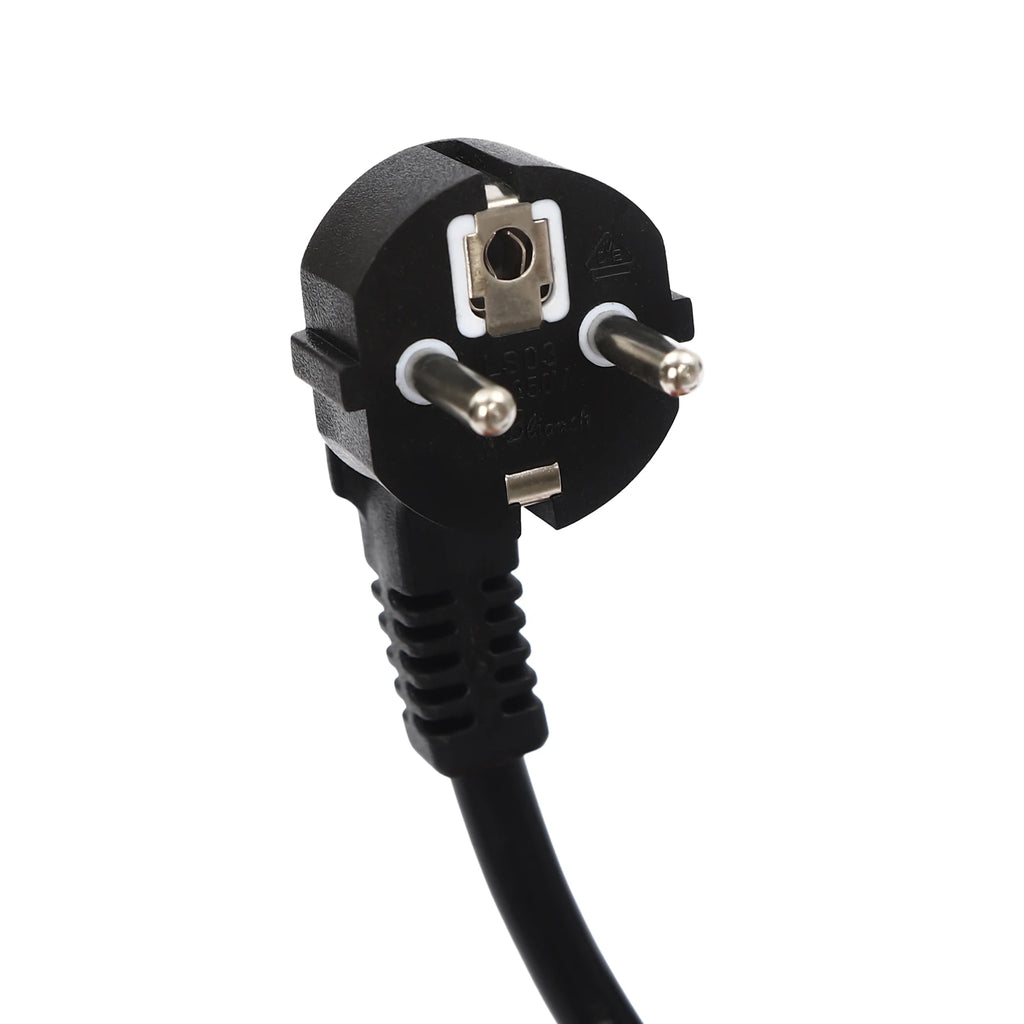

Plug Type: EU Standard

Motor Type: Pure Copper Motor

Number of Saw Blades: 1

Water Pump Model: BT-1230

Water Pump Input: 100-240V AC 50/60Hz

Water Pump Output: 12V 3A

Voltage: 220V

Power: 4000W

Speed: 3000RPM

Maximum Load Power: 5800W

Maximum Cutting Depth: 165mm/ 6.5in

Power Cord Length: 3m/ 9.84ft

Water Pipe Length: 5m/ 16.4ft

Water Pipe Inner Diameter: 6mm/ 0.24in

Applicable Pipe: 6mm/0.24in, 8mm/0.31in, 10mm/0.39in

Saw Blade (D*T): 410*3mm/ 16.14*0.12in

Saw Blade Hole Diameter: 25.4mm/ 1in

Gross Weight: 14kg/ 30.86 lbs

Package Size: 62*24*42 cm/ 24.41*9.45*16.54in

Product Size: 60*21*42 cm/ 23.62*8.27*16.54 in

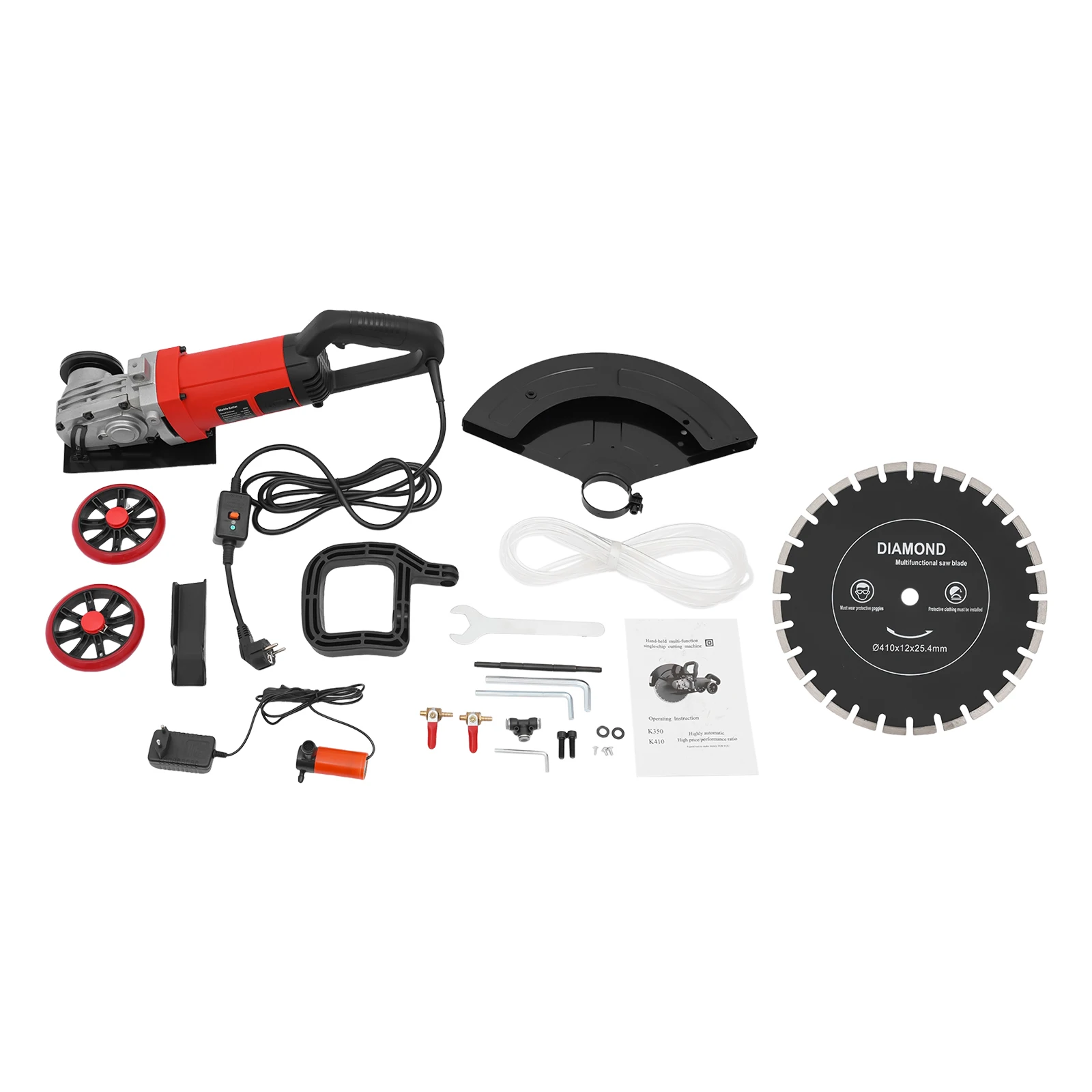

Package Included

1* Electric Concrete Saw

1* Protective Cover

1* Water Pipe

1* Water Pump

1* Blade

2* Rolling Pulleys

1* English Manual

All Accessories for Installation

Notes

1. Please beware of potential safety hazards in electricity use. Please use this product according to the English manual, take necessary personal protective measures, and keep them out of reach of children.

2. Please note that you will needto prepare a bucket when using the pump.

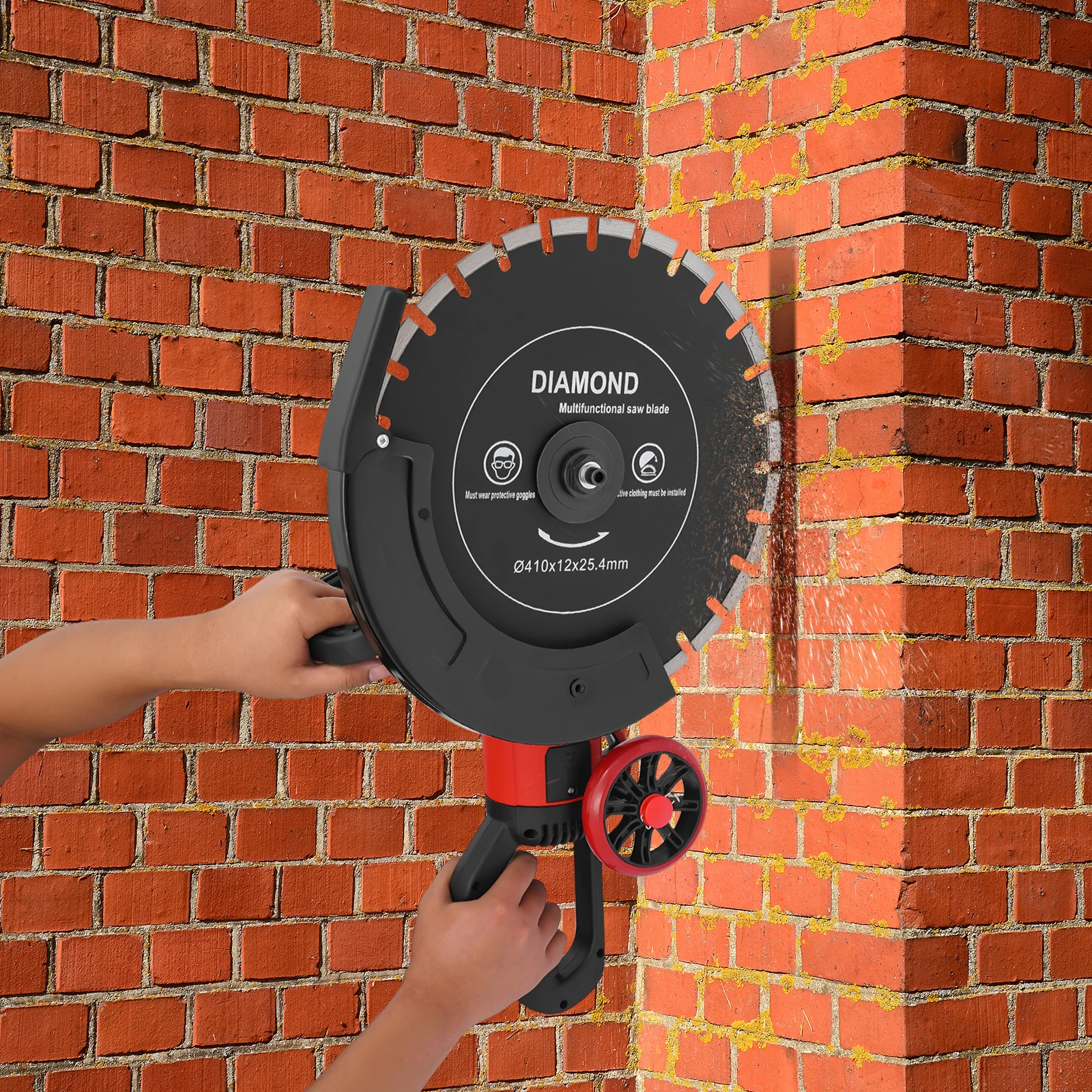

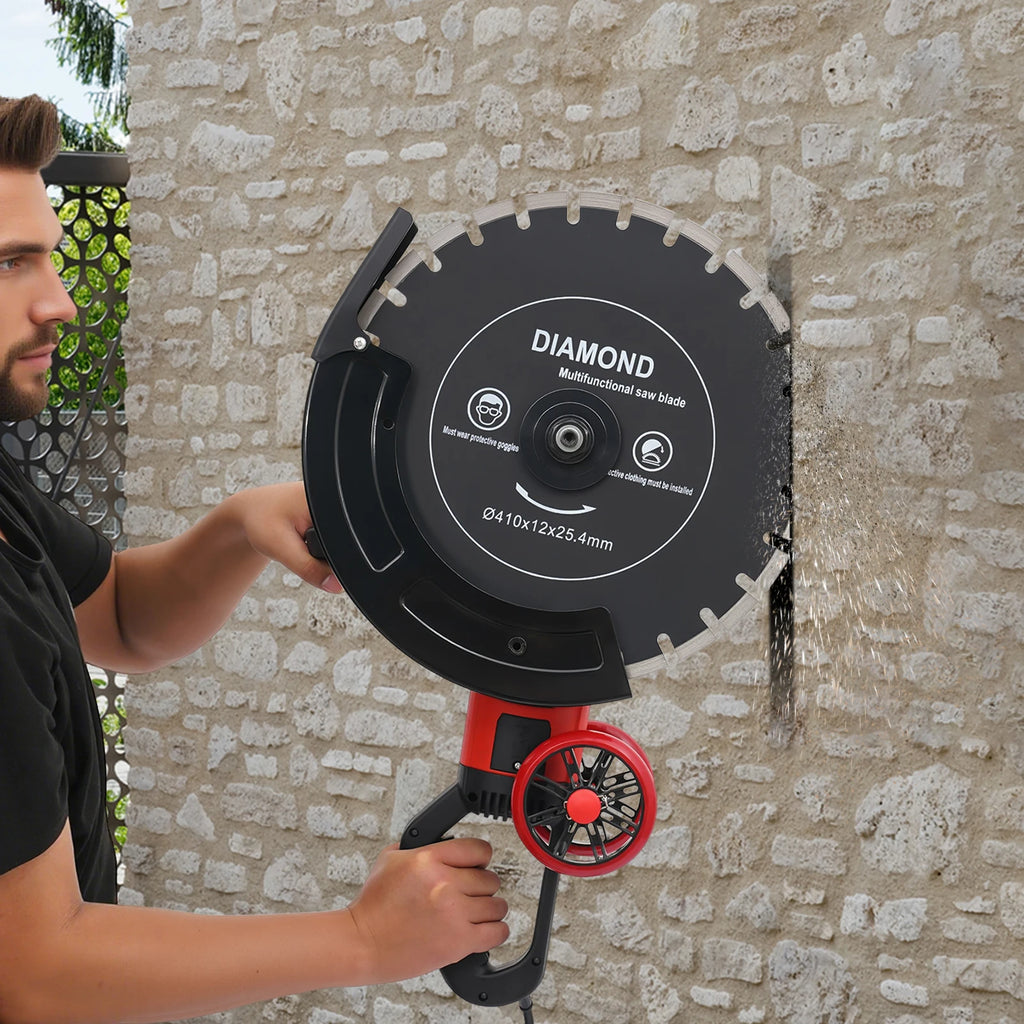

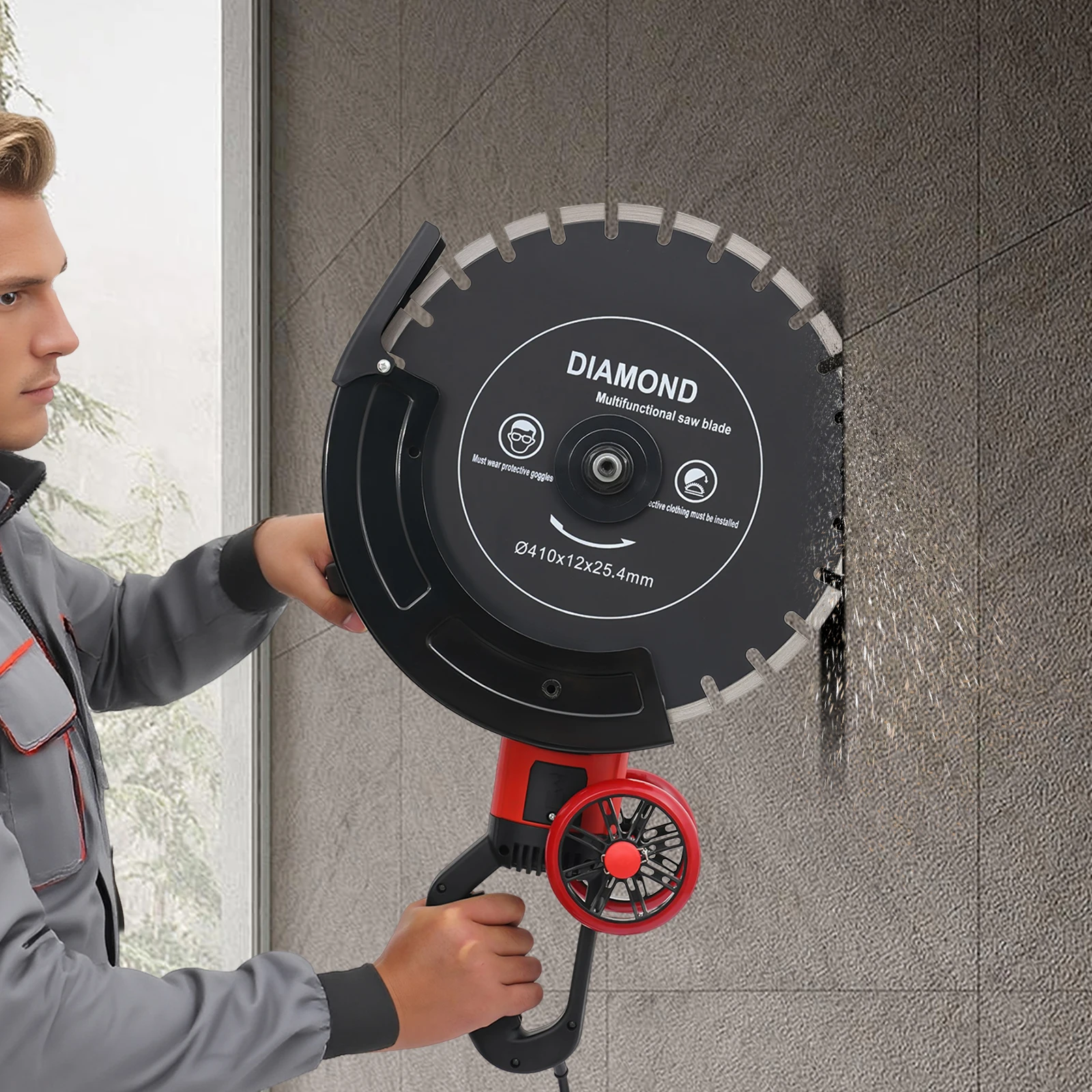

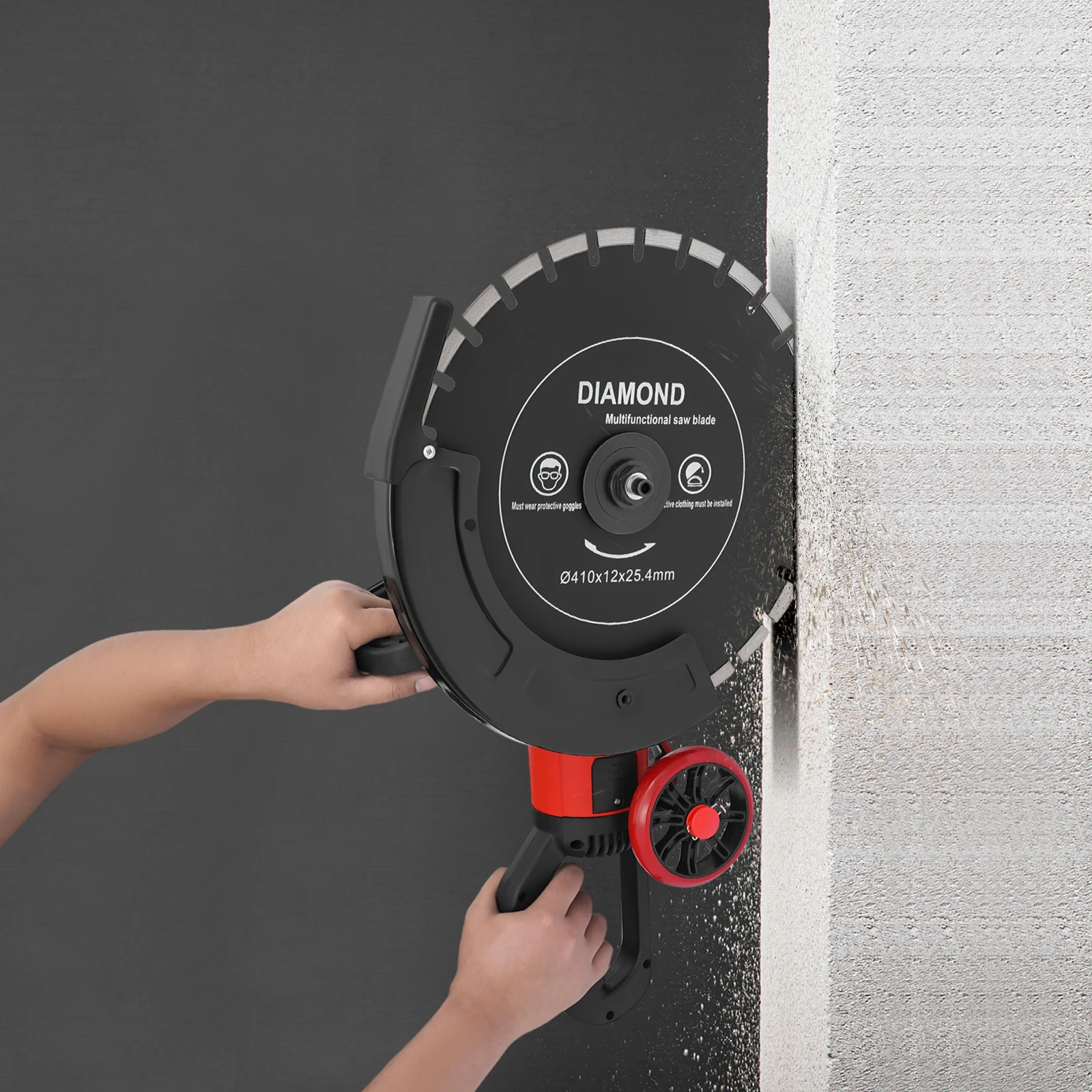

3. When cutting walls vertically, please make sure the head is facing down so that water does not enter the motor and burn it. Please operate the machine from up to down when grooving, it will be easier to save energy while protecting the motor.

4. Please regularly check whether the carbon brushes are wear and tear, and replace the carbon brushes in time when the sparks are large.

5. When cleaning the head, please avoid water entering the body through the vent.

6. Please note that the pump should not be pumped empty for a long period to avoid damaging the pump core.

7. Please allow the slight color difference caused by the shooting light and the 1-3 cm error due to manual measurement, and make sure you do not mind before ordering.
