Solar Panel Monocrystalline Solar Panel 120 W 18 V for 12 V Batteries, Photovoltaic, Solar Cell Solar System, PV Solar System

East Supplier PlatformSKU: 1005008615475049-240w solar panel-spain

Color: 240w solar panel
価格:
$204.32

税込み 送料計算済み チェックアウト時

在庫:
在庫あり

説明

SPECIFICATIONS

Brand Name: JINGYANGPV

Certification: CE

Flexible Solar Panel: Yes

Foldable Solar Panel: No

High-concerned chemical: Urethane (Ethyl carbamate)

Material: Monocrystalline Silicon

Max. Power: 125w

Model Number: CNMYPV120(36)M166

Module Efficien: 24%

Nominal Capacity: 120w

Number of Cells: 36PCS

Number of Panels: 1

Origin: Mainland China

Rigid Solar Panel: Yes

Size: 1050mm*530mm*30mm or 970mm*530mm*30mm

Type: Solar Panel

is_customized: Yes


Advantages of JINGYANG Tempered solar panels:

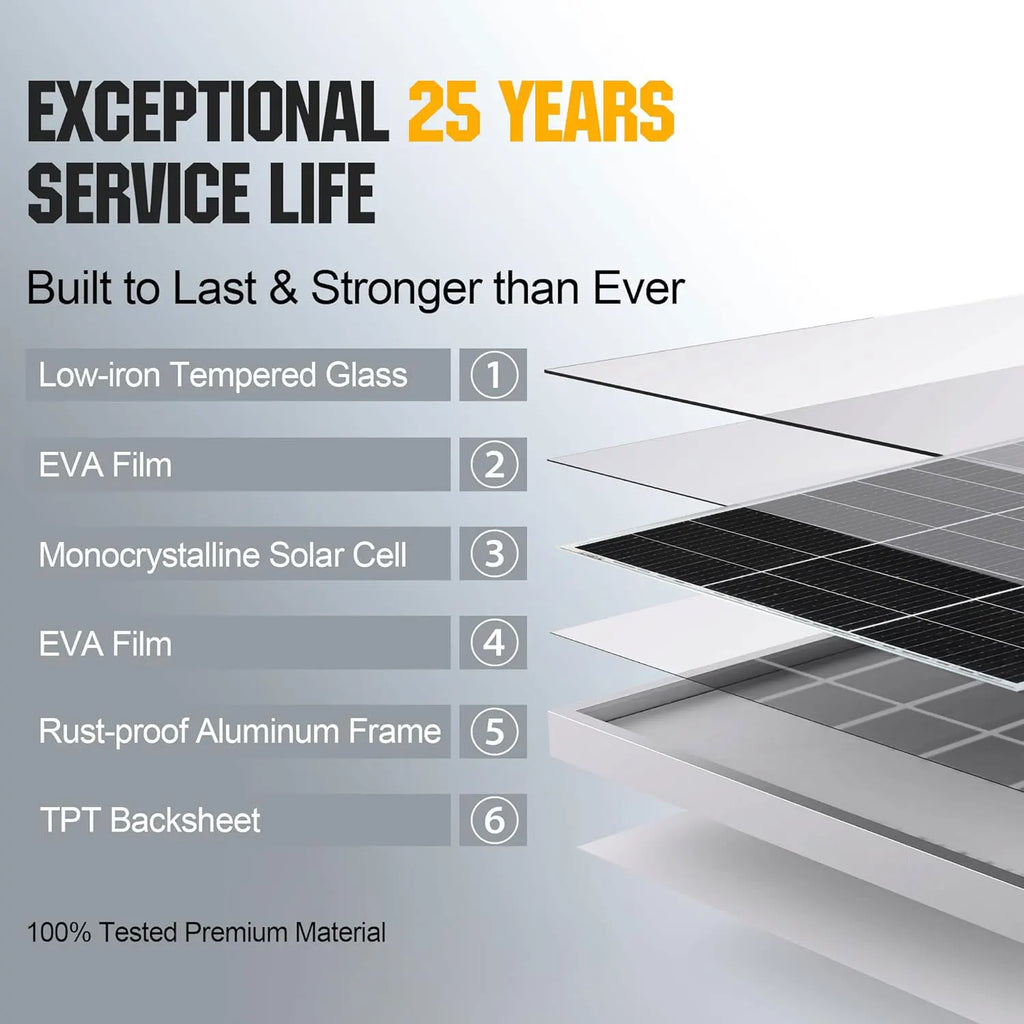

Multi-layer sheet package, sturdy and durable, good heat dissipation. No hot spots will appear.

The aluminum frame is corrosion resistant and is suitable for both indoor and outdoor use.

With a service life of more than 25 years, it is 3-4 times that of ordinary flexible solar panels. It is the best choice for motorhomes and families. It has a very high cost performance and is the best choice for home energy investment.

Product description:

The surface is tempered glass, waterproof, snowproof, resistant to small hail.

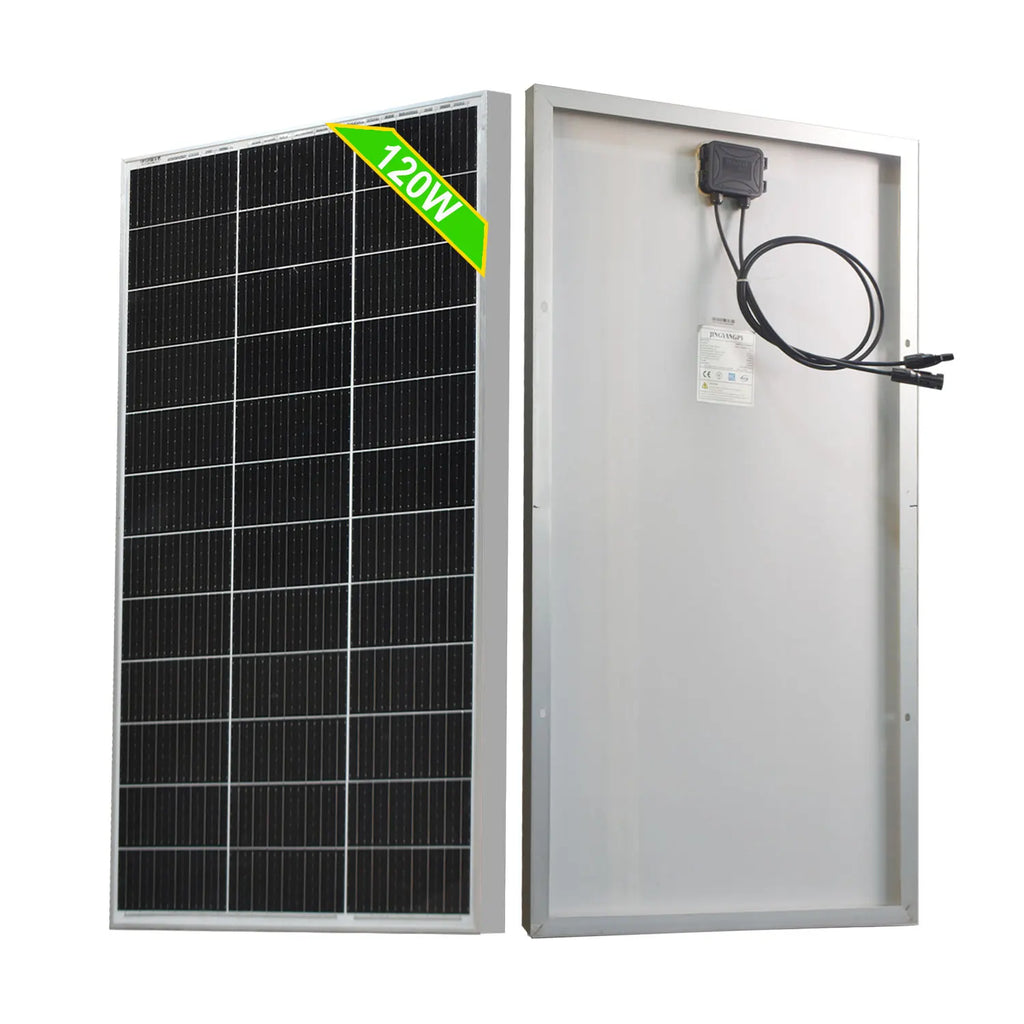

Diodes are pre-installed in junction box and a pair of 24-inches cables with connectors comes with the panel automatically

The back has 8 drill hole that can be quickly installed.

Model:CNMYPV120(36)M166
Material:Monocrystalline silicon
Maximum Power(Pmax):120W
Maximum Power Voltage(Vmp):21.5V
Maximum Power Current (Imp):5.59A
Open-Circuit Voltage (Voc): 25.4V
Short-Circuit Current (Isc):6.07A

Solar Cell: Newly 166MM*166MM Monocrystalline
Nominal Operating Cell Temp.(NOCT):-45 to 80℃
Maximum System Voltage:DC1000V
Maximum Series Fuse:10A

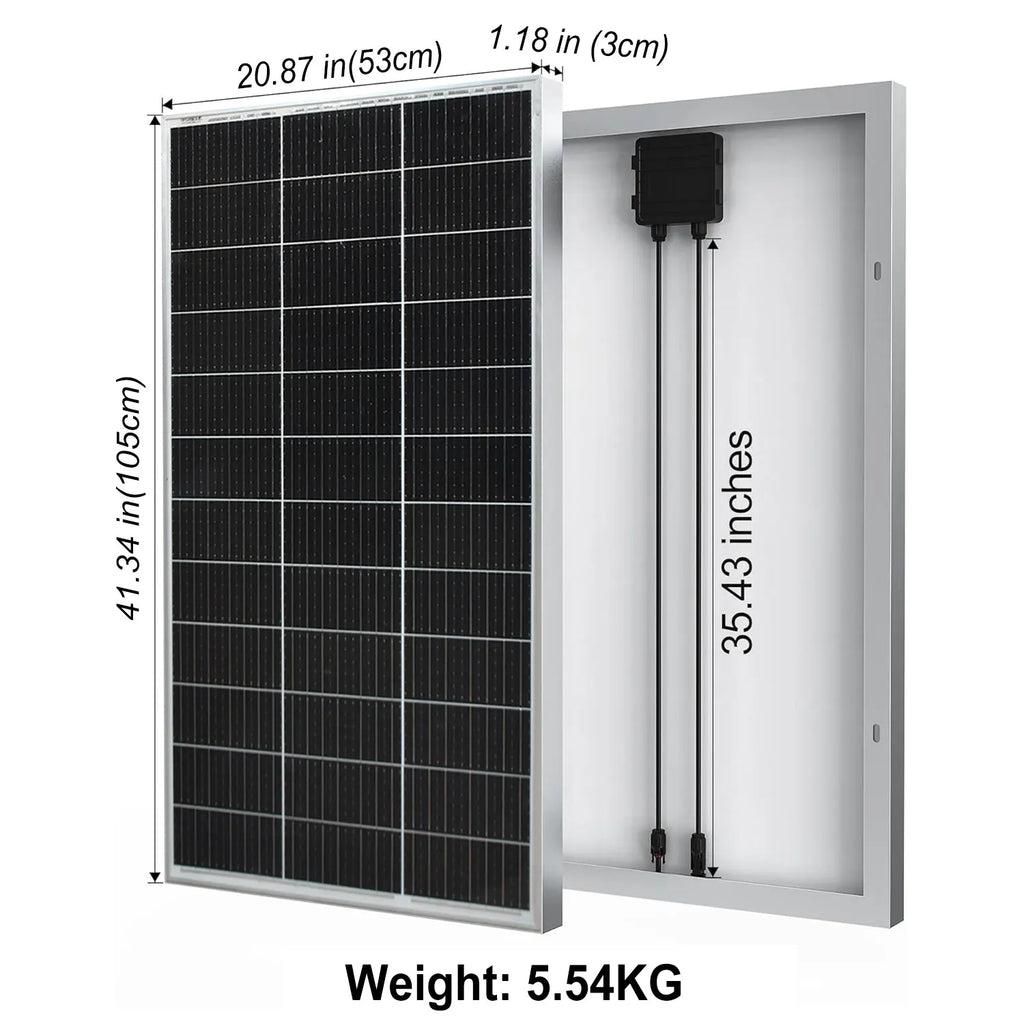

Dimension:1050*530*30mm
Product Weight: 5.85kg
(The above data is based on the laboratory standard test environment)

For field connections,use minimun No.12AWG copper wires insulated for a minimum 90℃

Standard Test Conditions:

AM=1.5 IRRADIANCE=1000W/m2 Temp.=25℃
(The size is manually measured and there is a certain error.)

5 Years Warranty, 25 Year Lifetime

Minor reduction in efficiency under partial load conditions at 25degC: at 100 W/m2, 95%- (+/-5%) of the STC efficiency (1000 W/m2) is achieved.

Extra: We keep right to change the specification of the data, and there is about ±5%deviation for all specification, pls notice this point。


Jingyang Solar Energy is an international high-tech and growing group company, established in 2009, with 10 years’ experience of solar modules manufacturing and PV power generation systems supplying. Our factory covers an area of 10,000 square meters, employing 150 peoples, with an annual production of 500MW, about USD50 million of annual production value.

Jingyang Solar Energy is mainly engaged in crystalline silicon solar cells, modules, photovoltaic systems engineering and the research, manufacturing and sales of PV application products. In the past decades, Jingyang Energy built a wide sales network in global market which covers more than 68 countries, our major target markets are Europe, USA, Southeast Asia, America, Australia, Africa, etc, Our overseas projects involves State grid solar power plant, household solar system, outside portable solar system,etc
