SPECIFICATIONS
Battery Included: Yes
Brand Name: MiLESEEY
Display Size: 2.0 - 3.9 Inches
Hign-concerned Chemical: None
Maximum temperature: 550 ℃
Minimum temperature: -20 ℃
Origin: Mainland China
Style: Handheld
Thermal pixels: 256*192

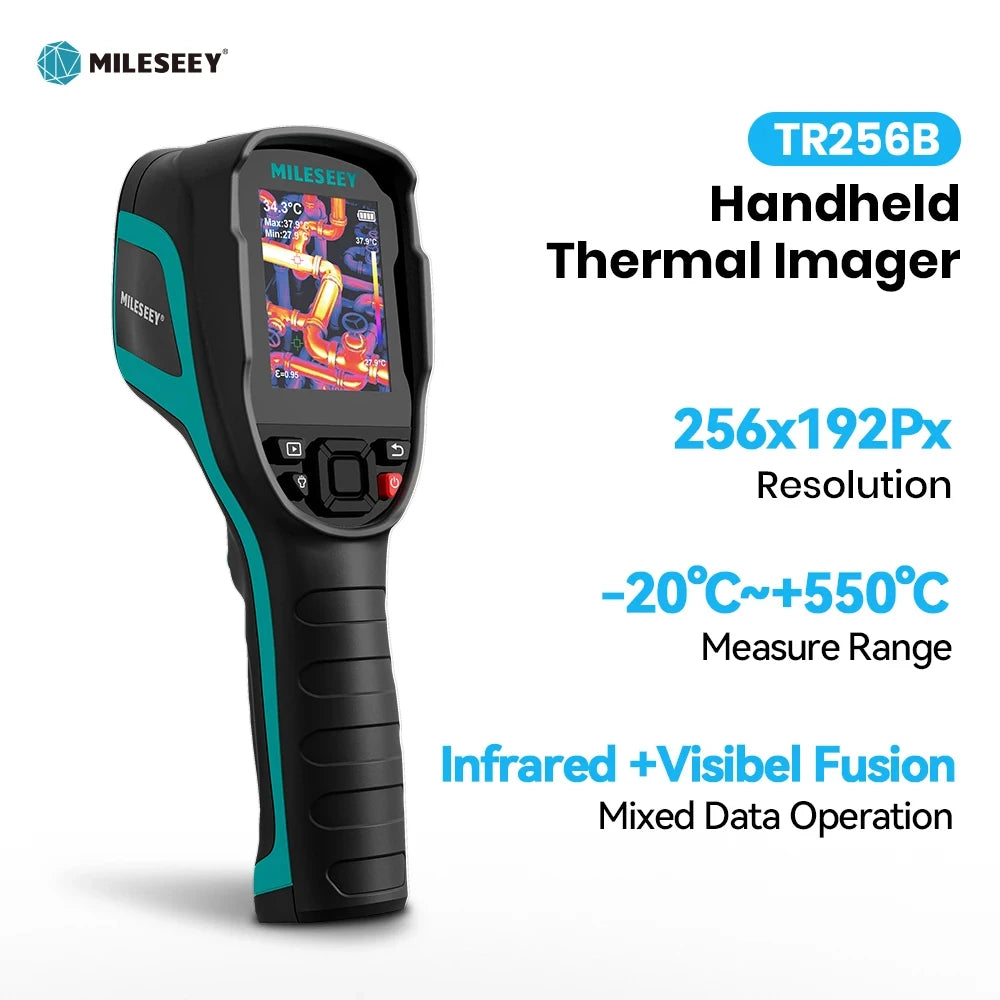

Mileseey TR256B TR256E IR Thermal Imager Camera 256*192 Resolution 7 Palettes with 2MP Visual Light 25HZ 13 Languages NETD 40mK
Model |
TR256B |
TR256E |
Temperature range |
-20℃~+550℃ |
-20℃~+350℃ |
Temperatureunit |
℃/℉/ K |
℃/℉/ K |
Temperatureresolution |
0.1℃ |
0.1℃ |
Emissivity |
0.1~1.0 Adjustable |
0.1~1.0 Adjustable |
Display |
2.8LCD (320×240) |
2.8LCD (320×240) |
Temperature Alarm |
LED flash/screen tip |
LED flash/screen tip |

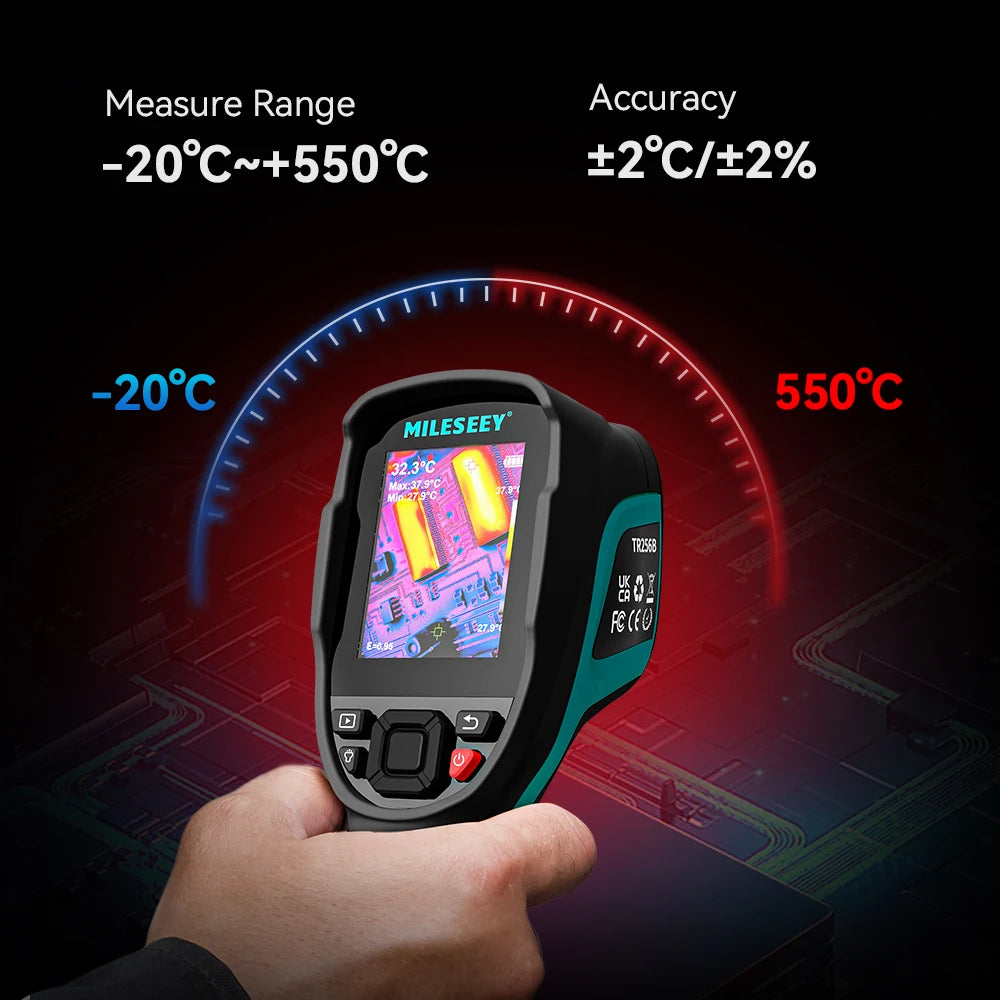

Accuracy |
±2℃/ ±2% |
±2℃/ ±2% |
Response time |
<10ms |
<10ms |

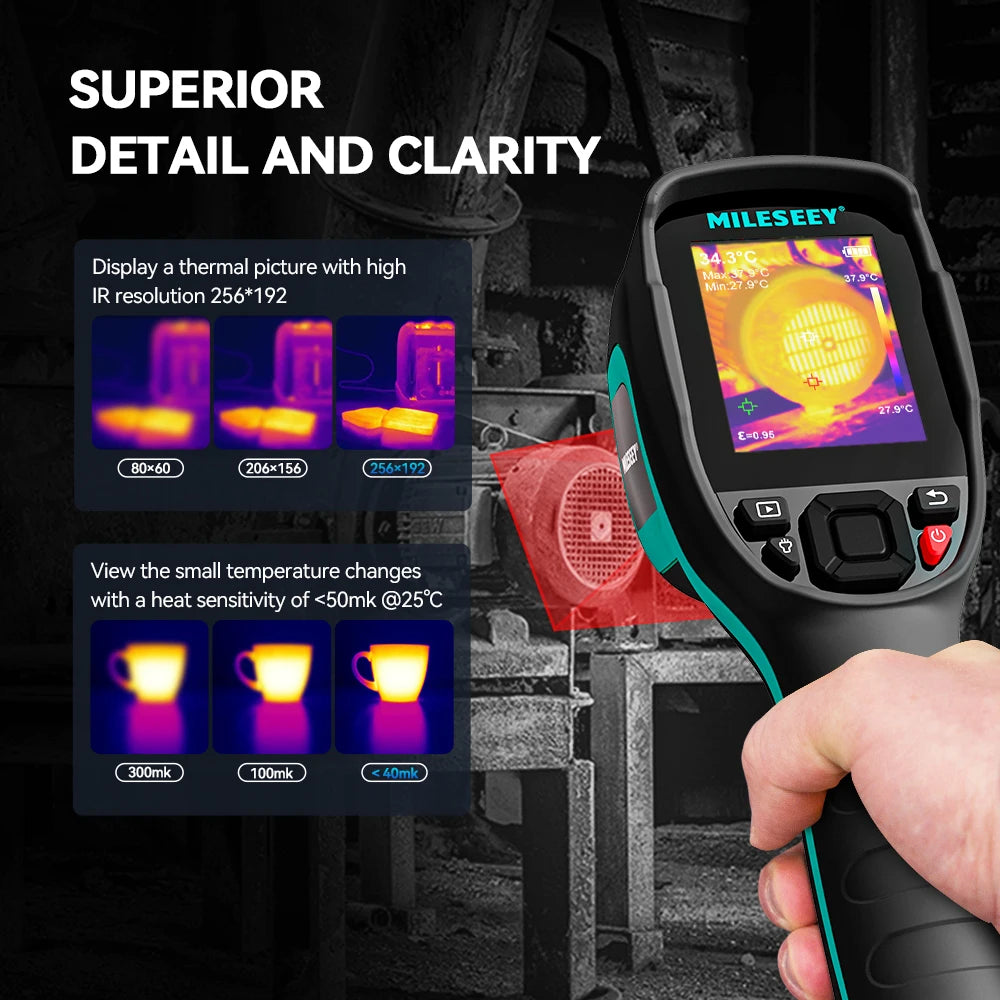

IR resolution |
256×192 |
256×192 |
Visual Resolution |
200W |
/ |

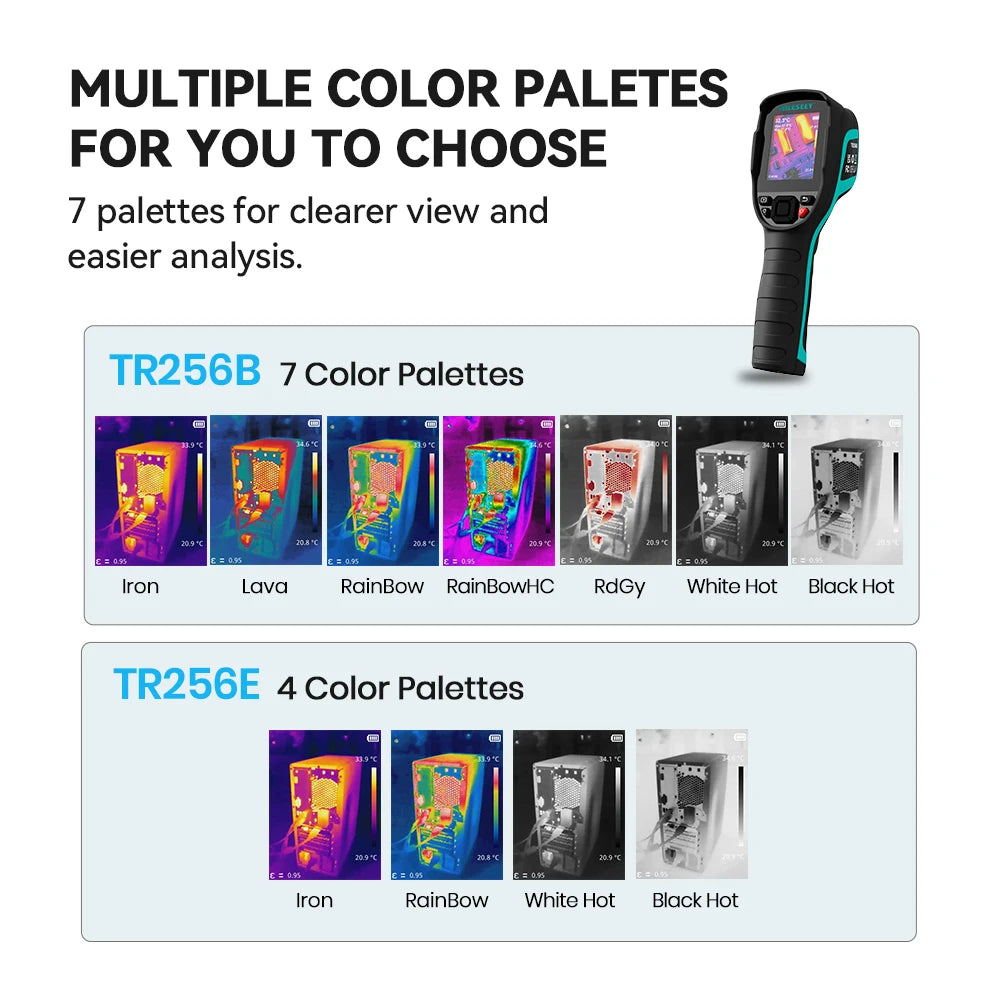

Color Palette |
White Hot,Black Hot,Iron,Lava,RainBow,RainBowHC, RdGy |
White Hot,Black Hot,Iron,RainBow |
Image mode |
IR,Fuse,PIP,Visble,Alignment |
IR |
Pixel size |
12μm |
12μm |
Infrared spectral bandwidth |
8-14μm |
8-14μm |
Field of view (FOV) |
56º×42º |
56º×42º |
NETD |
40mK |
40mK |
Focus Mode |
focus-free |
focus-free |
Frame rate |
50hz |
50hz |

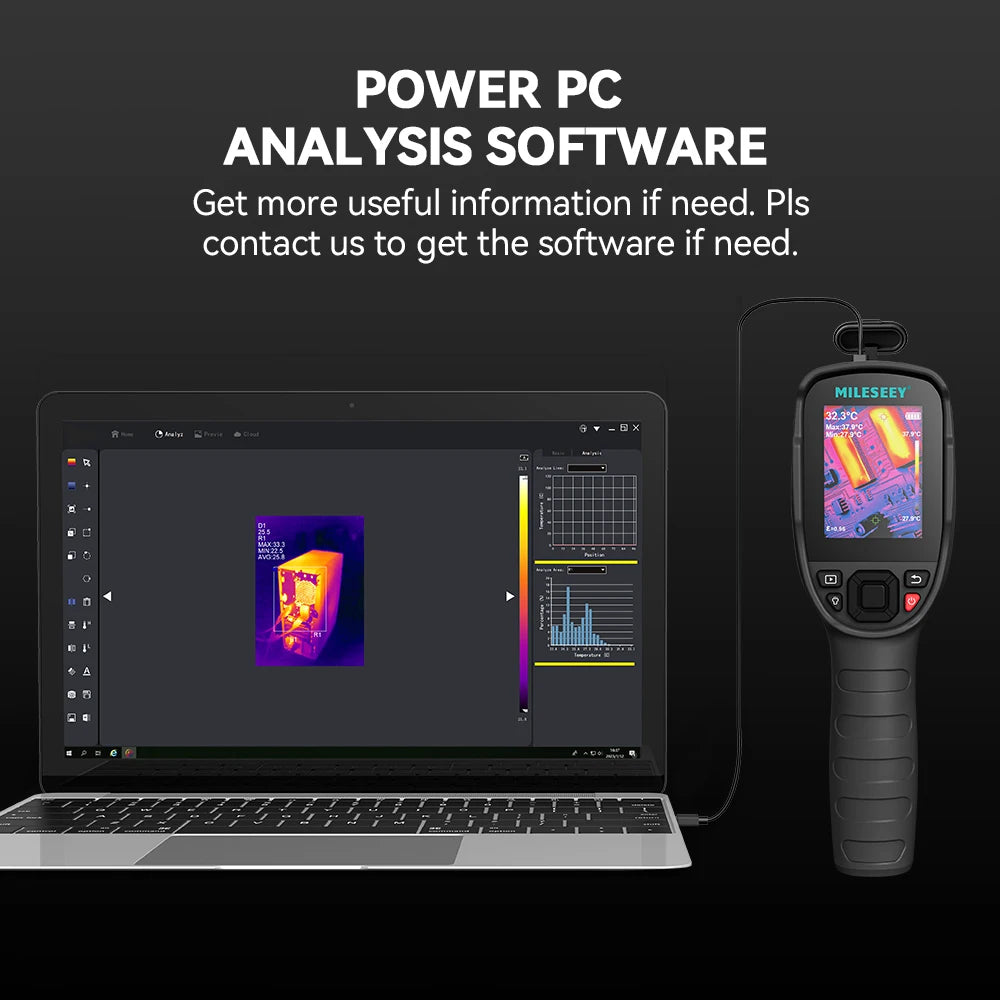

PC software |
Yes |
Yes |
Real-time image transmission |
Yes |
Yes |
USB connection |
U disk |
U disk |
Battery |
5000mah Li-ion battery 26650 |
5000mah Li-ion battery 26650 |
Battery life |
12h |
12h |
Charging time (Power off state) |
4 h |
4 h |
Charging voltage/current |
5V 1A or 5V 2A |
5V 1A or 5V 2A |
Image storage |
Micro SD Card |
Micro SD Card |
Transportation/storage environment |
’-20℃~60℃(-4℉~140℉)10%-95% RH (non-condensing) |
’-20℃~60℃(-4℉~140℉)10%-95% RH (non-condensing) |
Operating environment |
‘-10℃~50℃ |
‘-10℃~50℃ |
IP rating |
IP54 |
IP54 |
Drop test |
2M |
2M |
