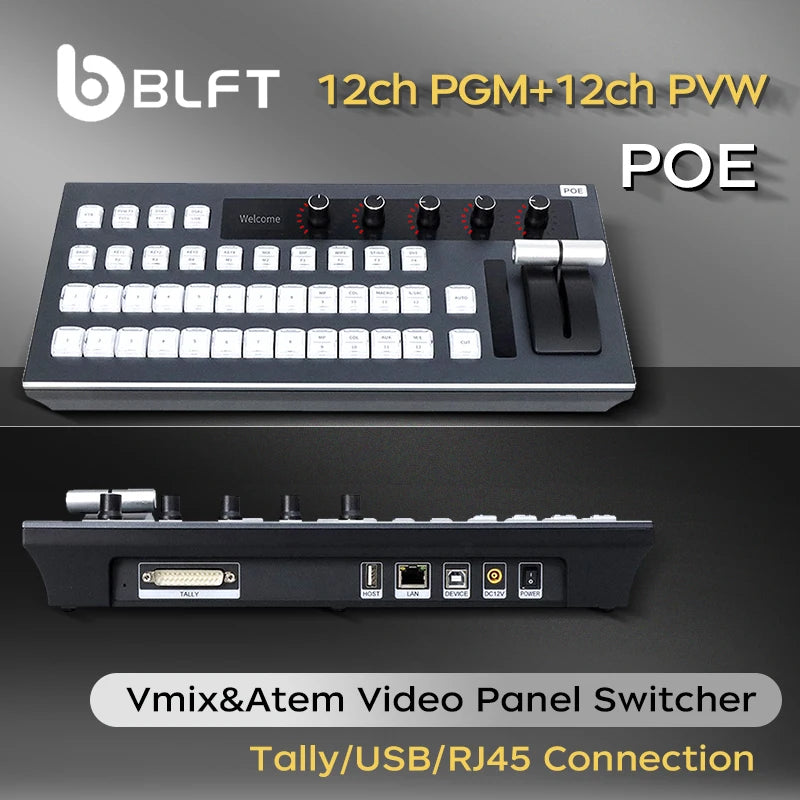

Atem controller black magic switchboard control panel livestream atem mini camera blackmagic vMix software video switcher

Risparmia 20%
East Supplier PlatformSKU:1005005292580673-China Mainland

Prezzo:
$1,614.02 $2,017.53

spese di spedizione calcolata al pagamento

Disponibilità:
Disponibile

Descrizione

SPECIFICATIONS

Brand Name: BLFT

High-concerned chemical: None

Model Number: BL-KD50X

Origin: Mainland China

Product Name: Vmix & Atem Video Switcher for Live Broadcas

Whether or Not 50Vac or 75Vdc or Higher Power Supply: Yes

Features

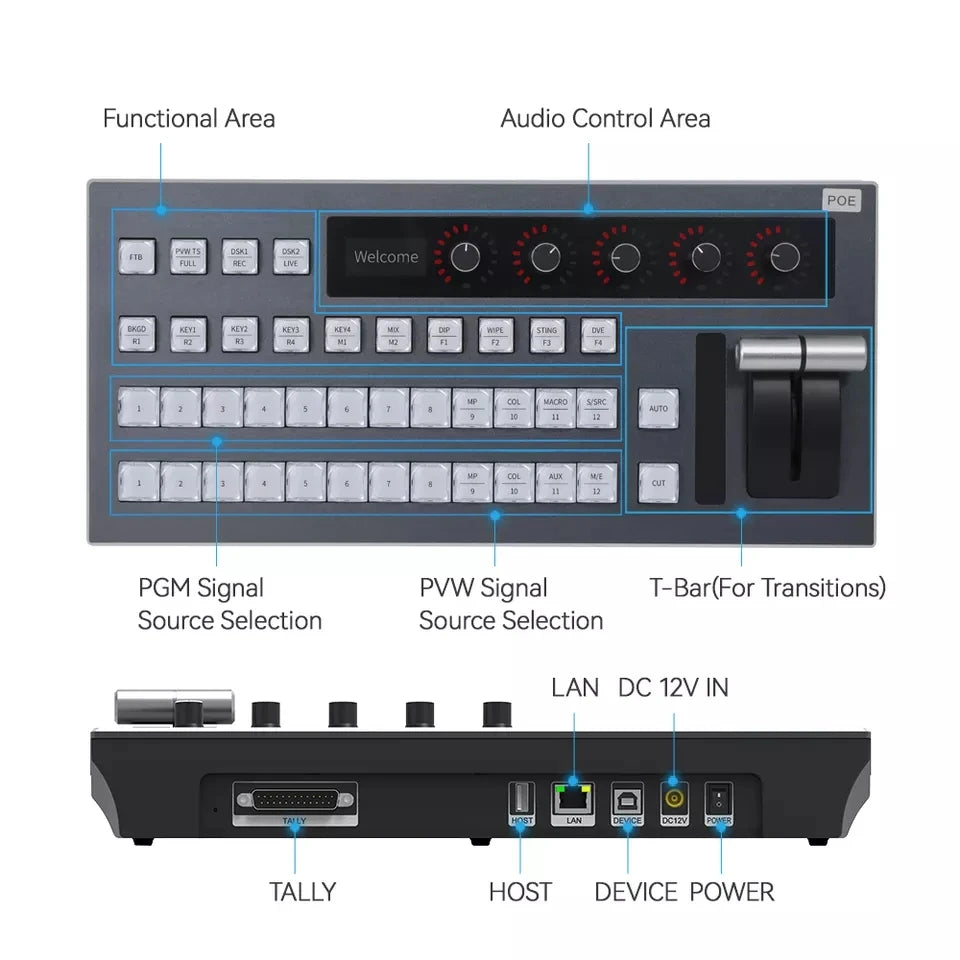

Integrated hardware design:

Easy-to-use ,fully embedded system with simplified structure, integrating director switching, audio adjustment and special effects & transitions all in one.

Brand-new upgrade function, custom combination to play more effects:

The brand-new upgrade ATEM function supports quick operation of ATEM popular functions such as S/SRC, MACRO, AUX, M/E, etc., and supports custom function settings to output.

Supports up to 12 channels of live video switching:

ATEM support conventional 8-channel PGM+8-channel PVW live switching, other live software supports up to 12-channel live switching.

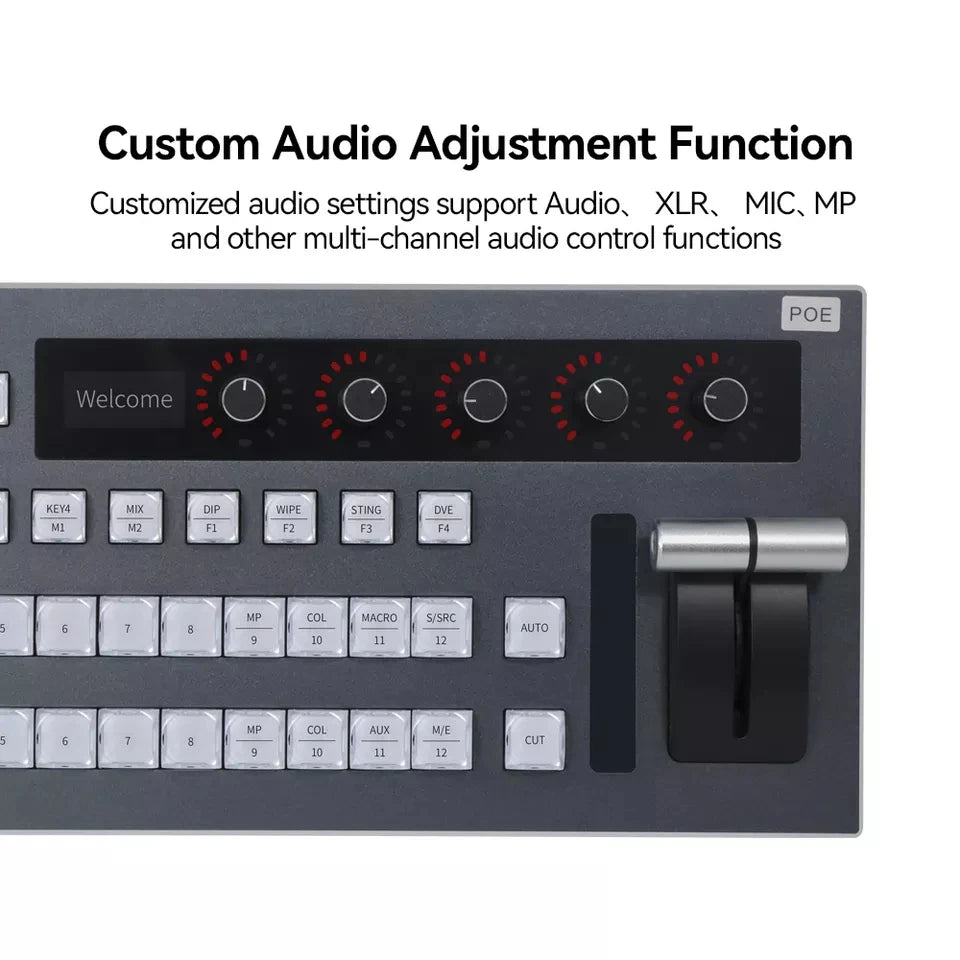

Built-in custom audio adjustment function:

Customized audio settings support Audio、 XLR、 MIC、MP and other multi-channel audio control functions.

Compatible with plenty of live broadcast software:

In addition to supporting ATEM series devices, it also supports MIDI protocol,compatible with Vmix and other various live broadcast software.Complete the control of functions such as directing, transitions, tuning, one-key black screen, etc.,multi-purpose machine is more worry-free.

Support 24-channel tally output function:

Built-in DP25 tally interface, supports up to 24 tally signal output functions.

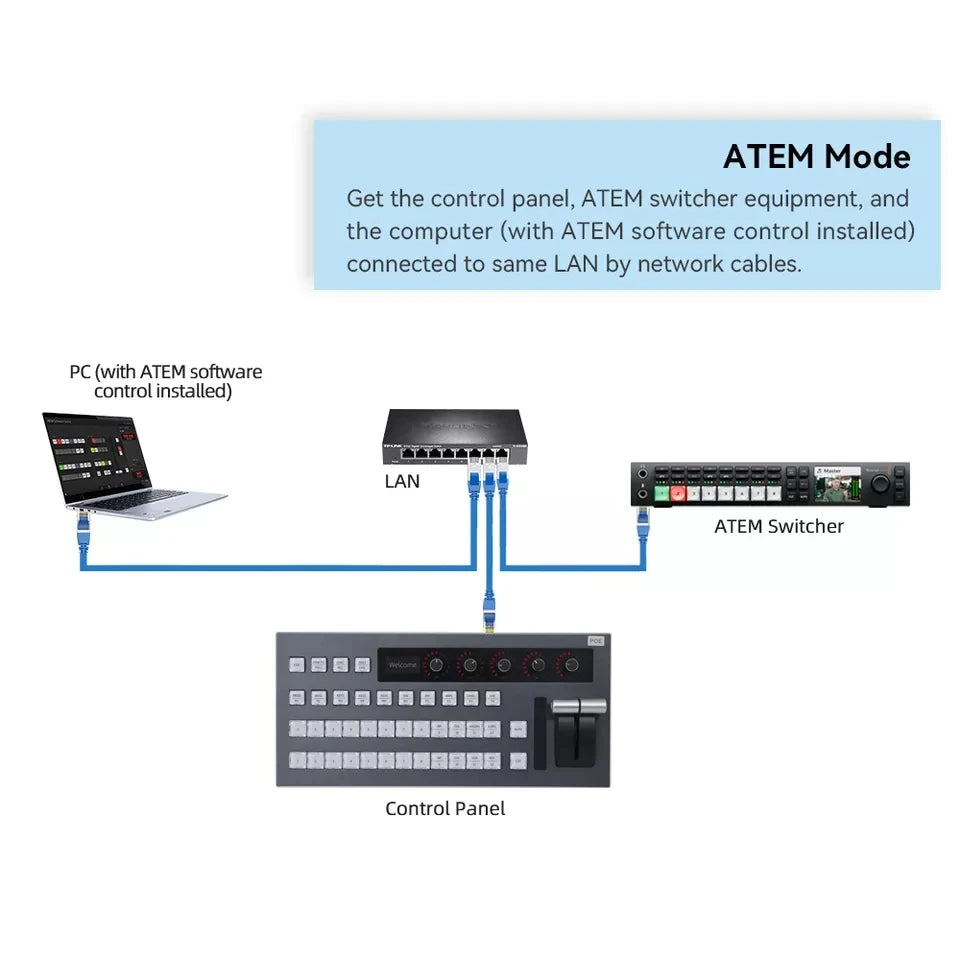

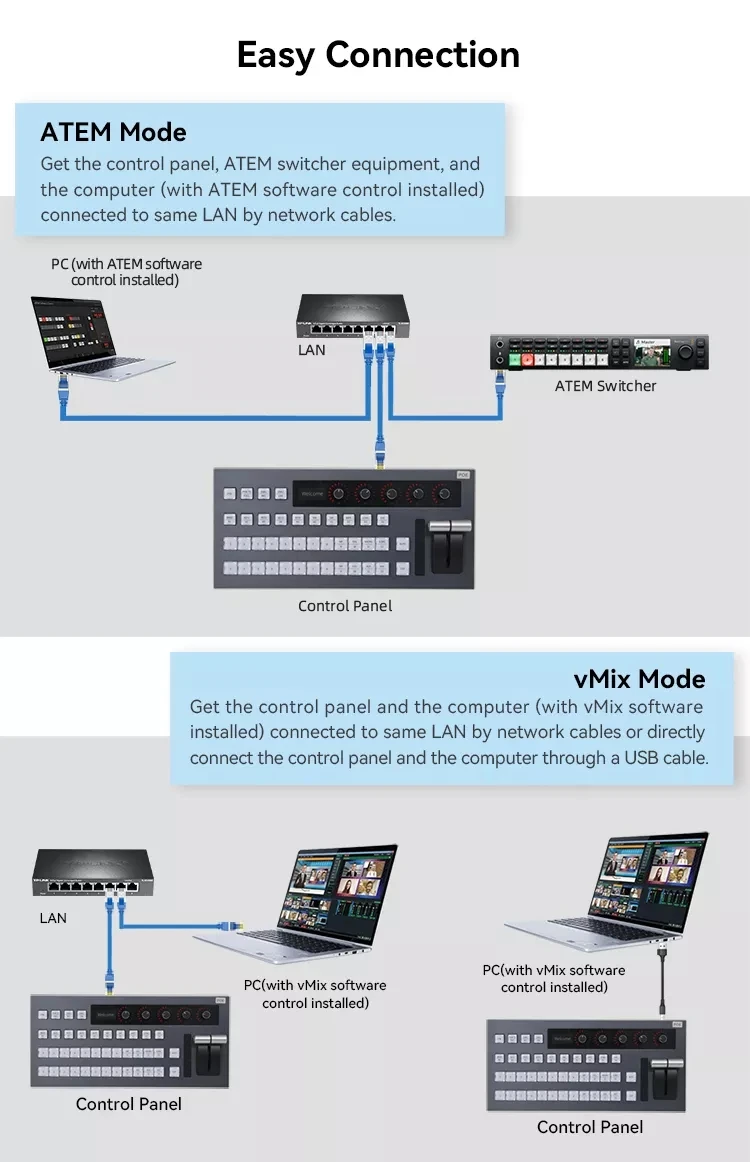

USB 2.0, LAN dual interface connections, simple and convenient:

Supports LAN and USB 2.0 drive-free connections ( Note: ATEM only supportsLAN connection ), and can transmit video signals to computers and live videoproduction software without a capture card, simple and convenient.

All aluminum alloy body:

Anodized aluminum alloy panel process treatment, outstanding quality.

Specifications

Main Parameters

Audio Control

1ch master+4ch input

Transition Control

Auto transitions, hard cuts, T-Bar

OLED Display

Set device parameters

Indicator Light

Indicate switcher status

Tally

12ch PGM+12ch PVW

ATEM Functions:

Connection Method

100M LAN,support POE 802.3af

Video Control

8ch inputs + 1ch COL + 1ch MP

Transition Effects

MIX / DIP / WIPE / STING / DVE

Upstream Keyboard

BKGD / KEY1 / KEY2 / KEY3 / KEY4

Downstream Keyboard

DSK1 / DSK2

FTB

Support

PREV TRANS

Support

MACRO

Support

S/SRC

Support

M/E

Support

AUX

Support

Vmix Functions:

Connection Method

100M LAN,support POE 802.3af

Video Control

12ch inputs

Transition Effects

4 kinds

Picture-in-picture Function

R1 / R2 / R3 / R4

Playback Setting

M1 / M2

REC

Support

LIVE

Support

T-BAR

Support

Power Supply

Input Voltage

DC 12V

InputCurrent

0.3A

Rated Power

4W

POE

POE 802.3af for optional

Powered by USB

Support ( rely on the USB power supply capability of the computer )

Others

Use Environment

Indoor

Operating Temperature

-10℃~40℃

Storage Temperature

-20-60

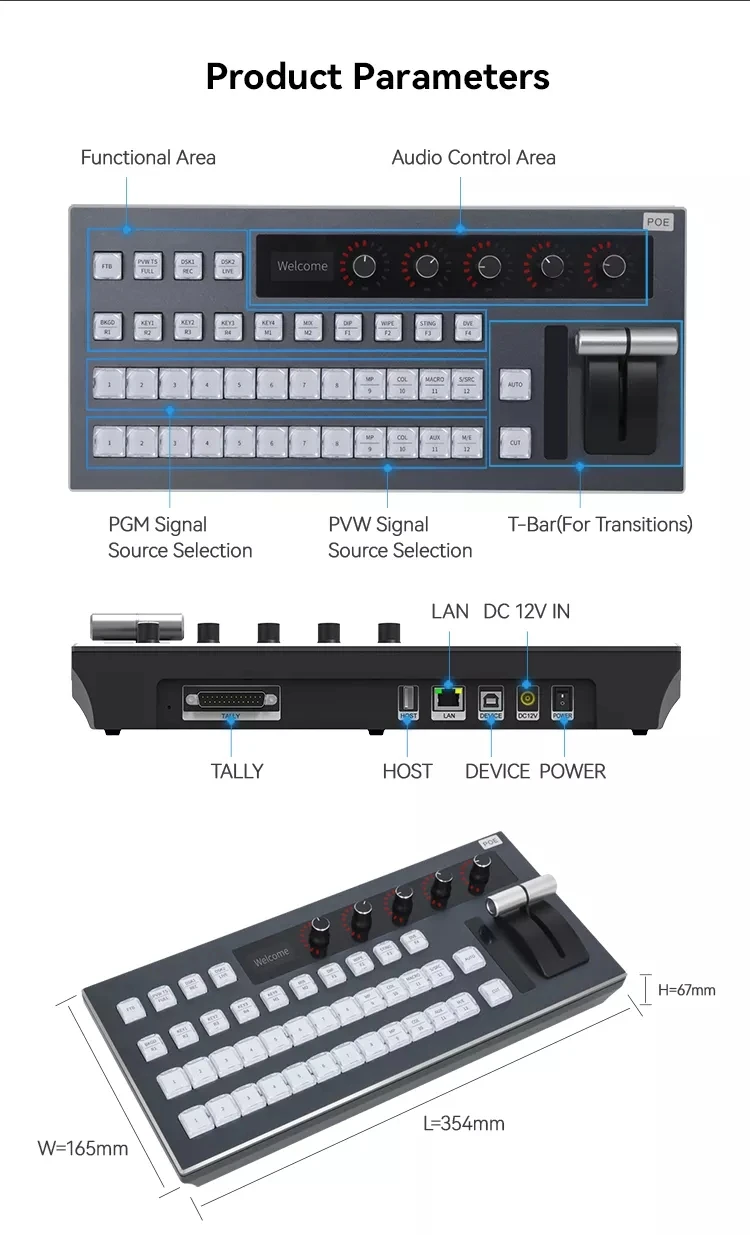

Dimensions

(L)354*(W)165*(H)67mm

Weight

1.5Kg

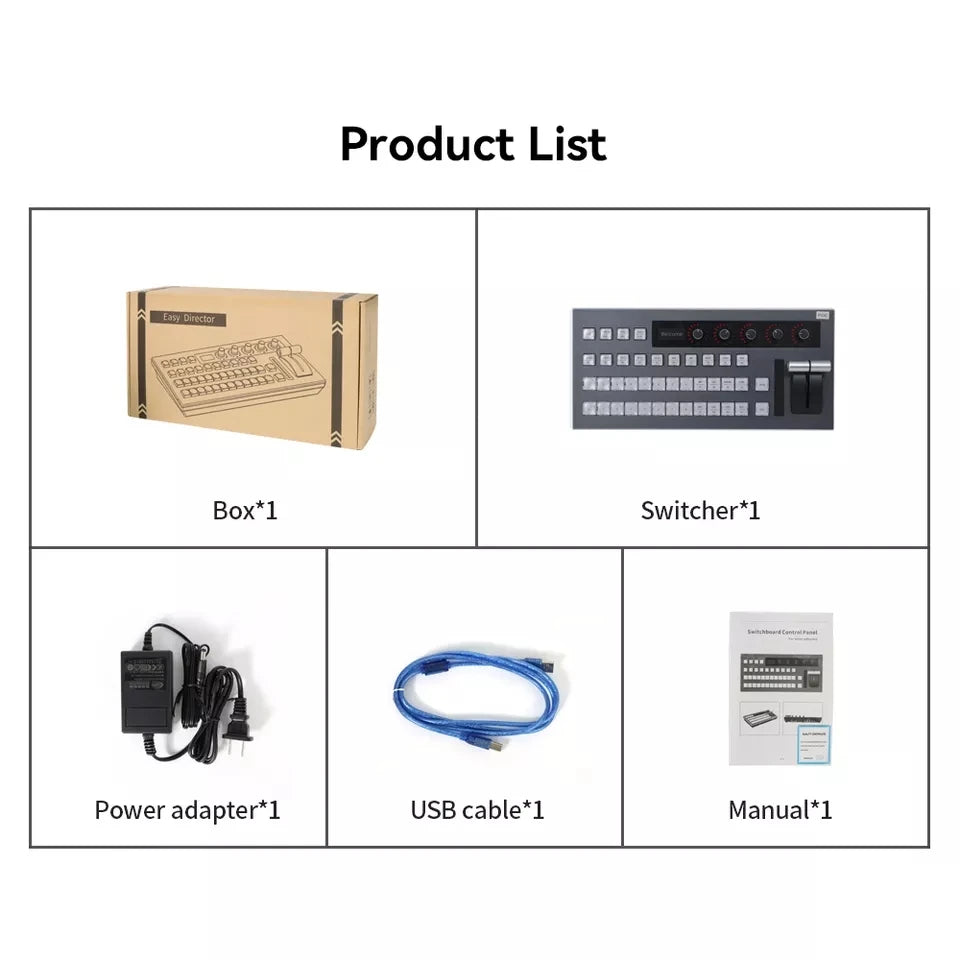

Accessories

Power adapter*1, USB cable*1, User manual*1
