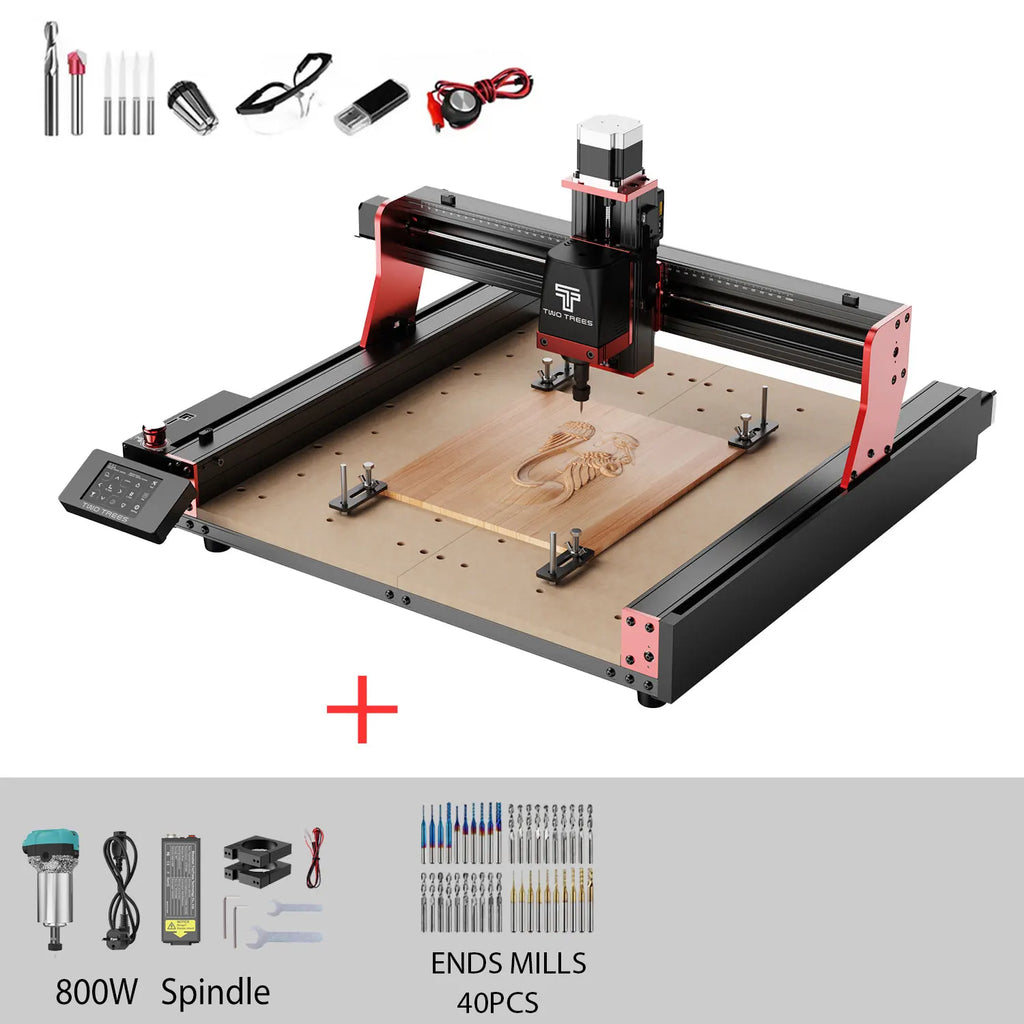

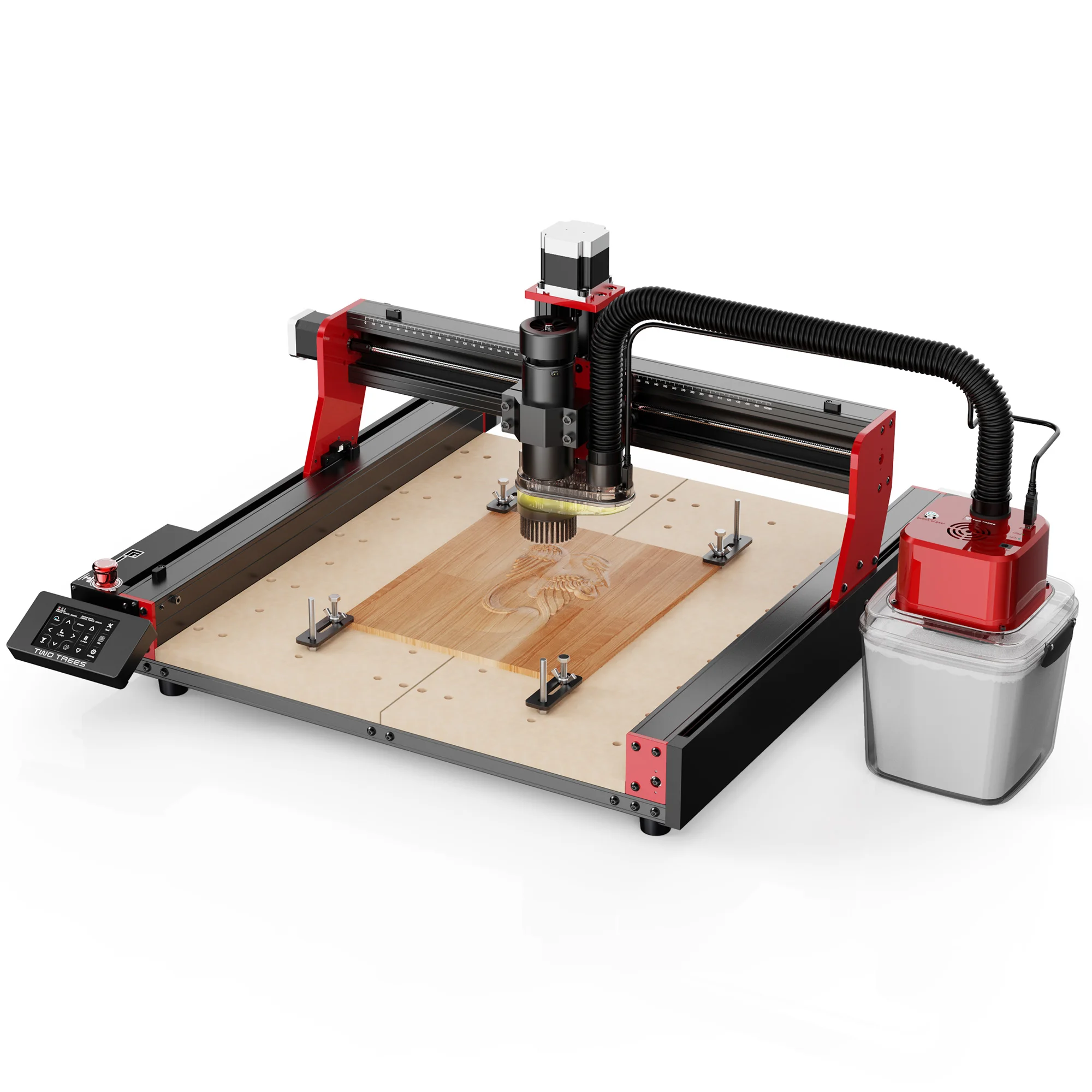

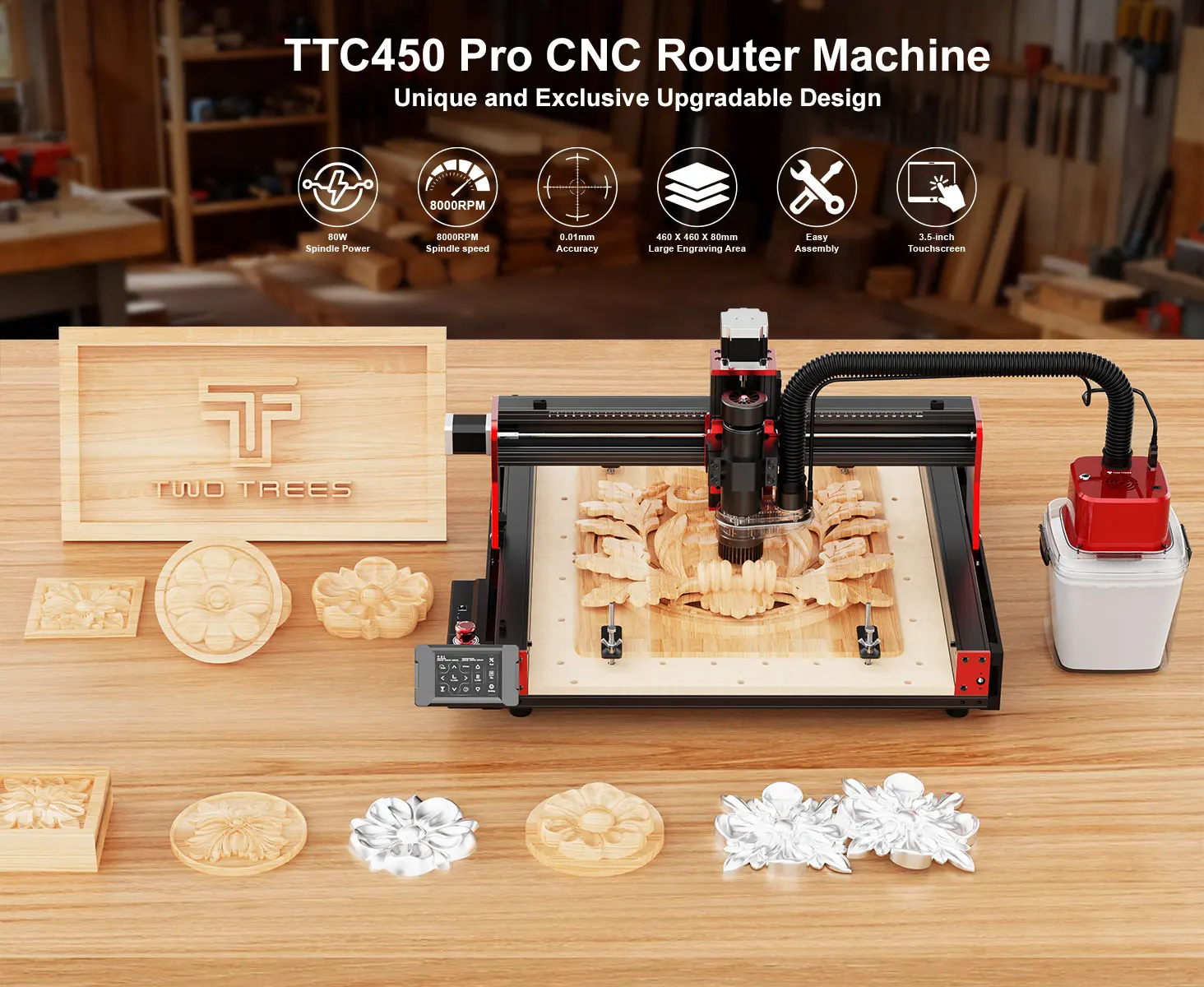

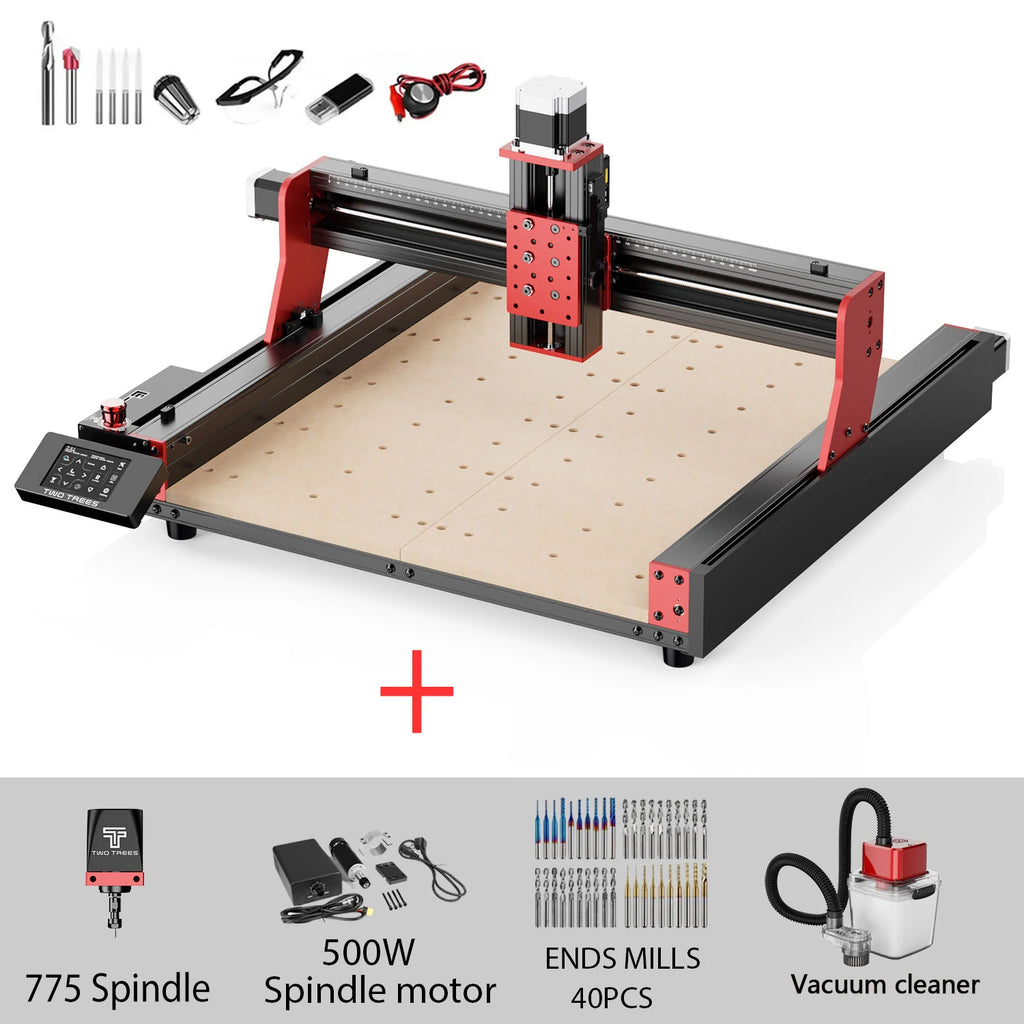

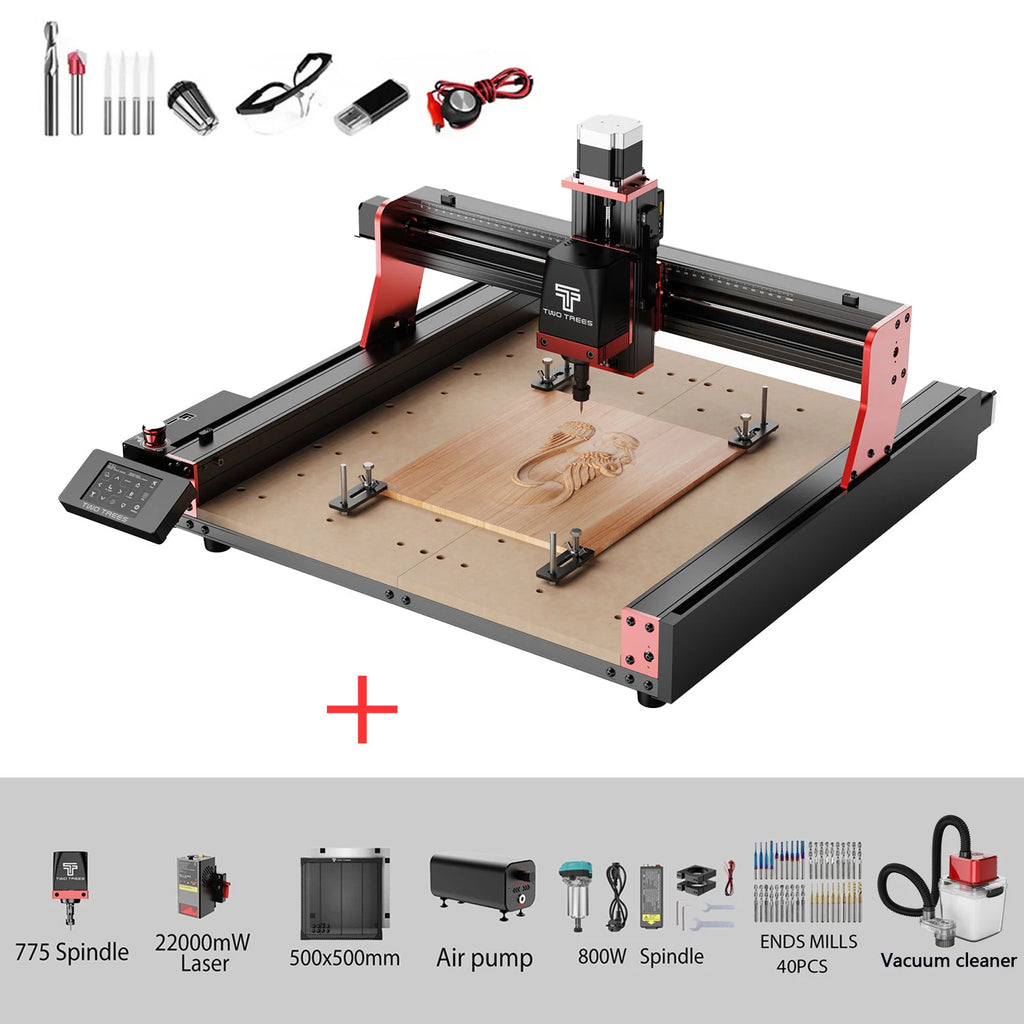

Twotrees TTC450 PRO CNC Router Machine 4-Axis 90% Assembled CNC Woodworking Laser Engraving Cutting wood Metal GRBL Control

Product characteristics

Structure Upgrade: XYZ limit switches are fully upgraded to ensure safe operation, while the X-axis CNC plate is thickened to 8mm to enhance durability and stability.

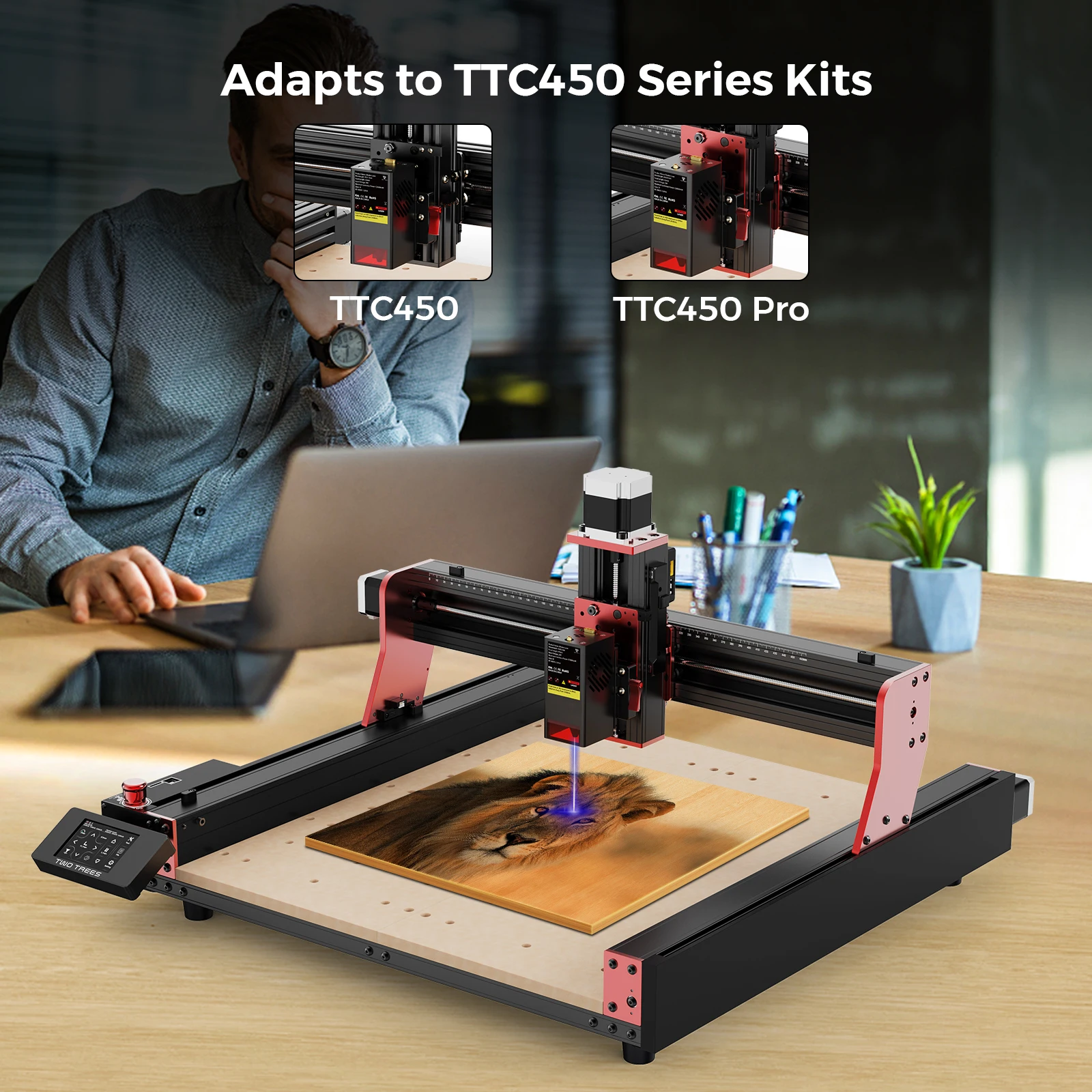

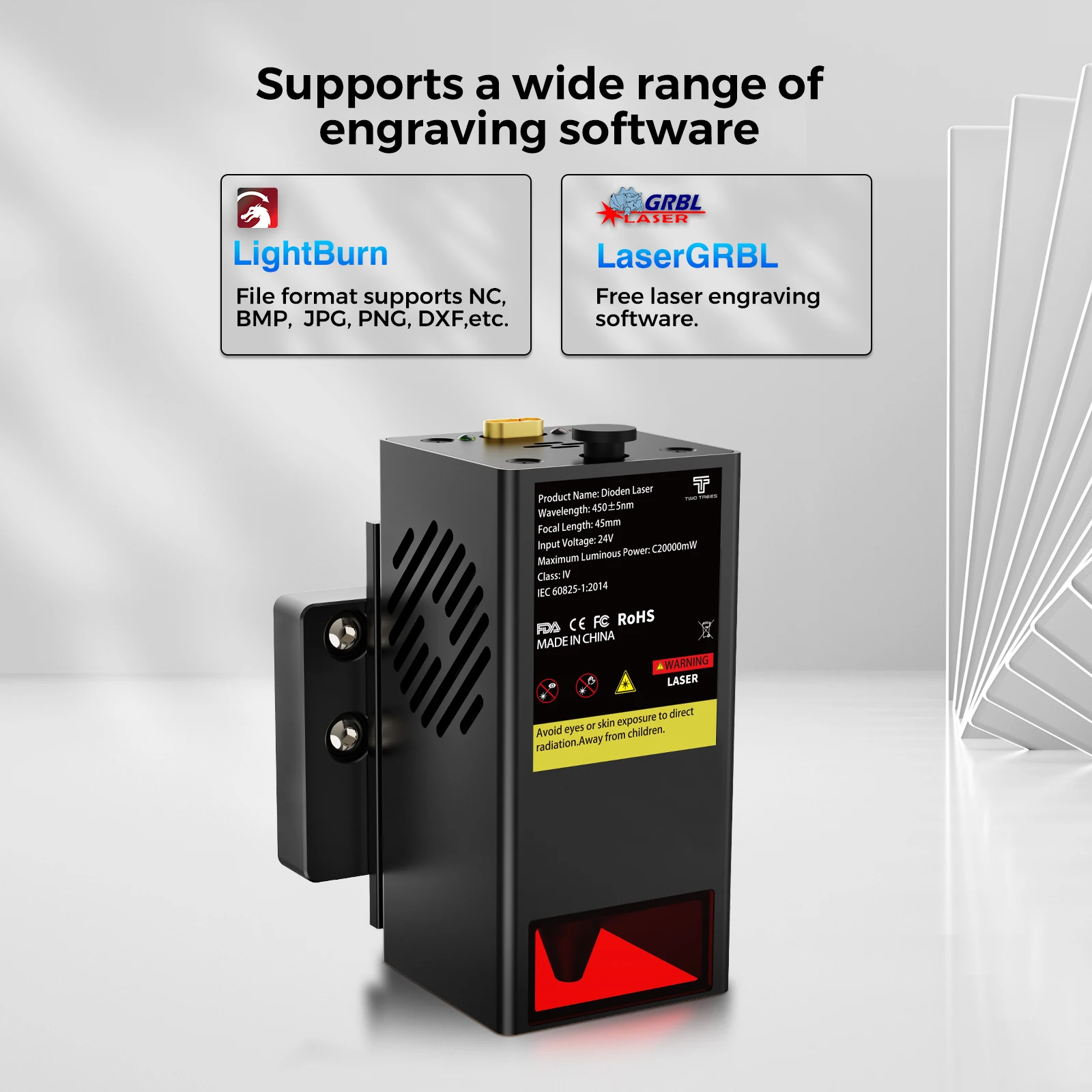

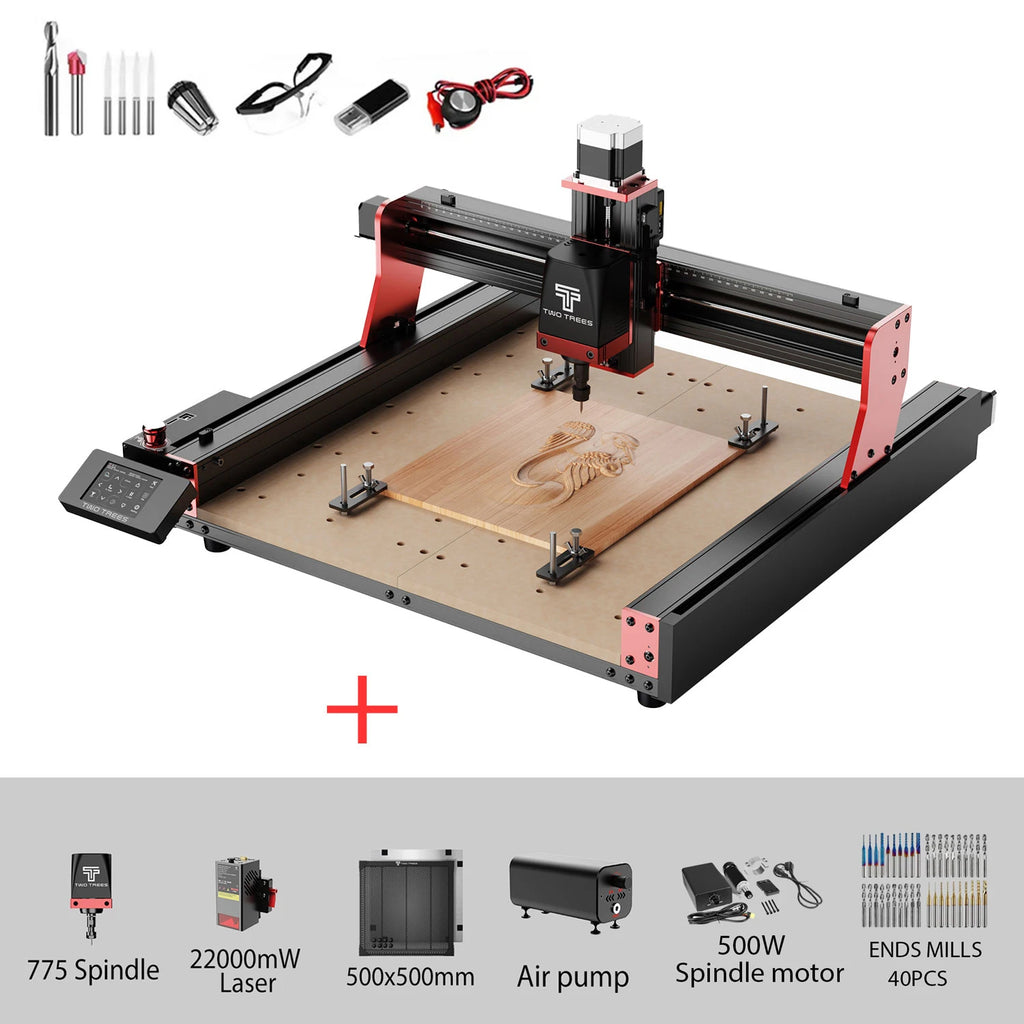

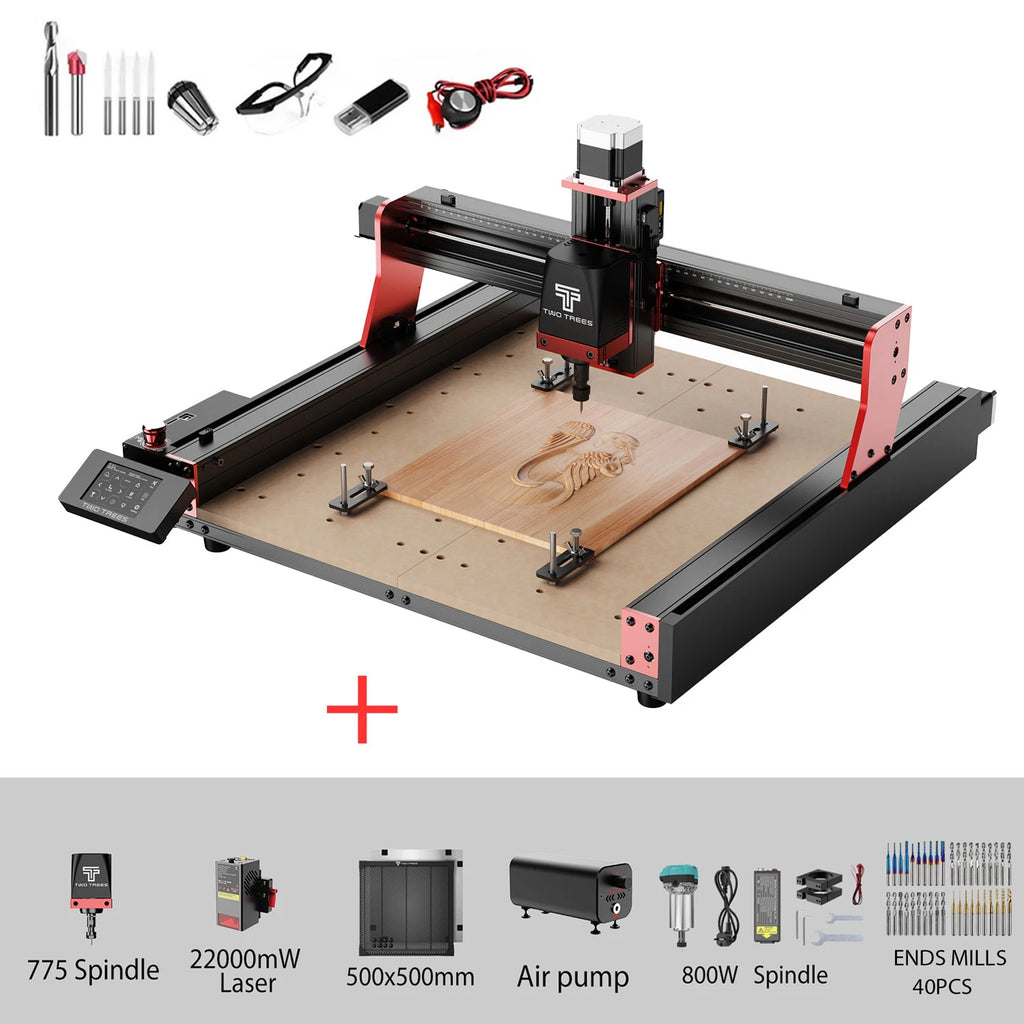

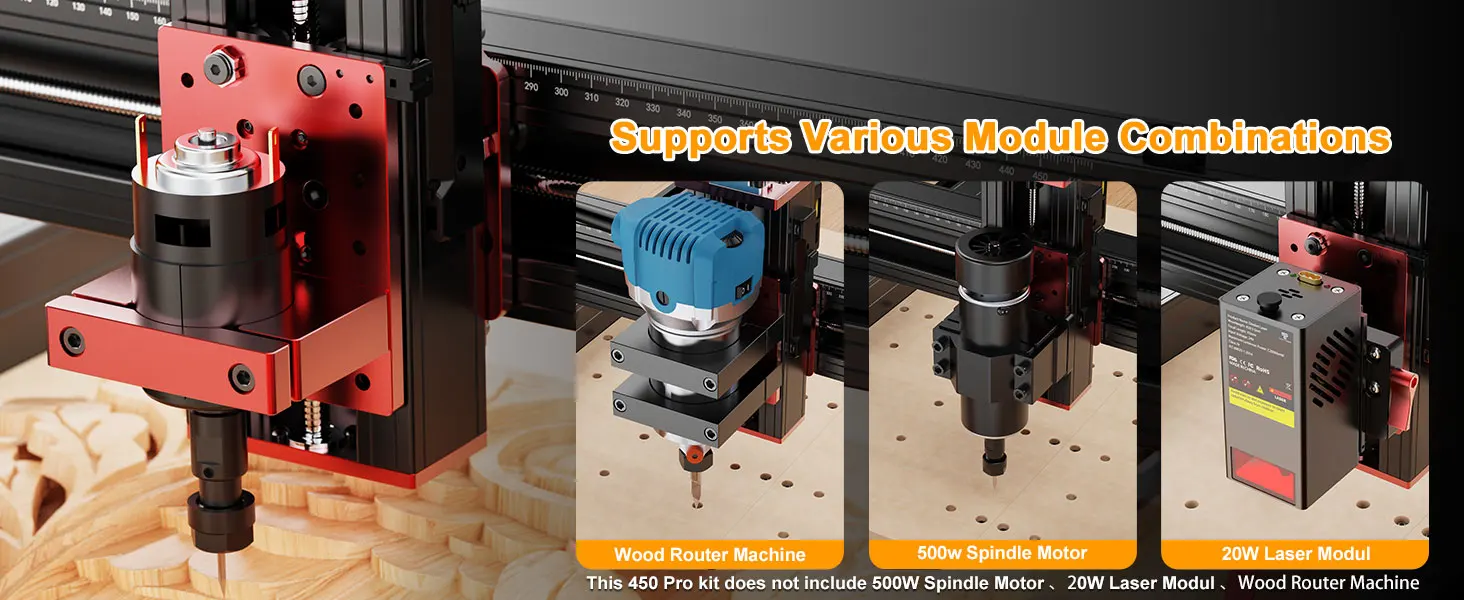

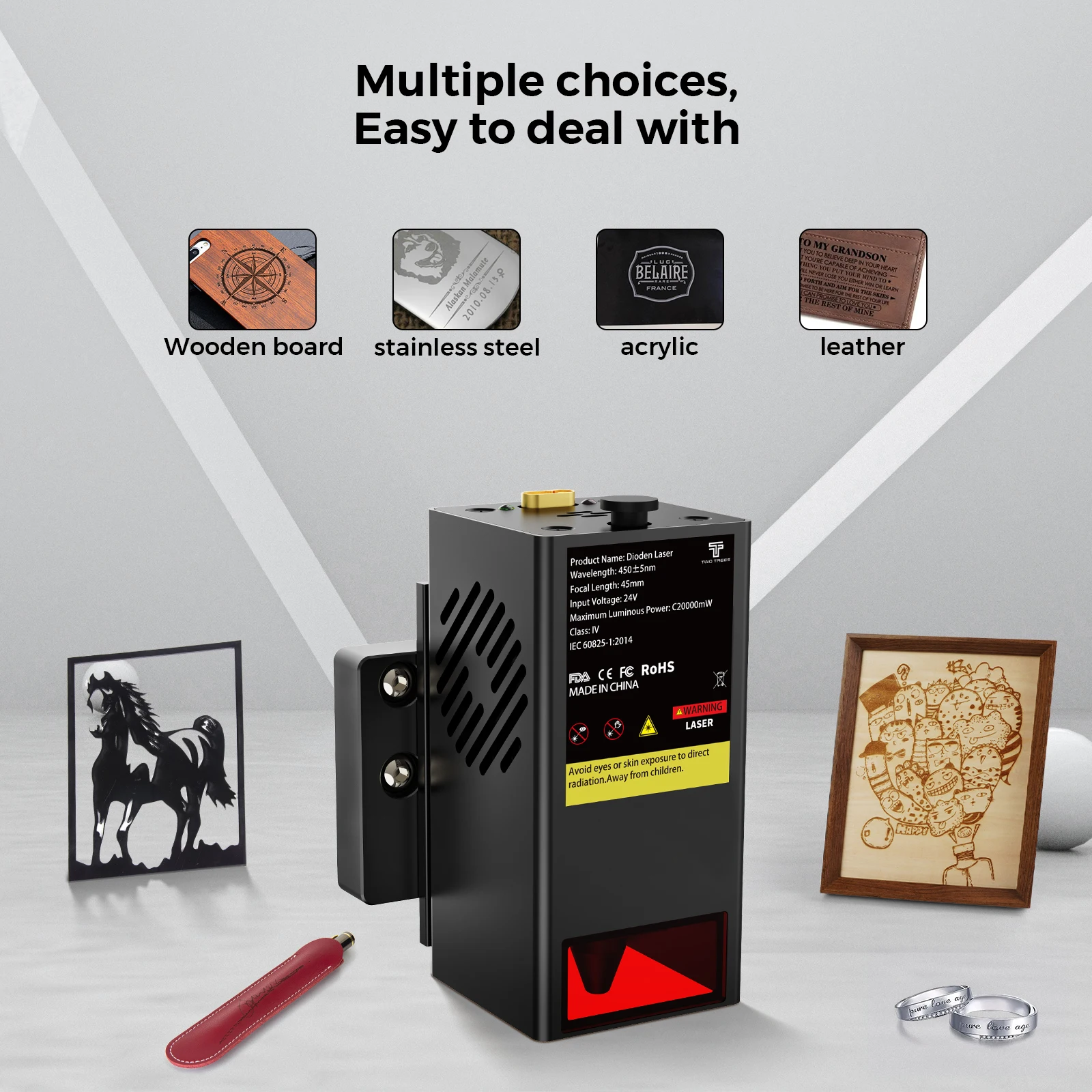

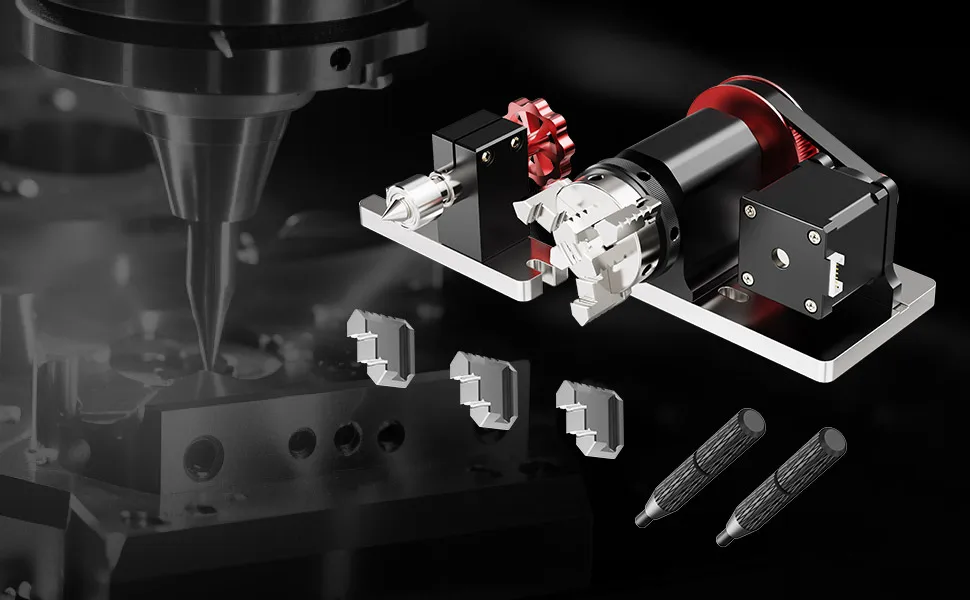

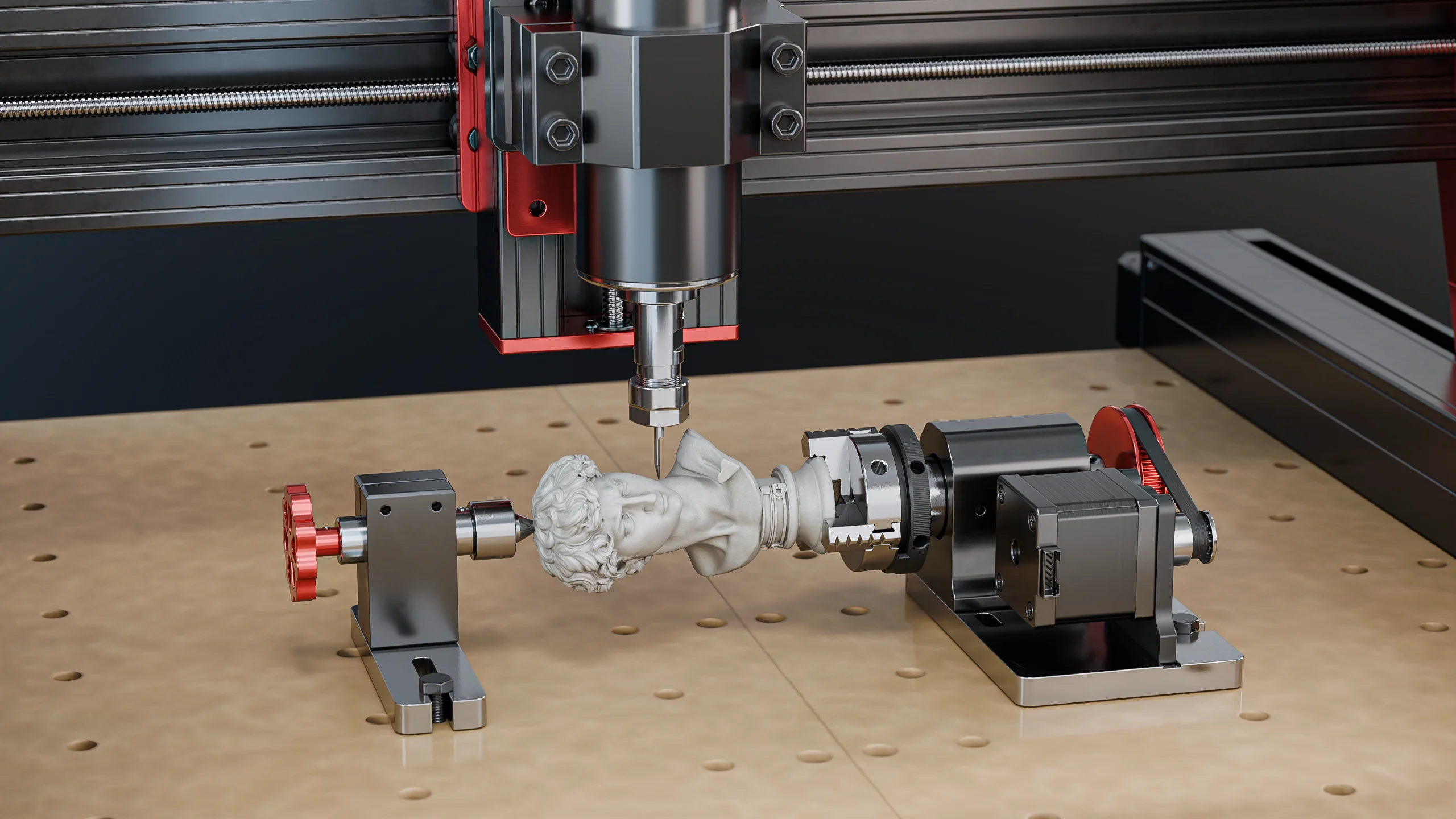

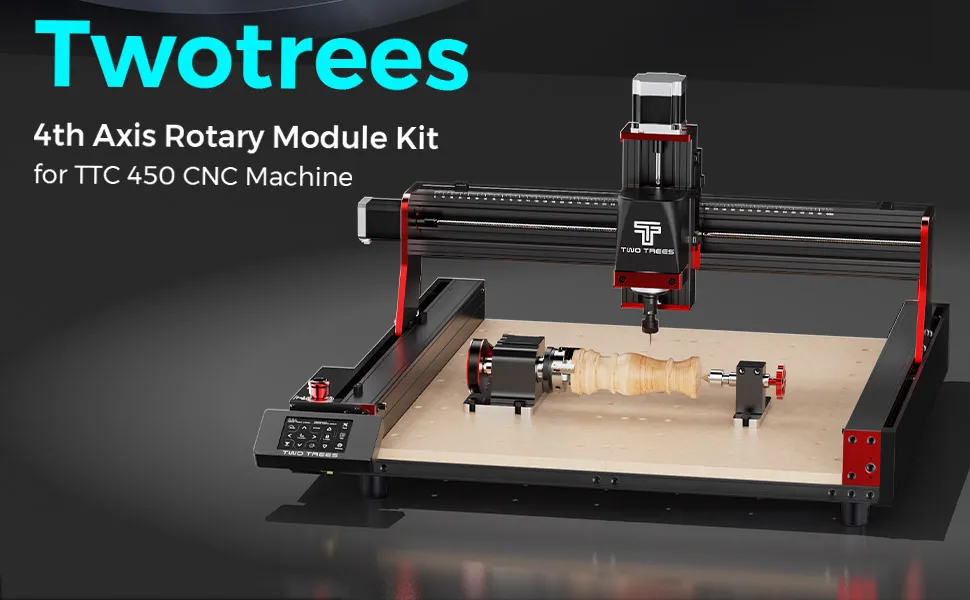

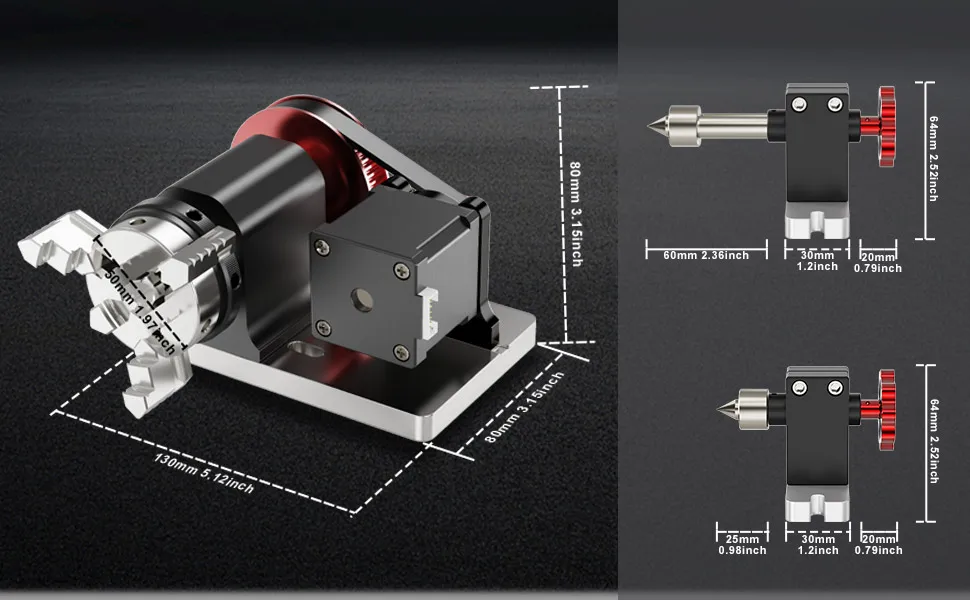

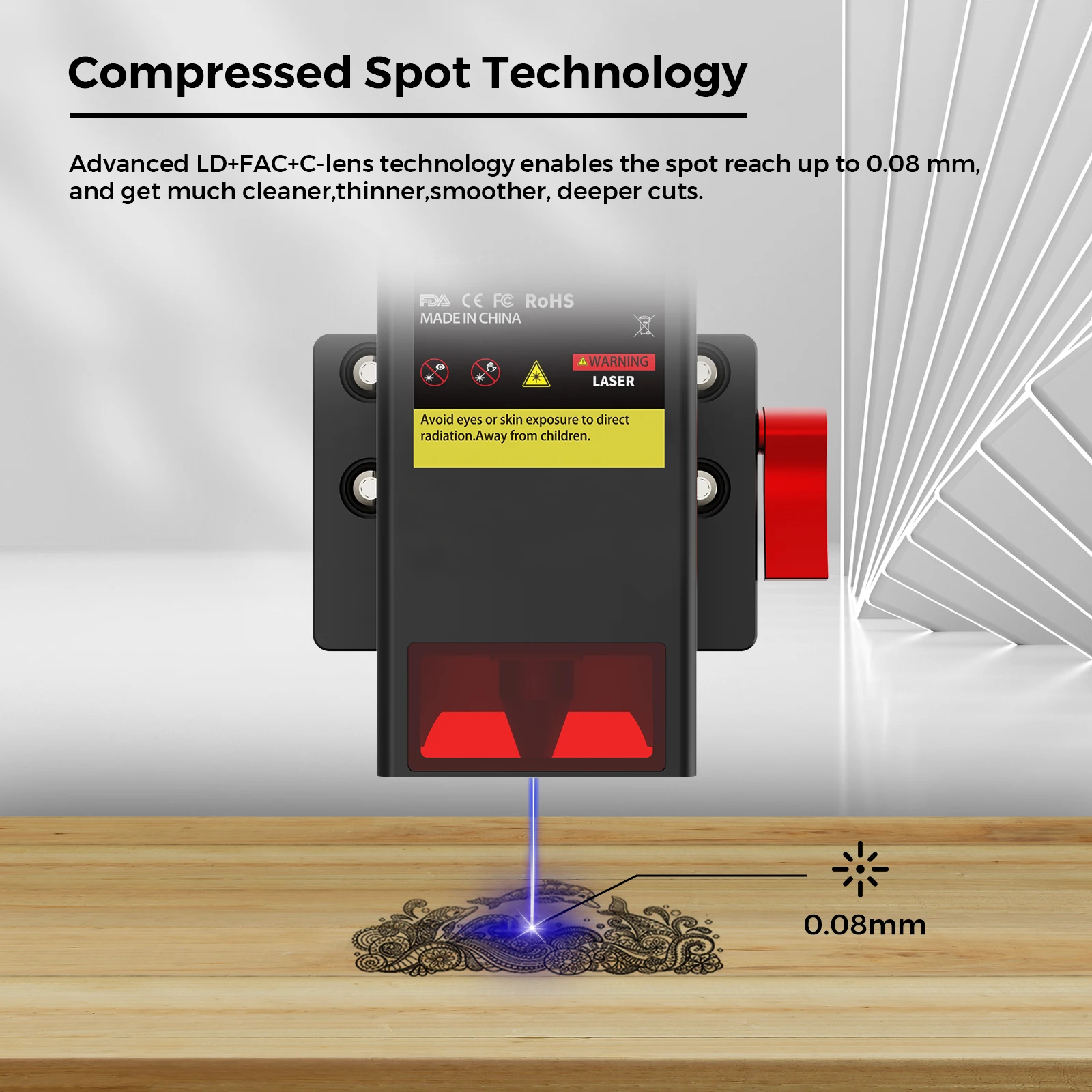

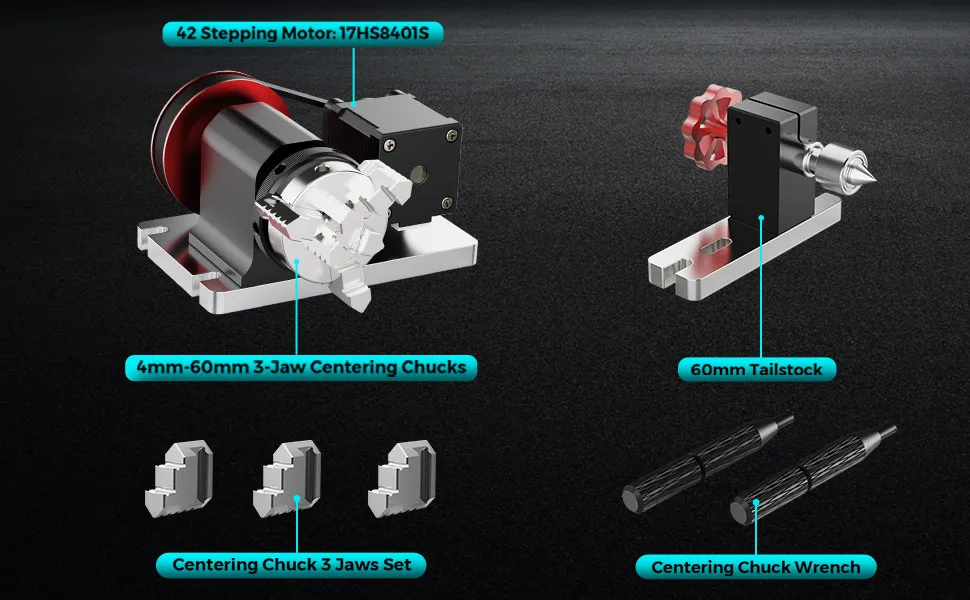

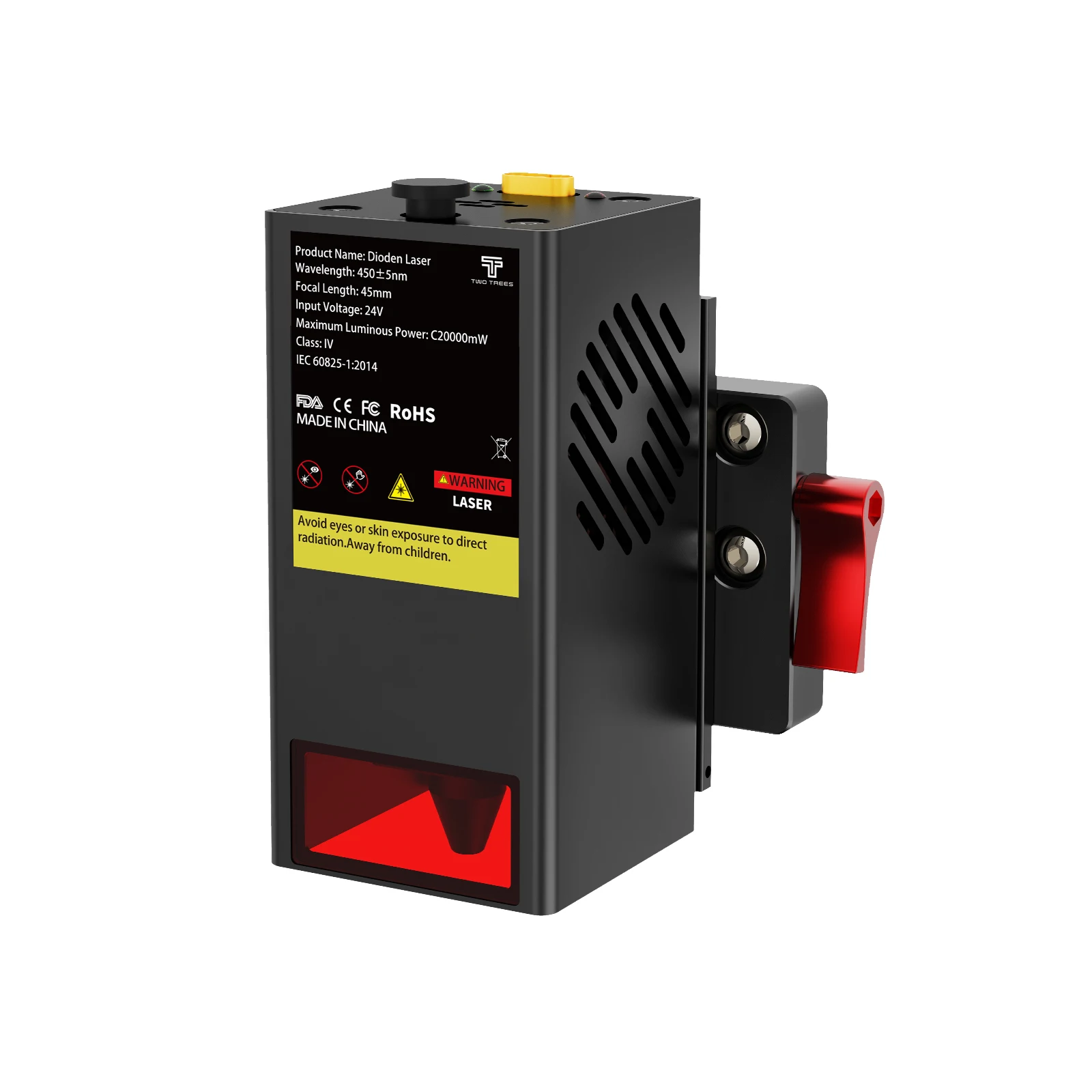

Compatibility Upgrade: The module of the TTC450 PRO CNC machine has been upgraded to compatible more kit. It supports not only the 4th-axis rotary module kit, 500W Spindle, but also the trimmer router,20W lasermodule. With these kits, your woodworking creations will be much more manageable!

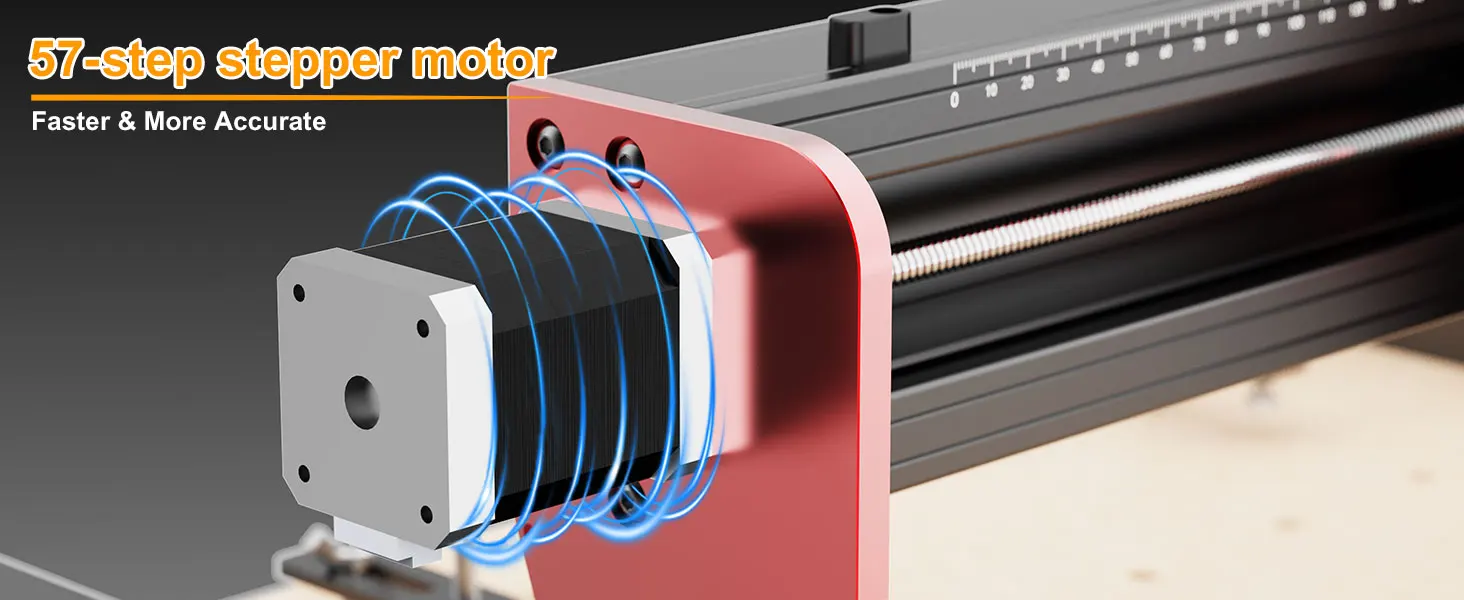

Upgrade: The upgraded X-axis motor 17HS6001 provides more powerful torque and ensures stable operation.

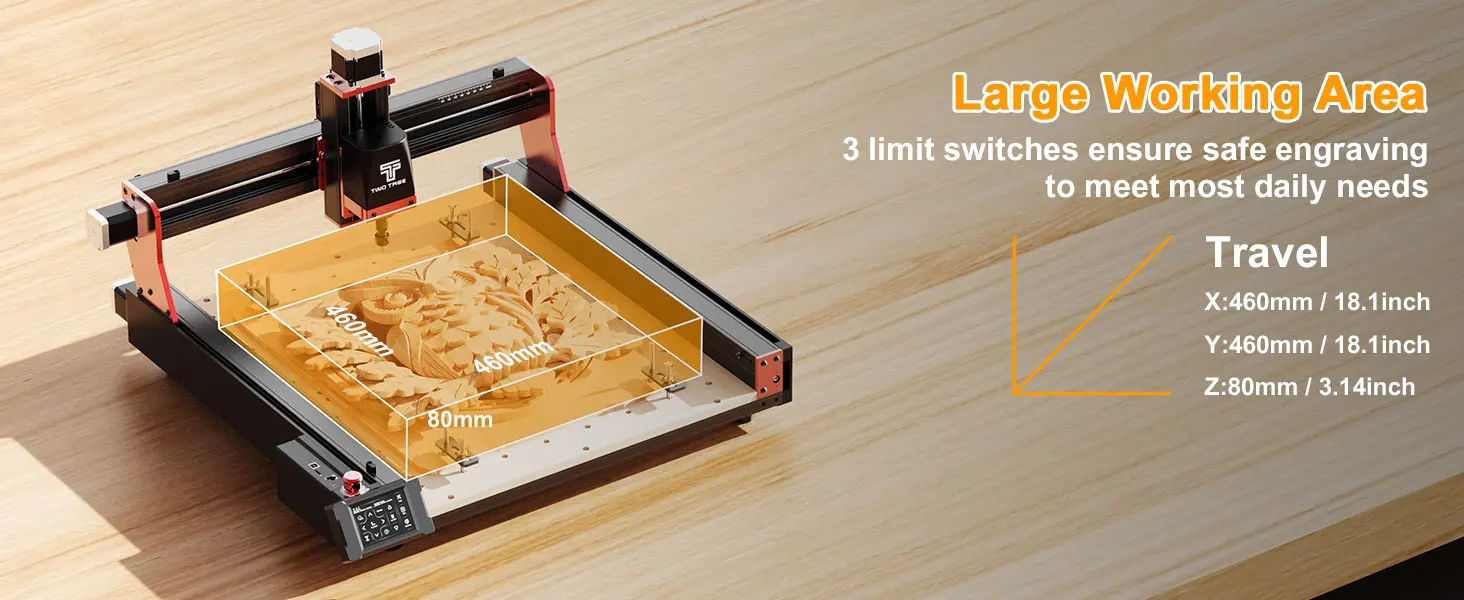

Large working areaThe active working area is 18.10” x 18.10” x 3.14” (460 x 460 x 80mm). It is large enough for daily woodworking

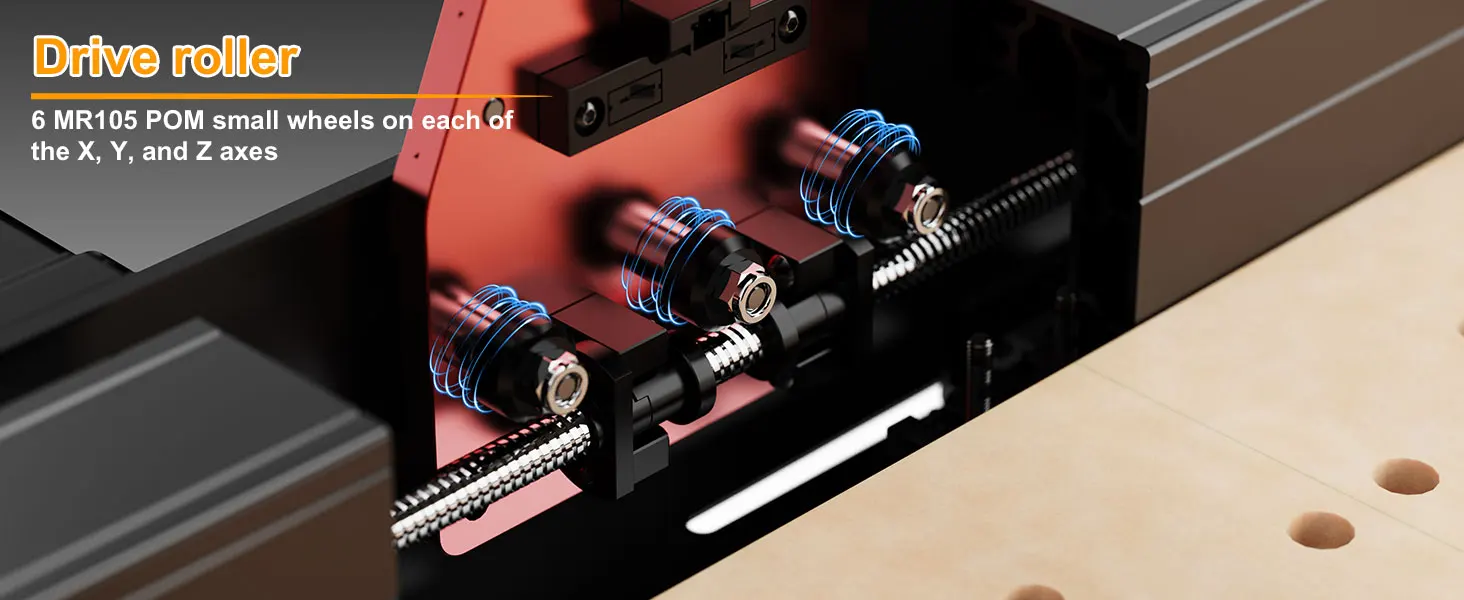

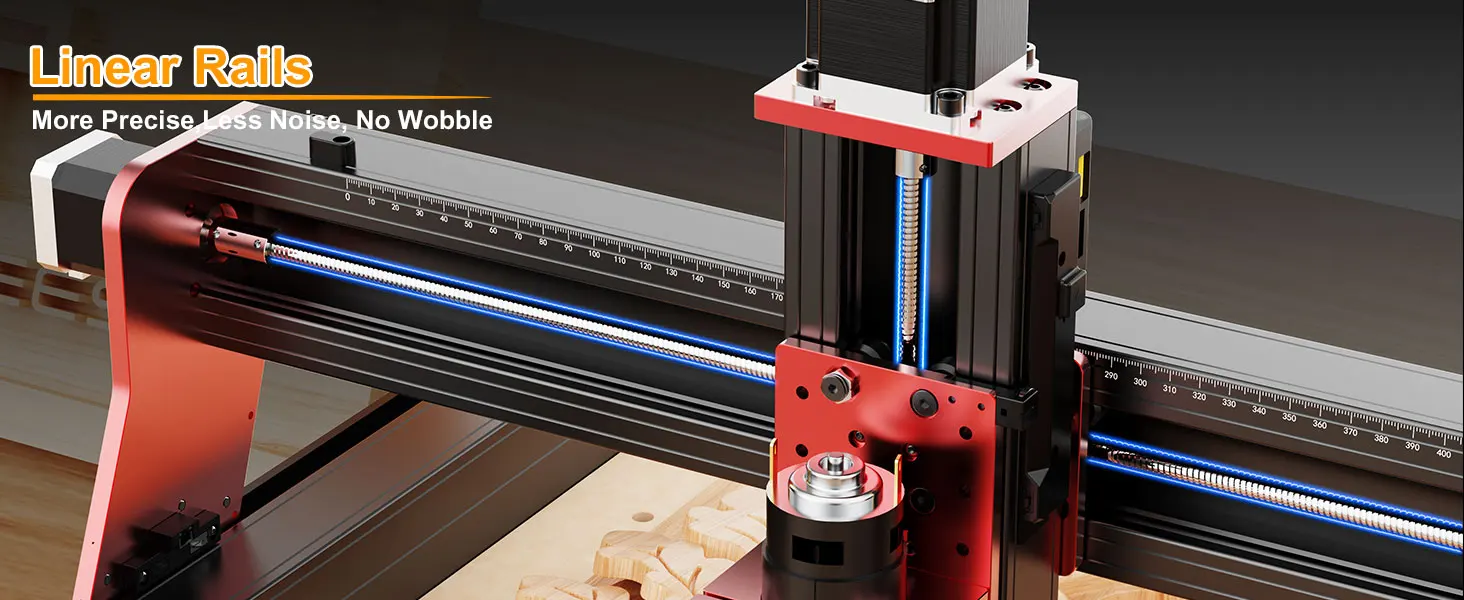

Precision Dual Brass Nuts - Smooth and Accurate Movement.

Wide Application: The TTC45 PRO CNC Wood router is compatible with GRBL software and supports systems such as windows XP/7/8/10 and Mac OS. It is suitable for engraving and carving stainless steel, wood, aluminum, brass, plexiglass, leather, PCB, MDF, acrylic, resin, nylon, carbon fiber, PCB, PVC, and more.

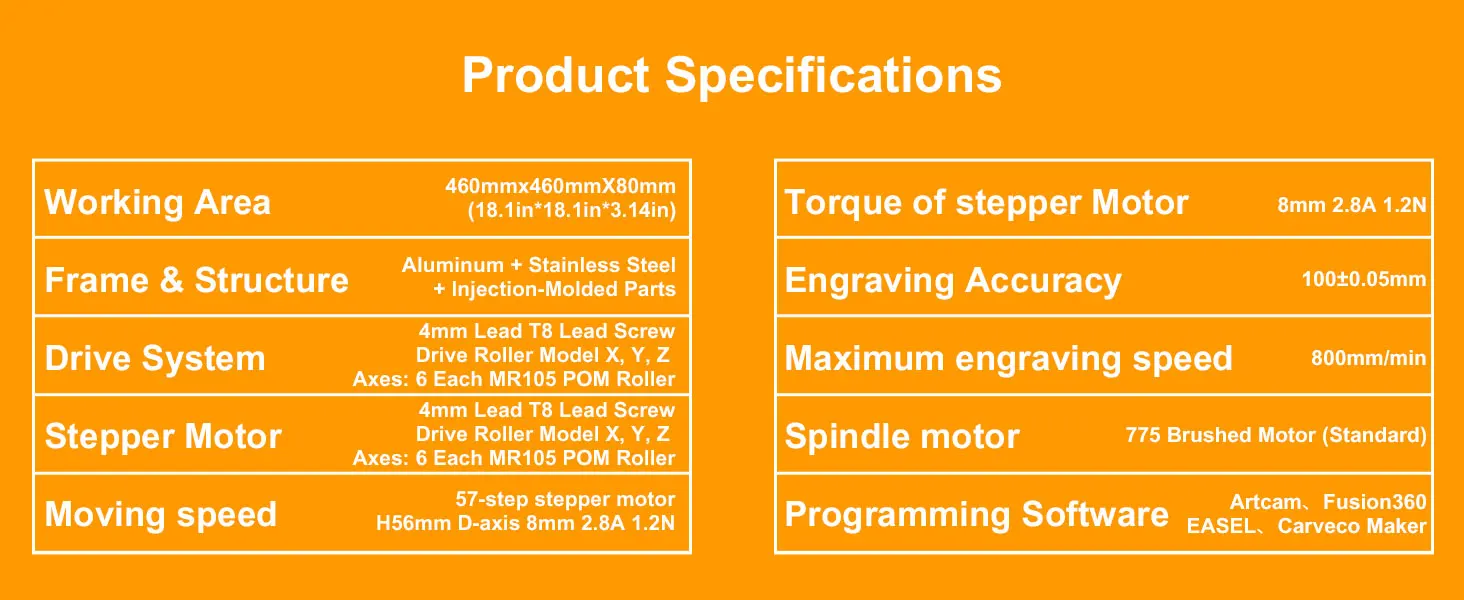

Specifications

Name：CNC Woodworking Engraving Machine

Model：TTC450 Pro

Frame structure：Sheet Metal + Aluminum Profile + Injection Molding + Stainless Steel

Product size：742mmX689mm X 413mm

Working range：460mmX460mmX80mm(18.1in*18.1in*3.14in)

Supported tool diameter：0.5mm to 7mm(ER11 chuck)

Compatible engraving materials：Plywood/MDF/Solid Wood/Acrylic/Carbon Brazing/Aluminum/Copper/Stainless Steel

Net weight：15.45KG

Gross weight：20.6KG

Packing size：760X740x218mm

Power supply mode：24V3A Power Adapter

Switch power supply parameters

INPUT：100AC-240AC 50GHZ

OUTPUT：DC24V/3A

Touch screen：3.5-inch IPS capacitive touch color screen (480*320 resolution)

Firmware type：GRBL open source, supports both CNC and laser (no firmware required)

Support：TF storage card | USB port

Engraving accuracy：100±0.05mm

Maximum engraving speed：800mm/min

Maximum acceleration：1000mm/s²

Spindle motor：775 brushed motor (standard)

Spindle speed Depending on the installation, the spindle speed range is 8000-30000RPM

Tool size

According to ER11 collet inner hole size supports 0.5-6MM diameter tool

Engraving layer height：Non-metal 0.1mm-20mm ；Metal 0.1mm-0.2mm

Programming software：Artcam, Fusion360, EASEL, Carveco Maker, etc.

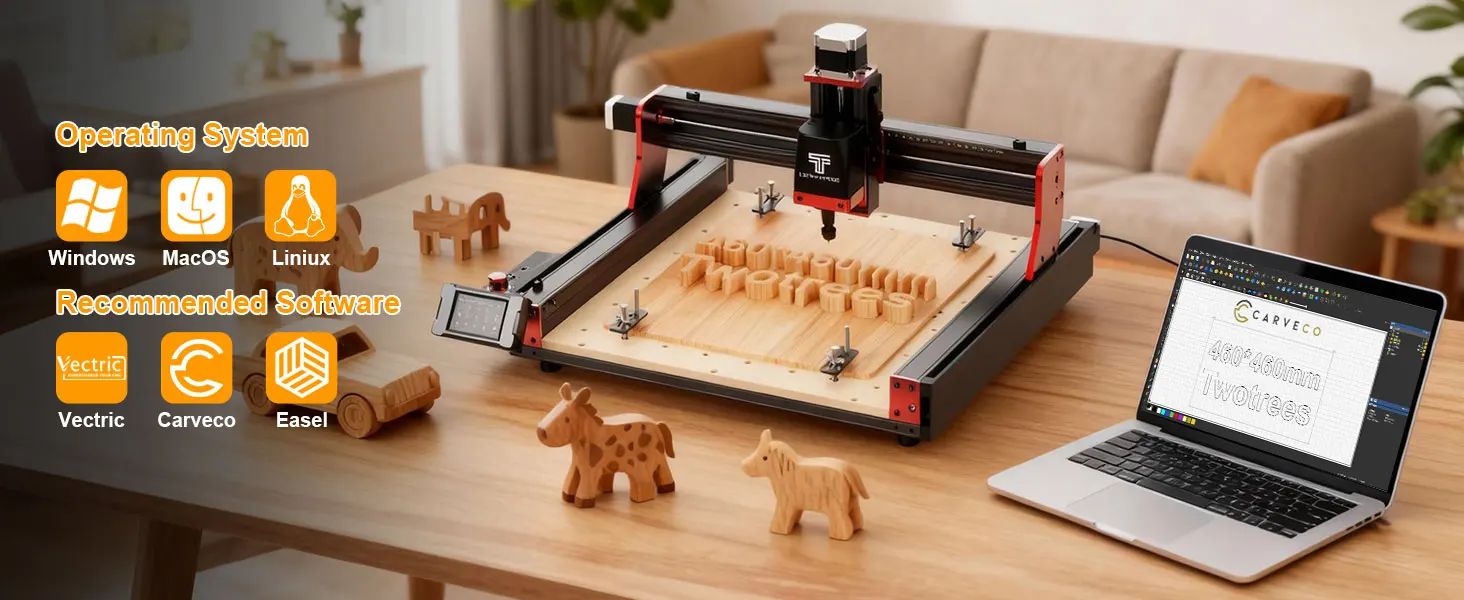

Support system：MacOS\Windows\Linux

Software language ：Chinese\English\Spanish\German\French\Russian\Portuguese\Italian\Japanese\Korean\Turkish

Program support format：.nci\Gcode

Safety certification：CE-EMC/CE-LVD/CE-MD/CE-RED/ROHS/FCC-Sdoc/FCC-ID

Optimal engraving environment temperature：0°-40°
