SV503 102F7 ED Astronomical Telescopes OTA

IMPORTANT: Filter Compatibility

The SV503 102ED only supports the use of 1.25" filters. Please note that it will not work with 2" filters or other filter sizes. Please be sure to confirm the size when purchasing filters.

Features

1. 1. The appearance of the telescope is baked with high-end fine-grained paint, with exquisite appearance and delicate feel

2. 2. The objective lens features an S-FPL51 extra-low dispersion glass ED element, which eliminates chromatic aberration. This results in the best color correction for an ED doublet lens

3. 3. The lens adopts optical processing and low polishing technology, which is carefully carved

4. 4. The deceleration ratio of the two-speed 2'' toothed focusing seat is 1:10, which makes it easy to achieve accurate focus

ED Glass: S-FPL51
SMC (Super Multi-coating) Objective
Dual-speed Rack and Pinion Focuser
1.17 Arc-second Resolution
CNC Machined Technology.
Compatible with all 1.25” accessories

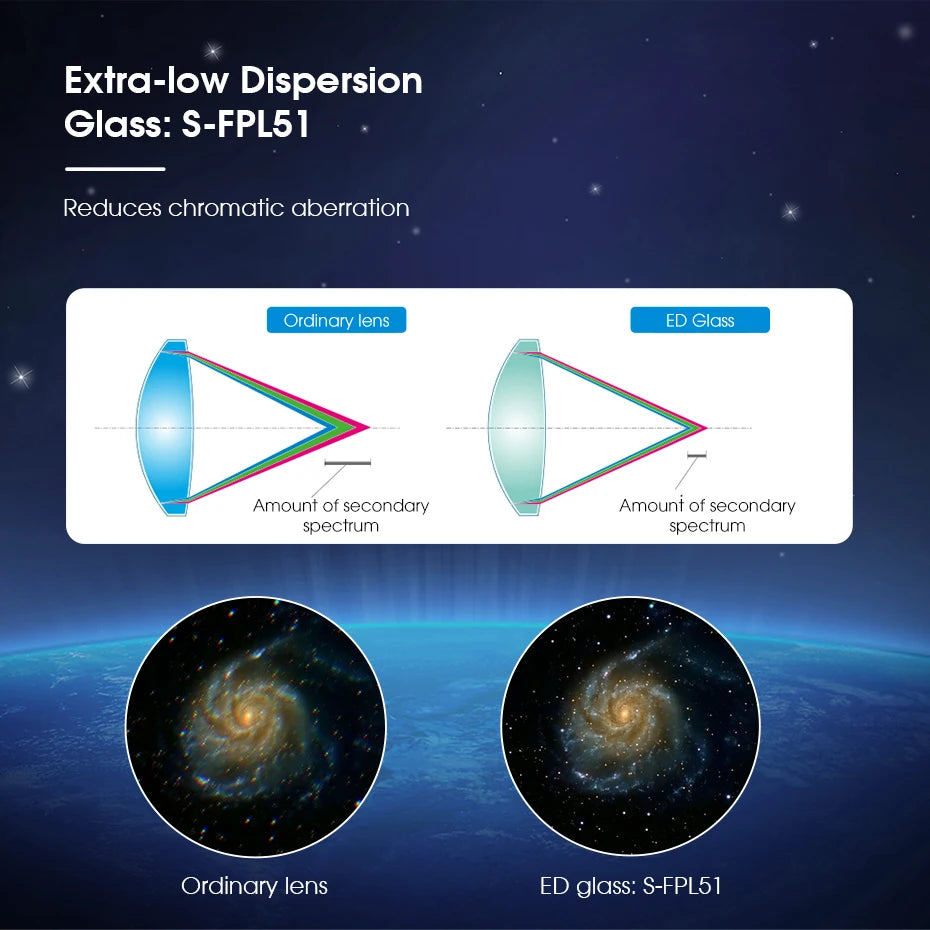

Extra-low Dispersion Glass: S-FPL51

ED(Extra-low Dispersion) S-FPL51 is built in SV503 astronomical telescope. ED glass minimizes the effects of the secondary spectrum and reduces chromatic aberration to a remarkable degree. The high-quality 2-Element objective provides sharp and high-contrast images for travel and mobile use.

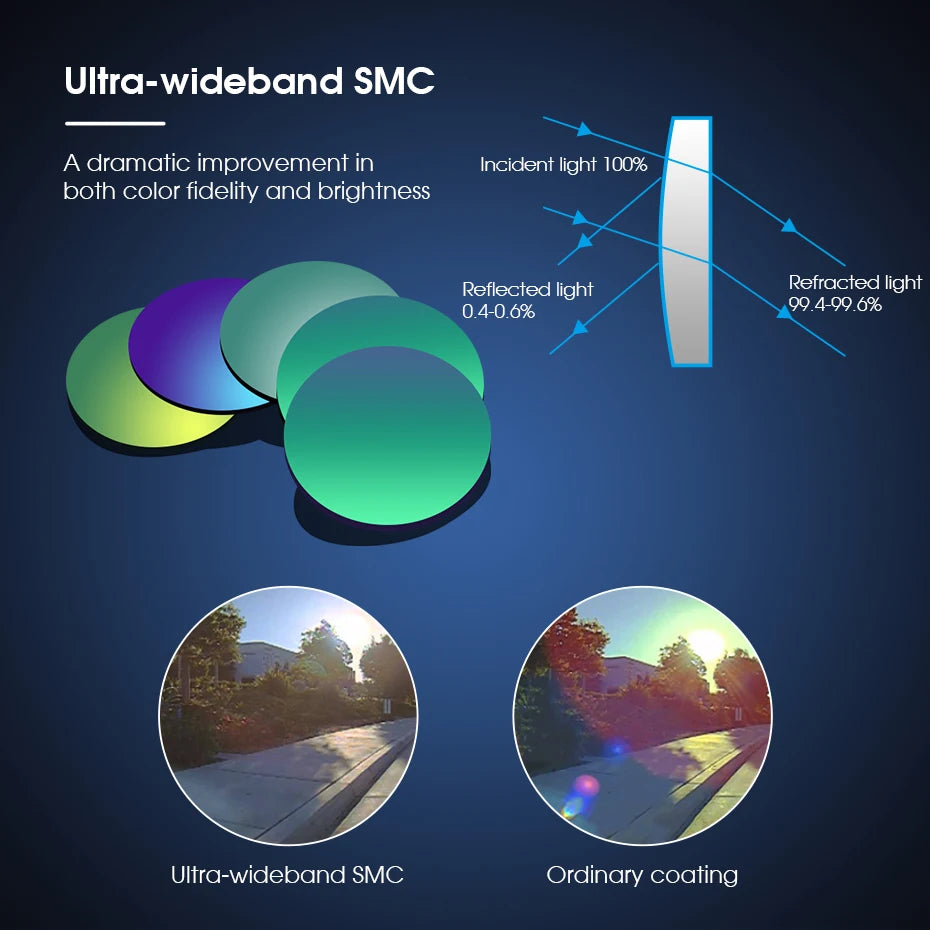

Ultra-wideband SMC

SMC is claimed as a remarkable seven-layer lens coating process that cuts the reflection ratio down to just 0.2% per lens surface. The result is a dramatic improvement in both color fidelity and brightness and the elimination of flare and ghost images.

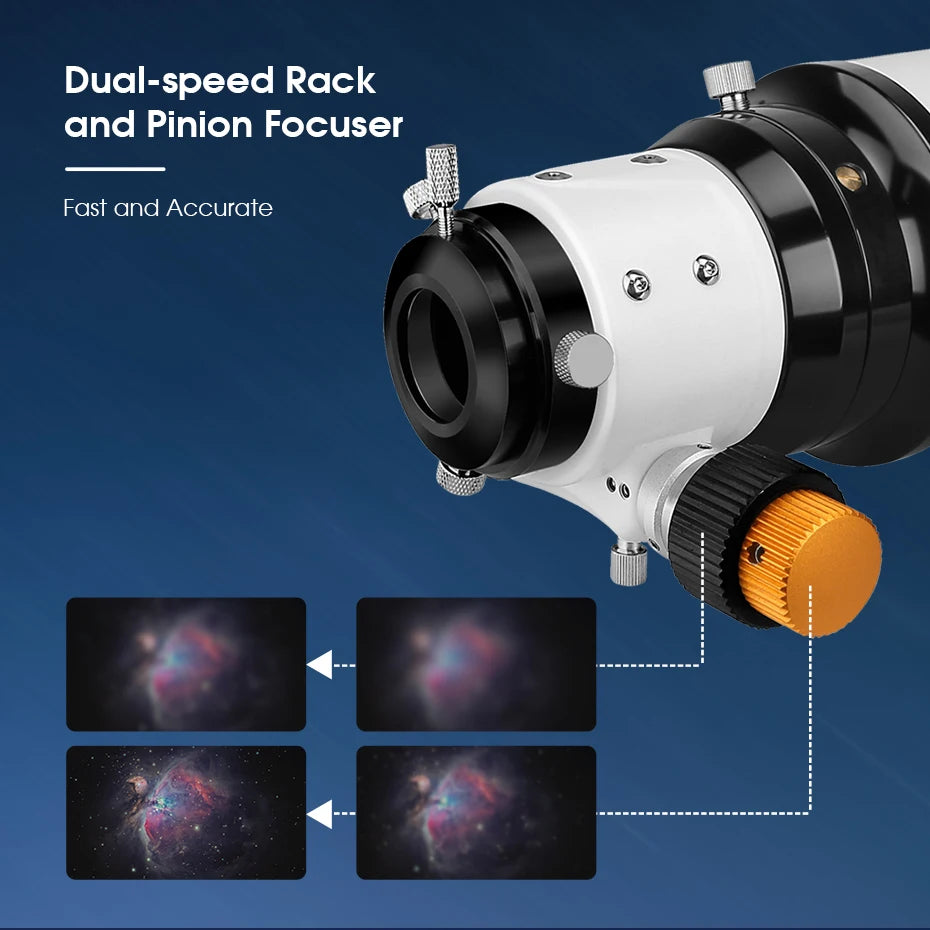

Dual-speed Rack and Pinion Focuser

The gear ratio of the dual speed 2-inch toothed focuser is 1: 10, which makes it easy to achieve accurate focus. The dual speed focuser can provide two focusing speeds by using a set of co-axial knobs, one for fast focusing and the other for fine focusing.

90mm Back Focus

The 90 mm back focus and 360 degree adjustable focuser are sufficient for your astrophotography needs, allowing perfect framing of your astrophotography. And the 2" RAP (rack and pinion) focuser holds more-than-5kg heavy photographic accessories safely.

1.17 Arc-second Resolution

The SV503 ED astronomical telescope can reach 1.17 angular seconds to let you see finer details either in astronomy or wildlife viewing.

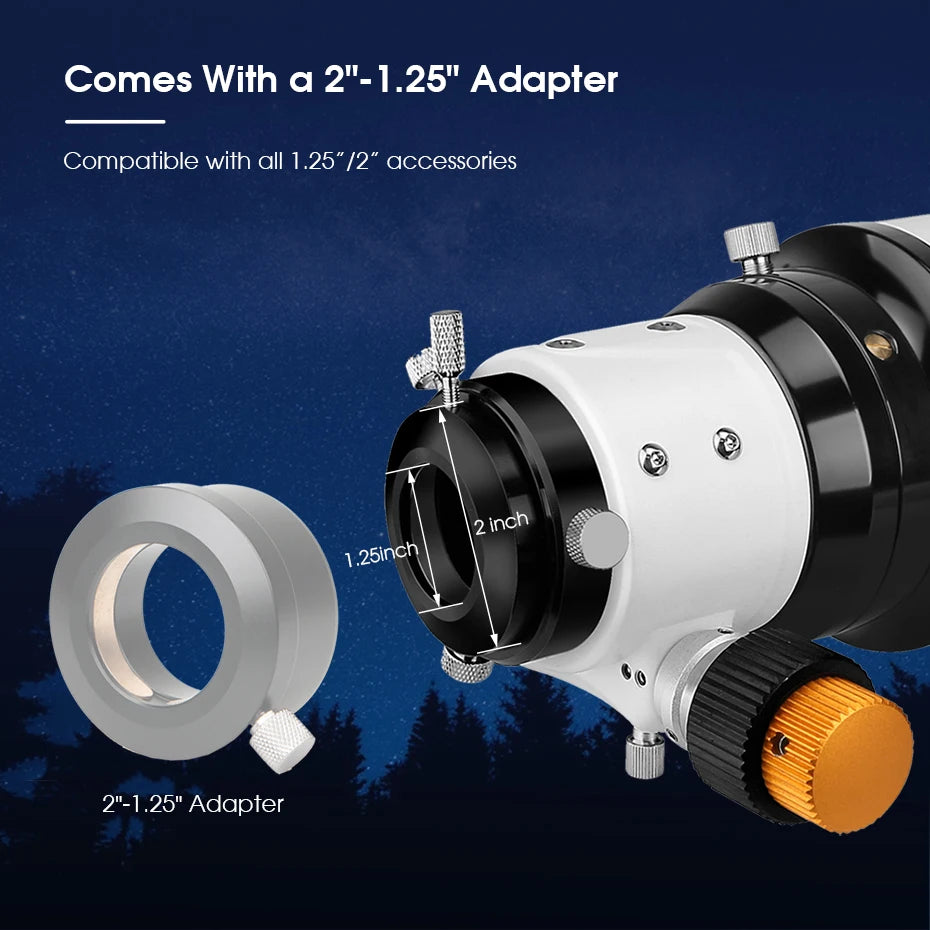

Comes With a 2"-1.25" Adapter

The telescope scope focuser comes with a 2 inch to 1.25 inch adapter. So that you could also use all your 1.25 inch accessories with the SV503 telescope.

CNC Machined Technology

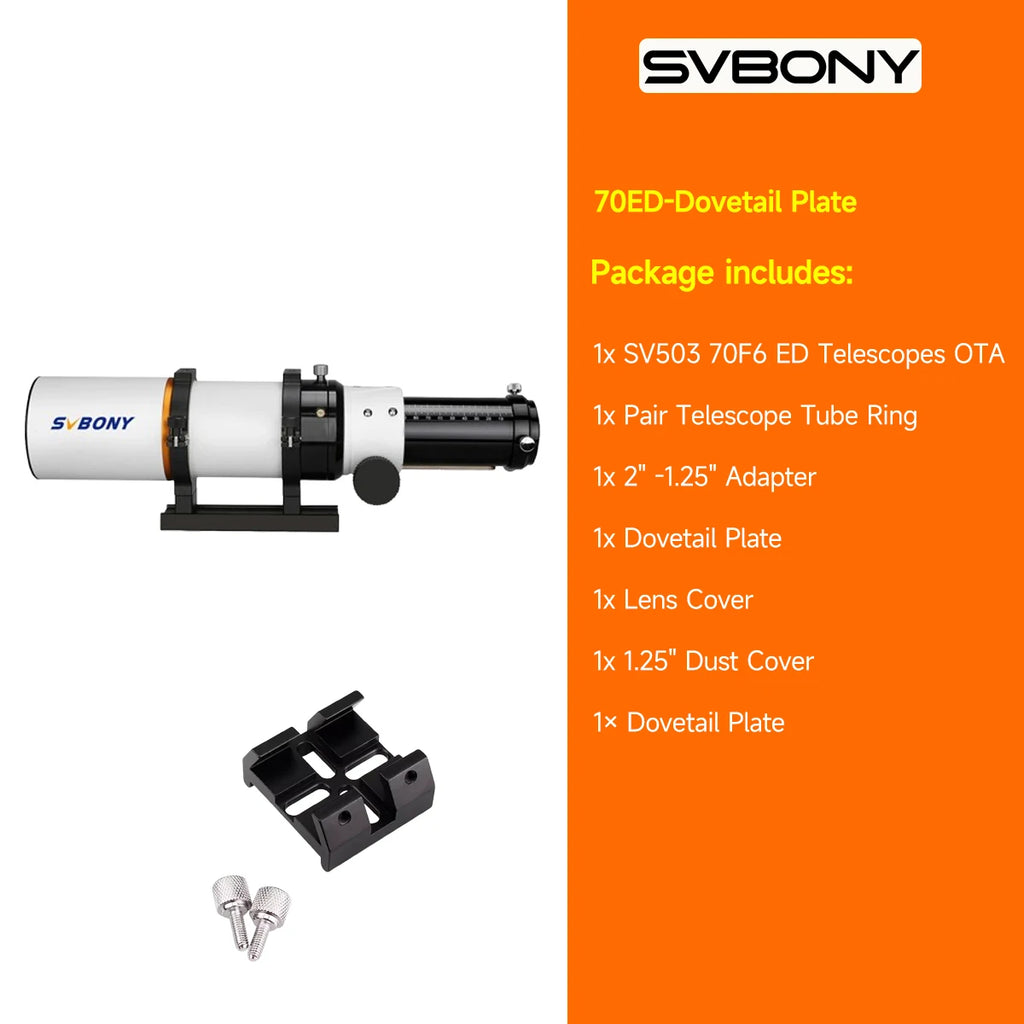

Metal Hoop with Dovetail

The SV503 comes standard with adjustable tube rings and dovetail which allows it to attach to most telescope mounts. In addition, there are 1/4 inch threaded holes on the dovetail plate to attach to tripods and M6 holes on top of the tube rings to attach a guide scope.

Well Protected

Picture 1:
M81 & M82
Equipment:
Camera: Canon Ra
Telescope: SVBONY S503 102F7 ED (714mm)
Mount: Skywatcher HEQ5
Filters: L-Pro Enhance Broadband
Bortle Class 4
Picture 2:
Triangulum Galaxy: 100 x 180s
Equipment:
Camera: Canon Ra
Telescope: SVBONY S503 102F7 ED (714mm)
Mount: Skywatcher HEQ5
Filters: L-Pro Enhance Broadband
Bortle Class 4

Author:txastrophotos
https://www.instagram.com/p/CWpAzG3rLMO/
https://www.instagram.com/p/CWpBIpbrNqe/

Imaging telescopes or lenses: SvBony Sv503 AR ED 102/714 f/7
Imaging cameras: ALccd-QHY 5-III 174m
Mounts: Skywatcher AZ-GTi
Software: REGISTAX 6 · ImPPG Impgg · Autostakkert3! AS3! · Sharpcap · Adobe Photoshop CC 2019 PS CC
Filters: Beloptik ERF 102 · Baader UV/IR Cut 1,25" · Daystar Instruments Quark h-Alfa Chromosphere
Accessory: SVBONY SV188P Zenitspiegel 1,25"
Author:Mathias BöhmeImaging telescopes or lenses: Skywatcher Startravel 150
Imaging cameras: ZWO ASI294MC pro
Mounts: Vixen SXP2
Guiding telescopes or lenses: GSO 8x50mm
Guiding cameras: ZWO ASI 120mm Mini
Software: Astro Art StellaImage9
Filters: SVBONY 2" Sii 7nm Filter · SVBONY 2" Ha 7nm Filter · SVBONY 2" Oiii 7nm Filter
Accessory: ZWO EAF · ZWO AsiAir Pro · Astromania 2" Field flattener
Author:Nutsbar

🔭 SVBONY SV503 ED 102/710 F7
📷 QHY168C
🕶️ SPIANATORE X1 + Filtro L-eNhance
📡 SW EQ5 PRO GoTo
📈 Svbony 60/240 + asi224 MC (attiva PHD2)
🎥 36x300" - (Gain 12 - 50 Offset)
💻 STELLARMATE + APP + PIXINSIGHT + PS
🌃 Bortle 8 (Torino)Buyer Show

That was captured for 4 hours of 300sec subs @300 gain

I used an sv503 80ED/asi585mc pro for imagine

For guiding is used an sv165/sv305c

Author:AshyThese are nearby (only about 4000 light years away) large emission and reflection nebulae, with the red colors given mostly by ionized Hydrogen and the green/blue tones coming from ionized Oxygen. Embedded within the nebulae are large clusters of bright stars.

SV503 80mm ED refractor with 0.8x reducer on Celestron AVX mount, Risingcam Sony IMX571 26Mp cooled color camera.

Total exposure time 45min, 30sec subs. Natural colors (no filters).

No guiding, no gadgets, optical polar alignment, manual focus with Bahtinov mask. Images stacked in DSS (free) and edited in Siril (free) and Gimp (free). No added, removed, re-colored, shrunk or re-shaped stars.

In Borrego Springs Calif.SV503 80ED
Creator: Gavyn
