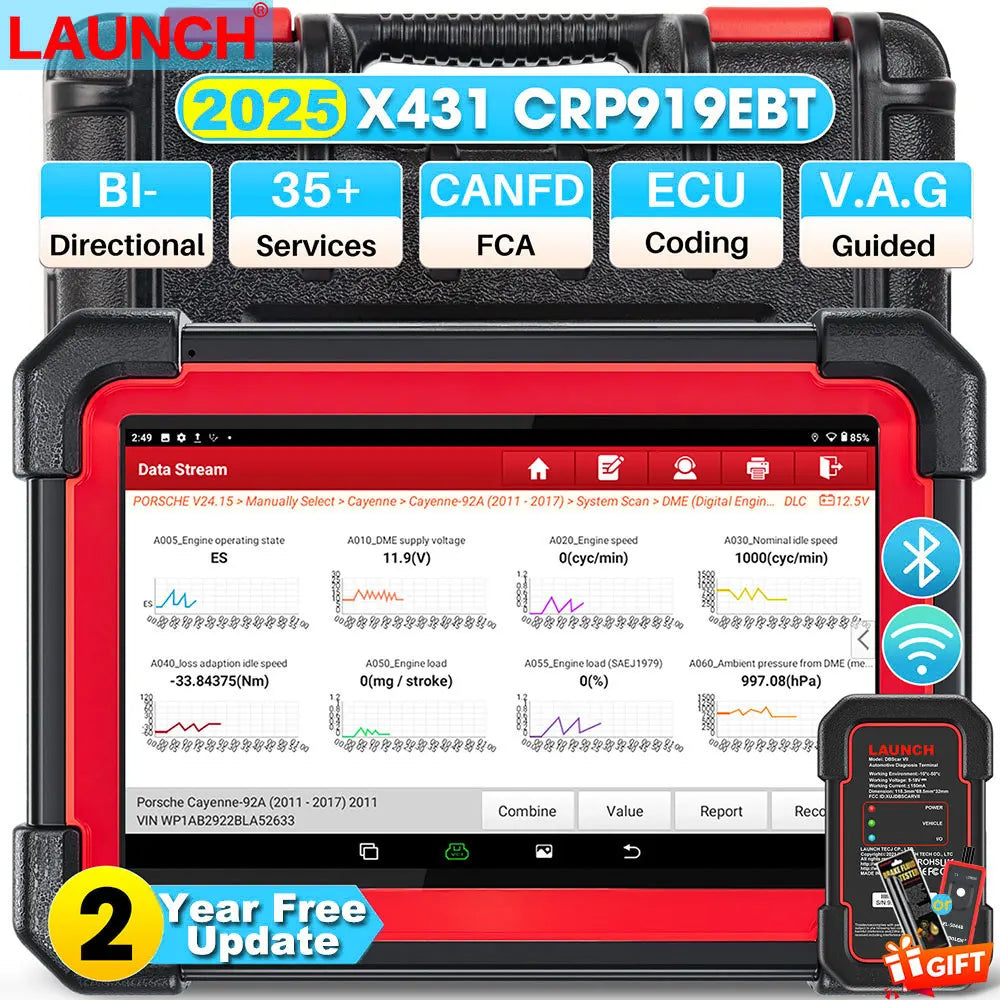

Why choose launch x431 CRP919E BT?

✔️TOP Hardware configuration: >>>The newly upgraded X431 CRP919E BT diagnostic device auto with Android 10, 2.0Ghz 4-core high performance processor, 4GB RAM+64GB ROM large memory, 6300mAh rechargeable battery, 2.4GHz & 5GHz Wifi, which greatly increases the speed of performing multiple tasks.

✔️Stable Wireless BT connection: Compared to the wired diagnostic tool, X431 CRP919E BT is equipped with wireless BT technology, up to 33ft (10m) working range, so wireless diagnosis allows you to get away from troublesome connecting cables and tight spaces in the car.

✔️ECU coding & key programming: used to customize your car, disable hidden functions or disable troublesome functions (disable the reverse buzzer, disable the seat belt buzzer), re-identify adaptive data for specific components after repair or replacement. Add new keys, deactivate lost keys.

✔️Wireless intelligent diagnosis and full system diagnosis at OE level: CRP919E BT launch diagnostic device can access all available car systems, and perform OE-level diagnosis by reading/clearing codes, displaying live data from multiple sensors in text & graphic, freeze frame data, only a few minutes, you can easily master the car situation.

✔️31+ services (adjustment+calibration+initialization): Oil reset, ABS bleeding, injector coding, fuel adjustment learning, transmission reset, A/F adjustment, stop/start reset, SAS reset, TPMS reset, BMS reset, window initialization, power balance, VGT learning, seat calibration, etc.

✔️Bi - Directional control (active test): Perform various active tests to verify the integrity of systems or components and the operation of various vehicle systems or subsystems, without the use of vehicle control units.

✔️V.A.G Guided Functions: With the V.A.G guided functions, the CRP919E BT obd2 diagnostic tool bluetooth can perform complex functions such as special functions, ECU coding, etc. to support your diagnosis step by step with instructions for VW/for Audi/for Skoda, etc.

✔️Autoauth for FCA: Supports AutoAuth for FCA vehicles (Compatible with for Chrysler,for Dodge,for Fiat, etc.) after 2017.(Note: Requires AutoAuth subscriptions.)

✔️Support CANFD/DoIP: CAN-FD Compatible with for GM models (2019 and later), NO CAN-FD adapter required, Save $100+. DoIP Compatible with for BMW (F&G chassis), for Volvo models (2018 and later), for Land Rover & for Jaguar models (2017 and later), need purchase extra DOIP Connector.

✔️150+ Brand Coverage: The vehicle coverage is extensive and includes over 150+ brands, 100000+ in America, Europe and Asia (from 1996 to 2024)

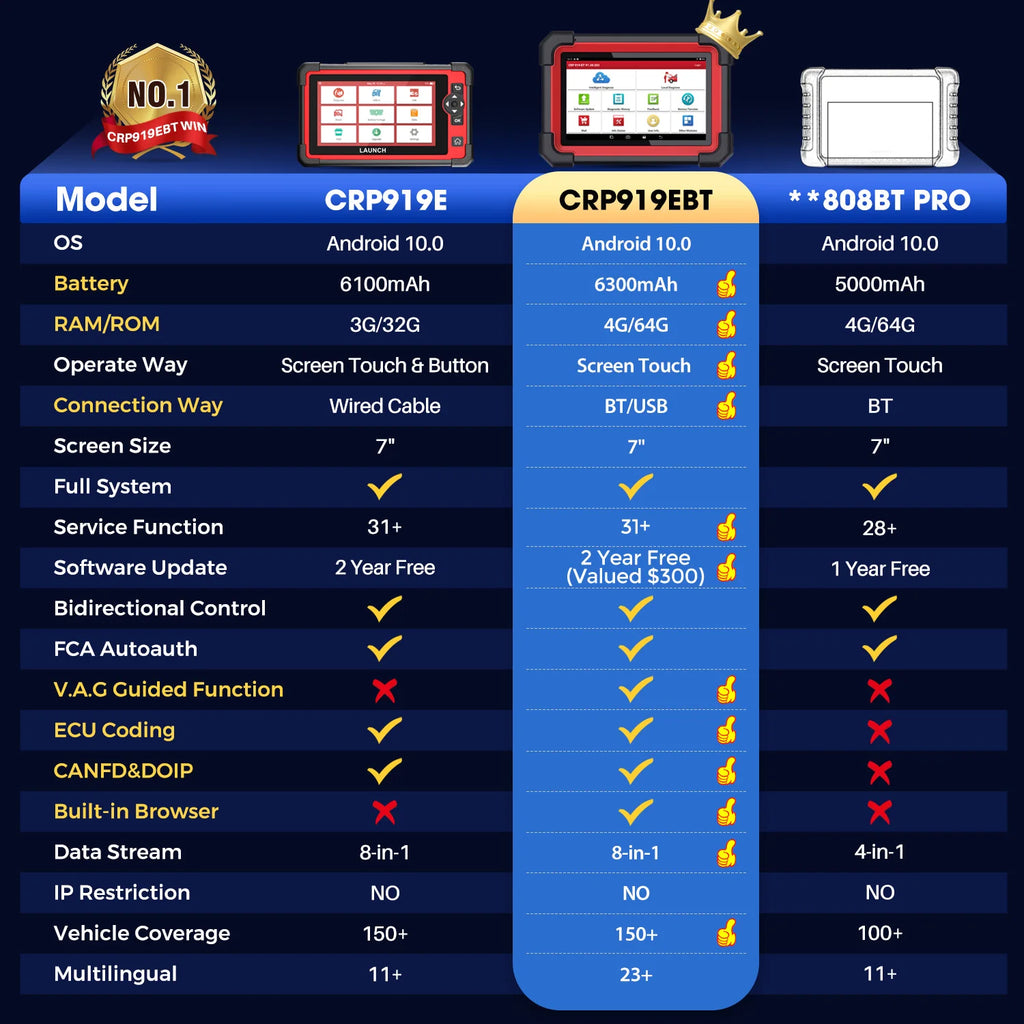

What Is Different From CRP919E BT And CRP919E？

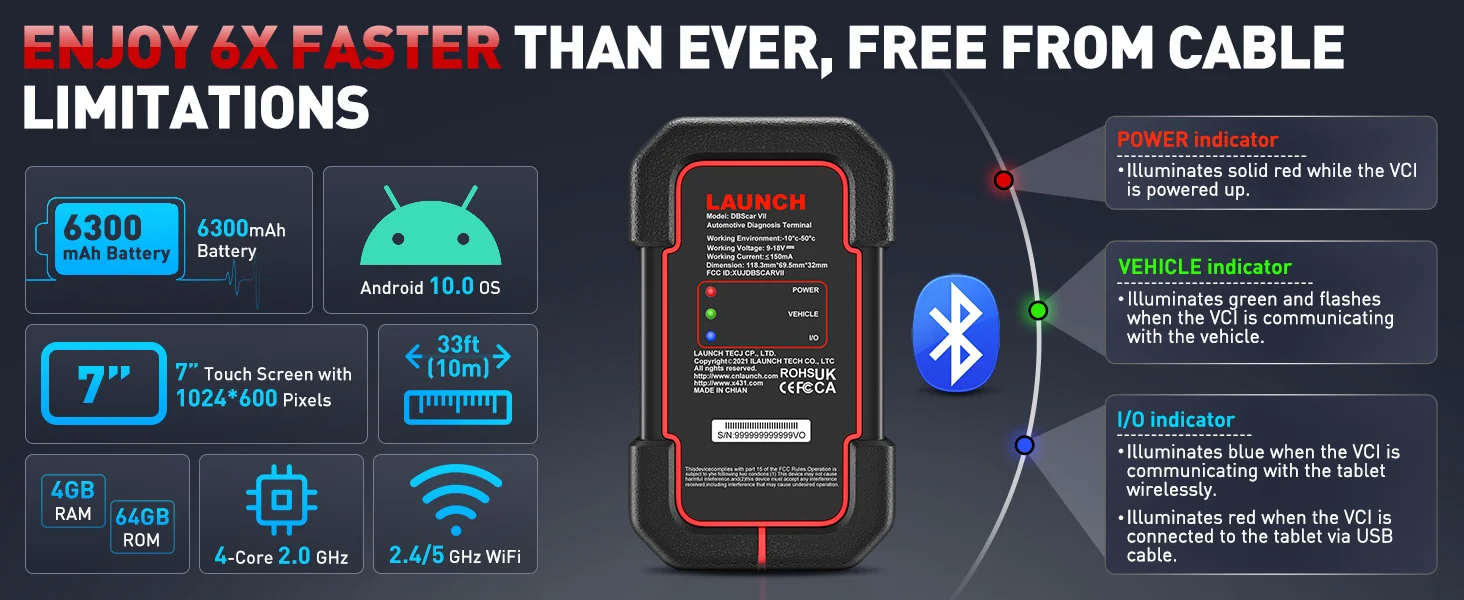

1.Connection: CRP919E BT adds DBScar VII VCI, which supports Bluetooth wireless connection to the vehicle for more flexible use; CRP919E is wired connection.
2. Memory: CRP919E BT has 4GB RAM + 64GB ROM for better storage and operation performance.
3. Battery: CRP919E BT is equipped with 6300mAh battery for better endurance; CRP919E battery capacity is 6100mAh.
4. Protocol support: CRP919E BT supports new protocols of CANFD and DOIP for better compatibility with new vehicle diagnostics.
5. Guided Function: CRP919E BT adds VAG Guided Function for Audi, BMW, etc., which provides detailed guidance and operation steps during diagnosis; CRP919E does not have this function.
6. Vehicle coverage: CRP919E BT can cover 150+ vehicle brands, while CRP919E covers 100+ vehicle brands, the former has a wider scope of application.

LAUNCH CRP919E BT Support More Than 150+ Car Brands

✔️- American cars

for BUICK, for CADILLAC, for CHEVROLET, for CHRYSLER, for DODGE, for FIAT(BRAZIL), for FORD, for GM, for JEEP, for LINCOLI, for GM(BRAZIL)

✔️- European car

, for ABARTH, for ALFA ROMEO, for AUDI, for BENTLEY, for BMW, for BUGATTI, for CITROEN, for DACIA, for IZH, for EURO FORD, for FERRARI, for FIAT, for GAZ, for OPEL(SOUTHAFRICA), for IVECO, for JAGUAR, for LAMBORGHINI, for LANCIA, for LANDROVE, for MASERATI, for MAYBACH, for MERCEDES, for MINI, for OPEL, for PEUGEOT, for PORSCHE, for RENAULT, for ROLLSROYCE, for ROVER, for SAAB, for SEAT, for SKODA, for SMART, for SPRINTER, for VAUXHALL, for VAZ, for VOLVO, for VW, for ASTONMARTIN, for VW_CV

✔️- Asian cars：

for CURA, for DAEWOO, for DAIHATSU, for HOLDEN(AUSTRALIA), for HONDA, for HYUNDAI, for INFINITI, for ISUZU, for KIA, for LEXUS, for LUXGEN, for MAHINDRA(INDIAN), for MARUTI(INDIAN), for MAZDA, for MITSUBISHI, for NISSAN, for GTR(NISSAN), for PERODUA, for SAMSUNG, for SSANGYONG, for SUBARU, for SUZUKI, for TATA(INDIAN, for TLISUZU, for TOYOTA

LAUNCH CRP919E BT Support OE-LEVEL All System Diagnostics

The LAUNCH CRP919E BT is a cost-effective automotive scanner, that offers OE-level diagnoses on all available electronic systems, which can read/clear codes, data stream, read control module information and actuation tests for ECM, ABS, SRS, TCM, EPB, TPMS, SAS, A/C, BMS, ESP systems, etc.

LAUNCH CRP919E BT Support DBSCar VIII & CANFD Protocol & DlOP Protocol

The CAN-FD Protocol (CAN with Flexible Data-Rate): Adopts advanced CRC algorithms to accommodate more data from 8 to 64 bytes in the CAN frame, which runs faster than other products and reduces the risk of undetected errors to greatly enhance the user experience.

The following vehicle models meet -ISO 11898-1:2015(CAN-FD) protocol:
2021 Chevrolet Tracker/Suburban/Tahoe;
2020-2021 Chevrolet Onix 1.0L(L4F/L4G/LIJ/LIF)/Onix 1.2L(LIF);
2021 Cadillac Escalade/Escalade ESV;
2021 GMC YUKON/YUKON XL;
2020 Chevrolet Tracker

Supports -ISO 13400( DoIP) Protocol:
It has high bandwidth and a faster data rate, which is suitable for transmission of a large amount of data, and greatly improves the communication speed, which can work better with OBD diagnosis. Compatible with E and F Chassis BMW and new cars from Land Rover/Jaguar vehicles (about manufactured after approximately 2020).

LAUNCH CRP919E BT Support Bi-directional Control

It supports a bi-directional control capability to send the command to the vehicle ECU to perform active/component tests to check its functionality which can accurately figure out whether a specific system, component or subsystem in vehicles goes well.
FOR EXAMPLE: If the vapor emission system failure may be due to the EVAP cleaning valve may have been opened or closed after being stuck or short circuit, you can use our LAUNCH 919E scanner to send the command to the vehicle ECU to perform EVAP tests, then diagnose the DTC and read the data stream. Can determine which part of the circuit, control unit, and actuator fails through comparative analysis.
Commonly-Used Active Tests including:
- EVAP Vent / Purge Solenoid;
- Fuel Injector Test;
- Cycling A/C Clutch Relay;
- Cycling ABS Motor Pump;
- Cooling Fan Test;
- Window/Light/Door Lock Actuators/Headlamp Test/Sunroof/Operate mirrors/Turn on the sound horn;
And also can perform other actuation test functions including Modulate the throttle,Turn Off ACC Lane Keeping Assist System (LKAS) ; Turn ON/OFF Front and Rear side ACM Solenoid, Left clutch electromagnetic coil test,Acceleration Device Test,Oil Pressure Control Test DYNAMIC camera aiming,Brake Vacuum Pump, Inlet and Outlet Valve tests, Open Brakes tests, Parking Brake Motors, Wheel Speed Sensor Supply, PARKING BRAKE tests, etc.
*Actuation test functions vary by the vehicle system.

LAUNCH CRP919E BT Support 31 Maintenance Functions

1.ABS Bleeding:When the ABS contains air, the ABS bleeding function must be performed to bleed the brake system to restore ABS brake sensitivity.

2.TPMS Reset:When due to the tire pressure is too low,tire leaks,tire pressure monitoring device is replaced or installed,tire is replaced and tire pressure sensor is damaged,The tire pressure
resetting function must be performed to reset tire pressure and turn off the tire pressure MIL.

3.Oil Lamp Reset: Allows you to perform reset for a new calculation of Engine Oil life system once changed the oil.

4.Electronic Throttle Sensor Reset: To utilize the car decoder to initialize the throttle actuator so that the learning value of the ECU returns to the initial state.

5.Injector Coding:After the ECU or injector is replaced, injector code of each cylinder must be
confirmed or re-coded so that the cylinder can better identify injectors to accurately control fuel injection.

6.SAS Reset: It helps clear the faulty steering angle sensor memories to reset the steering angle and plays an important role in the steering angle sensor calibration.

7.Brake-pad Reset: To deactivating and activate the brake control systems, assist with brake fluid control, open and close brake pads, and set brakes after disc or pad replacement.

8.Gear Learning:Perform gear learning for the car when the engine ECU, the crankshaft position sensor, or the crankshaft flywheel is replaced.

9.IMMO Service:To prevent the car being used by unauthorized keys, the anti-theft key matching function must be performed so that the immobilizer control system on the car identifies and authorizes remote control keys to normally use the car.

10.Battery Matching:Enables you to perform resetting operation on the monitoring unit of battery,in which the original low battery fault information will be cleared.

11.DPF Regeneration:It is used to clear PM (Particulate Matter) from the DPF filter through continuous combustion oxidation mode. Specially works for Diesel Particulate Filter system with DPF.

12.EGR Adaption:This function is used to learn the EGR (Exhaust Gas Recirculation ) valve after it is clean or replaced.

13.Suspension Matching: When replacing the body height sensor in the air suspension system, or control module or when the vehicle level is incorrect, this function can adjust the body height sensor for level calibration.

14.NOx Sensor Reset:If the NOx fault is re-initialized and the NOx catalytic converter is replaced, it is necessary to reset the catalytic converter learned value stored in the engine ECU.

15.Tyre Reset:This function is used to set the size parameters of the modified or replaced tire.

16.Windows Calibration:This feature is designed to perform door window matching to recover ECU initial memory.

17.Stop-start Reset:This function is used to open or close the automatic Start/Stop function via setting the hidden function in ECU (The precondition is the vehicle equipped with hidden function and hardware support)

18. AC Initialization:AC system relearn/initialization must be performed when the vehicle AC ECU or actuator is replaced or the ECU memory is lost.

19. AdBlue Reset:After the diesel exhaust treatment fluid (car urea) is replaced or filled up, the urea reset operation is required.

20. AFS Headlamp Reset:This function enables
you to initialize the adaptive headlamp system.

21. A/F Reset:This function is applied to set or learn air/fuel rate parameters.

22. Gearbox Reset:This function enables you to complete the gearbox self-learning to improve gear shifting quality

23. Coolant Bleeding:Use this function to activate the electronic water pump before venting the cooling system.

24. Transport Reset:To lower vehicle power consumption, user may perform the following operations: limit vehicle speed, not wake up the network for door open and disable remote key, etc. In this case, deactivating the transport mode is needed to recover the vehicle being normal.

25. Seat Calibration:This function is applied to match the seats with memory function that are replaced and repaired.

26. High Voltage Battery Detection: This function is used for high voltage battery diagnosis and status information detection.

27. Sunroof Initialization:This function enables you to set the sunroof lock off, closed when it rains, sliding / tilting sunroof memory function, temperature threshold outside the car ,etc.

28. Engine Power Balance Monitoring:This function is used to monitor crankshaft acceleration in the power stroke of each cylinder, to determine the relative power provided by each cylinder.

29. Language Change:This function is used to change system language of vehicle center console.

30.Intelligent Cruise Control System Reset:This function is used to matching the intelligent cruise control module after it is replaced or repaired.

31.Gas Particulate Filter (GPF) Regeneration:This function is used to perform the GPF replacement or regeneration after the fuel consumption is increased and engine output power is reduced resulting from a long time service of the GPF.
(Note: Available maintenance functions vary depending on the vehicle make, year, and model.)

What's FCA US SGW?

FCA vehicles (Fiat Chrysler Automobiles) have been protected with an SGW security module (Secure since 2017 Gateway) to prevent unauthorized diagnostics and security attacks.

This module limits diagnostic capabilities without authorized diagnostic tools. This limits functions ranging from Bi-directional testing to DTC clearing. The vehicle’s SGW will need to be "unlocked" by the authenticated tester, and the Diagnostic tools.

Now FCA US is using the Automatic Authentication Authority (AutoAuth) to manage user accounts for access to SGW vehicles.

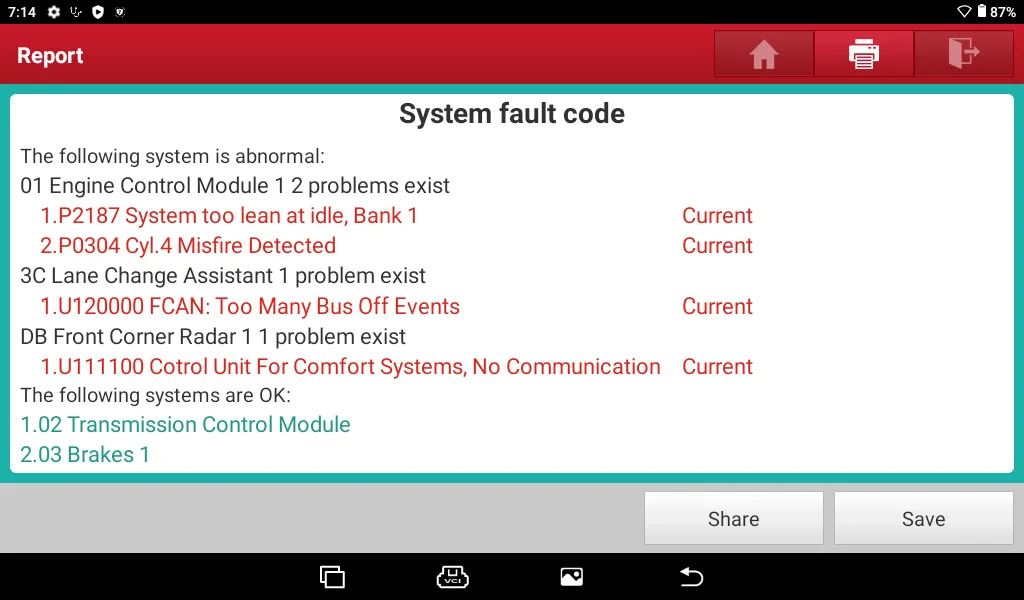

LAUNCH CRP919E BT Support Print Report

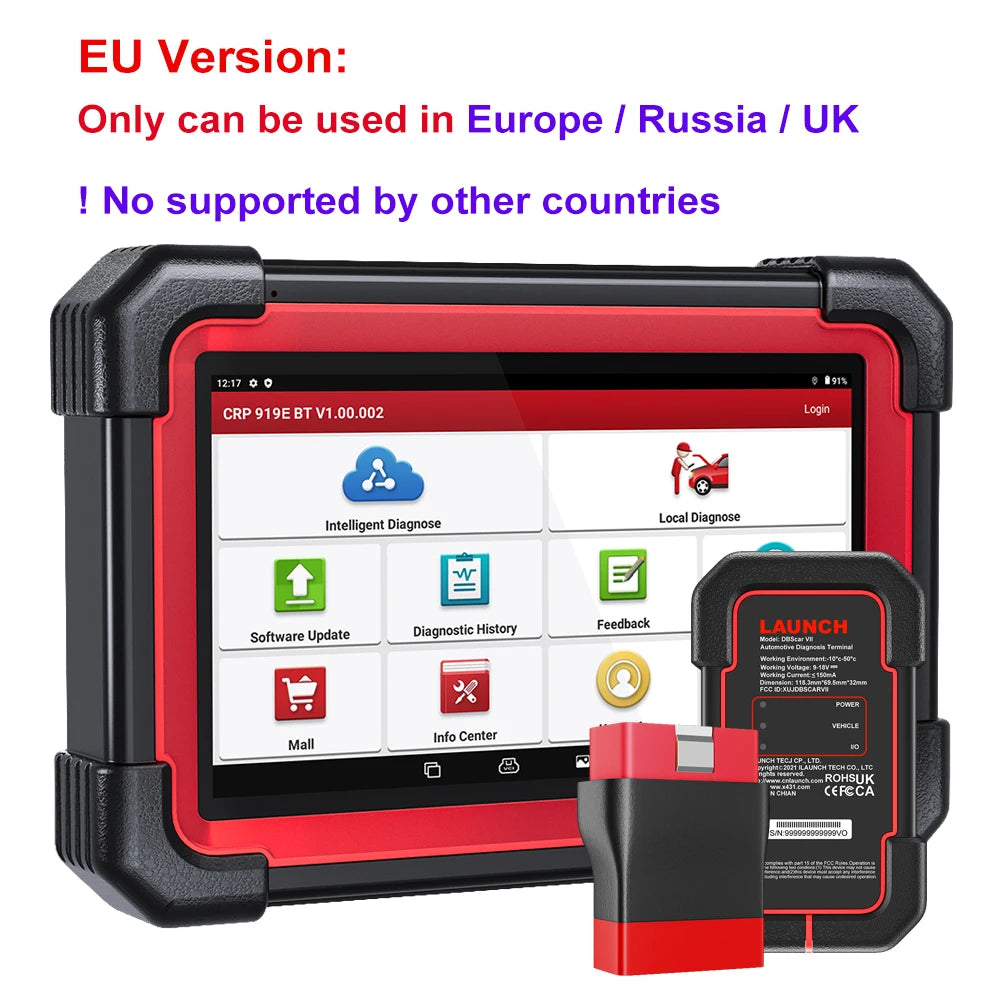

Packing List

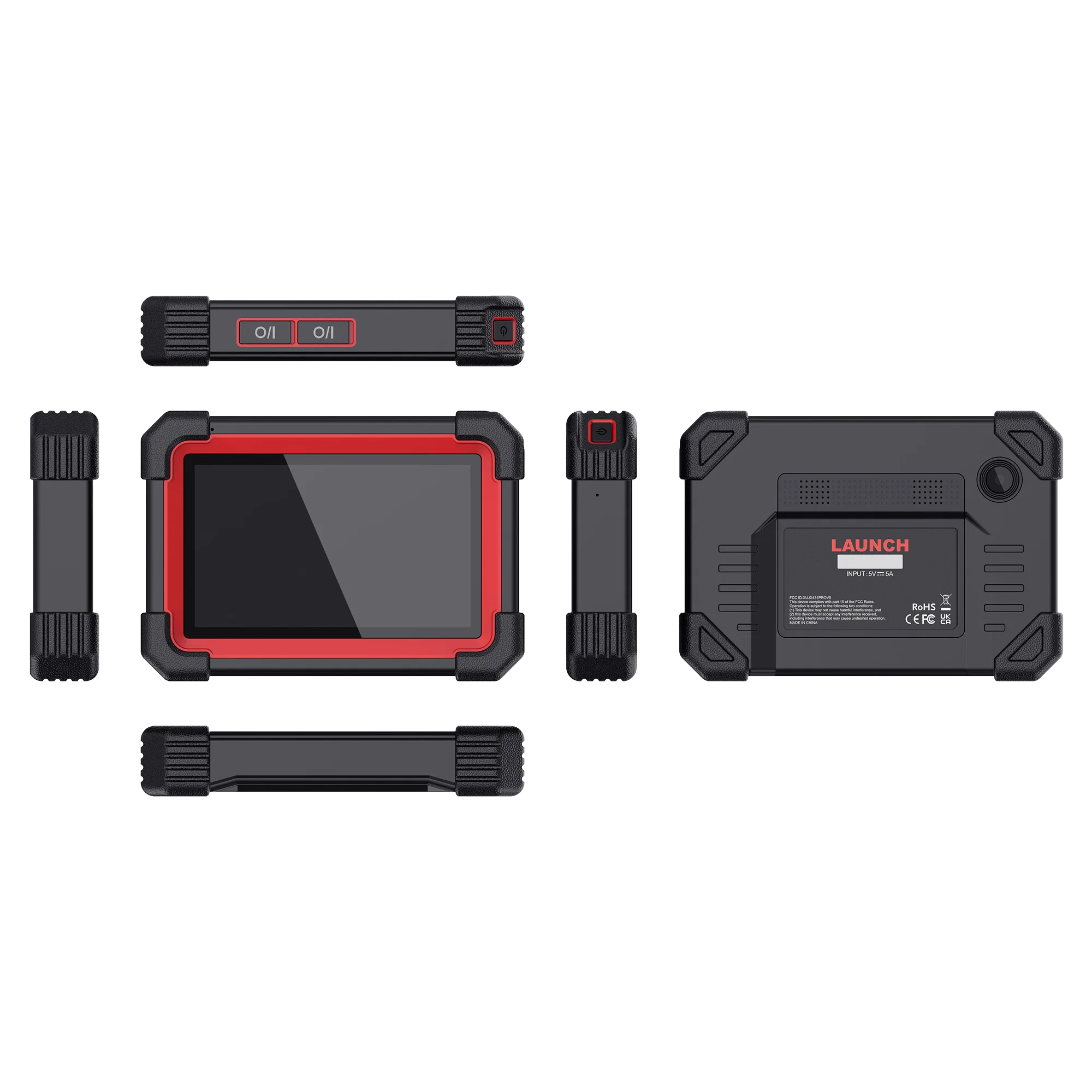

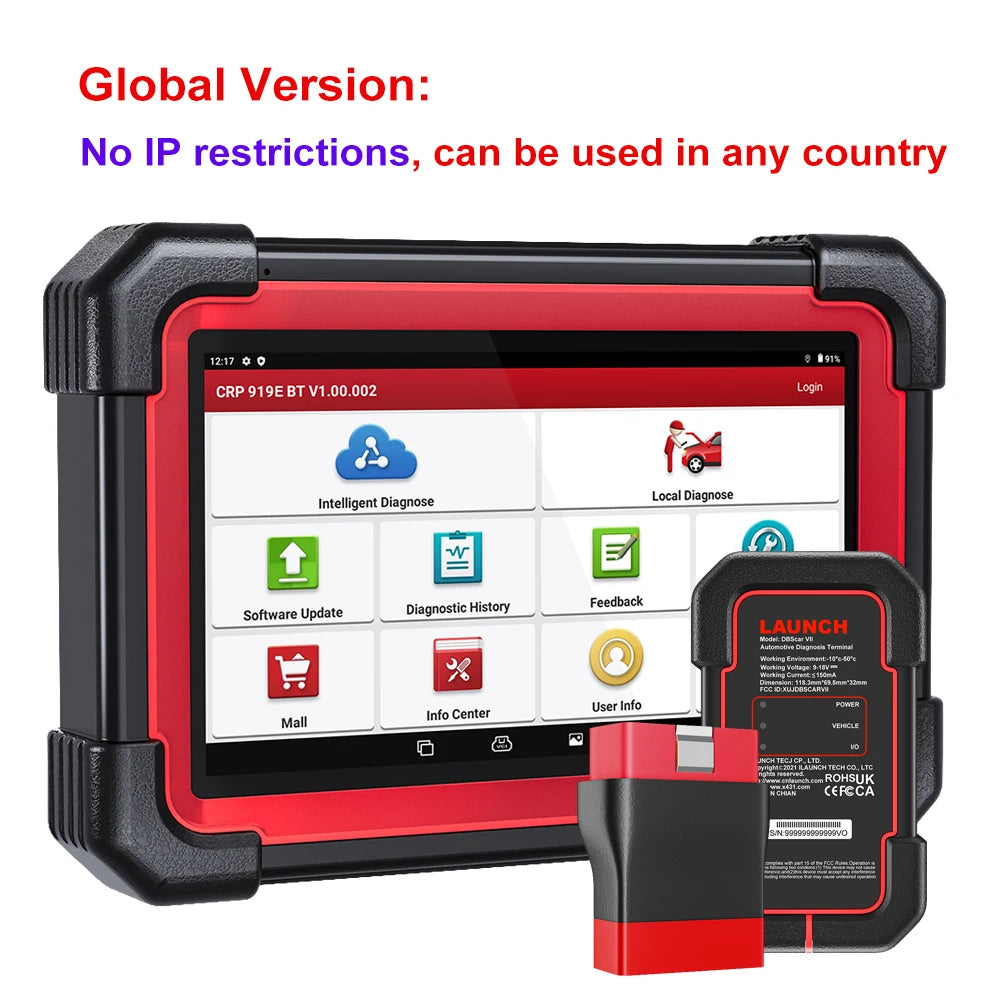

1 * CRP919E Android Tablet
1 * VCI bluetooth connector
1 * Diagnostic Cable
1 * OBDII 16pin connector
1 * Data USB Cable
1 * DC Power Charging Cable ( with US , UK and EU charger )
1 * User Manual
1 * Quick Start Guid
1 * Plactis package
