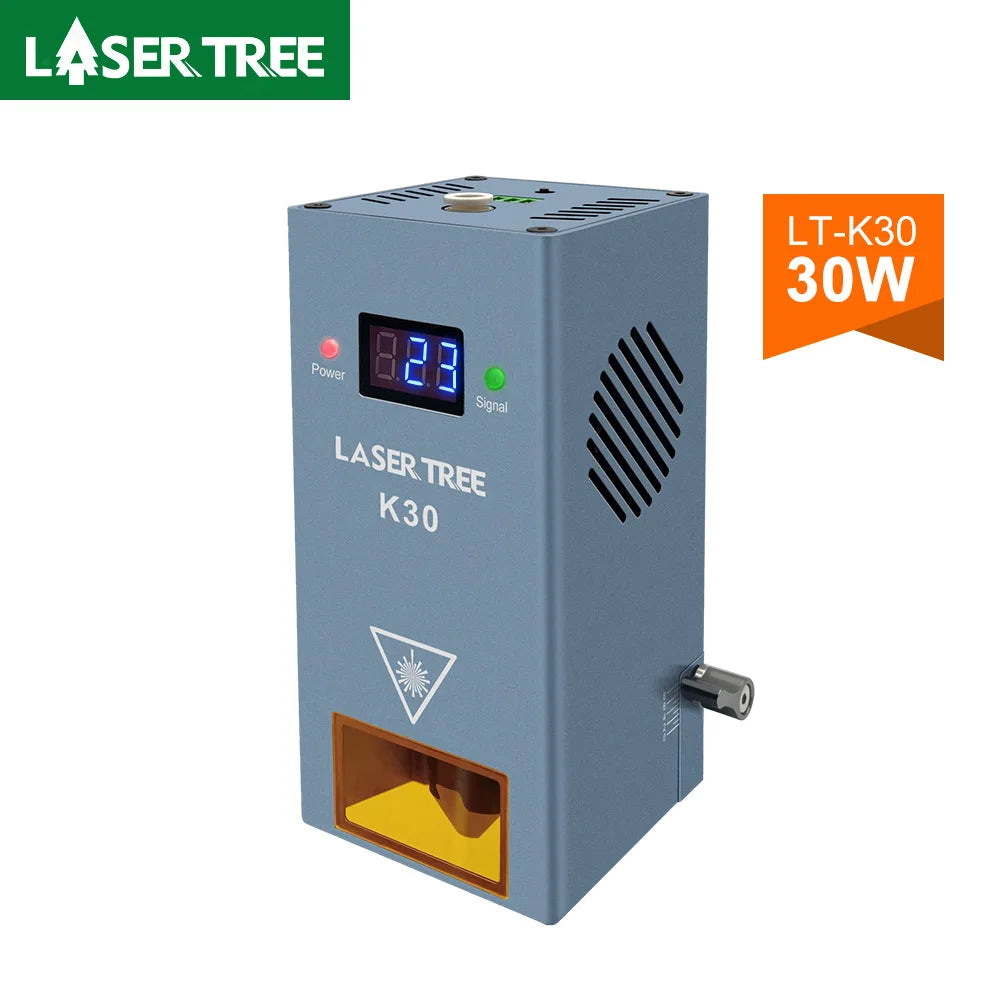

LT-K30 Features:

1. Ultra High Power

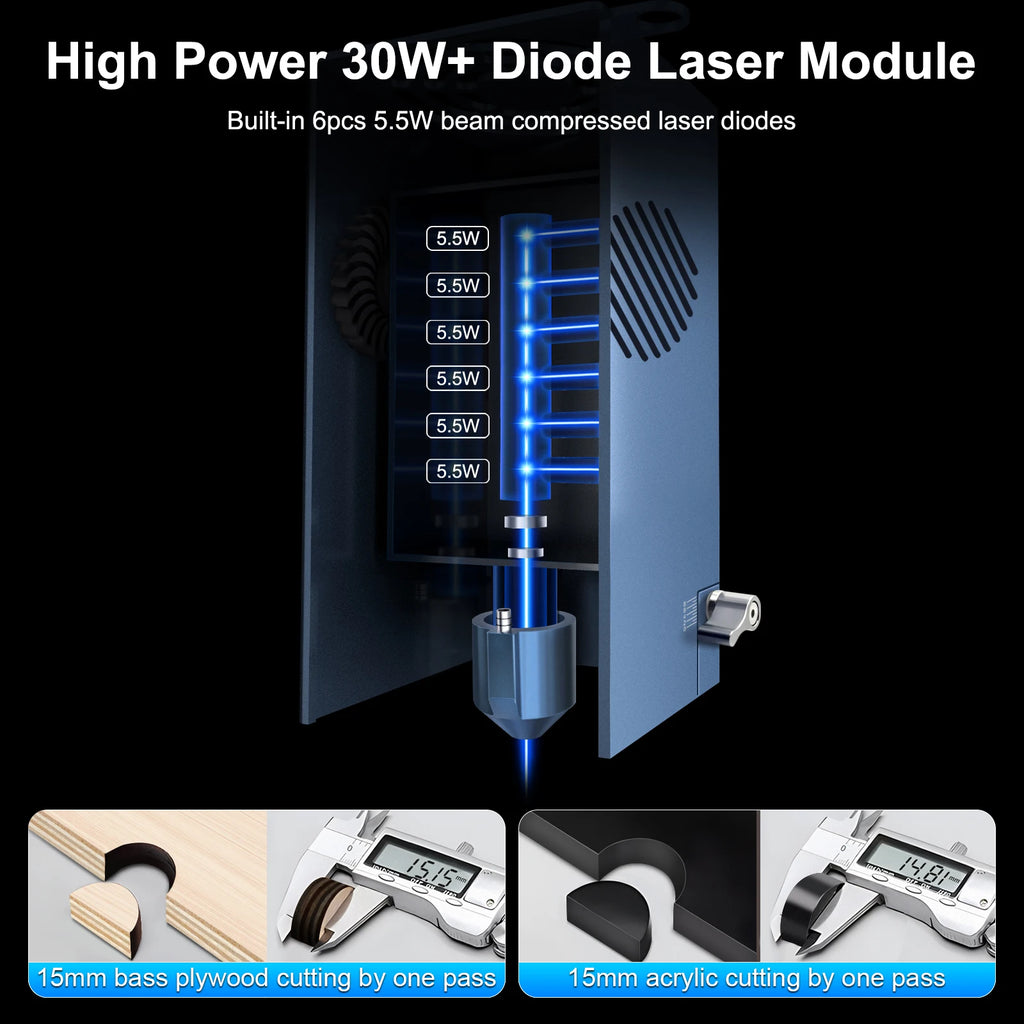

LaserTree K30 is a true 28-32W output optical power laser engraving and cutting module. It uses beam compression technology to combine 6pcs 5.5W laser diodes into a powerful laser beam with 30W laser power.

2. Powerful Cutting Ability

15mm basswood plywood: 180mm/min, one pass

15mm black acrylic: 35mm/min, one pass

20mm pine wood: 120mm/min, one pass

9mm MDF: 300mm/min, 2 passes

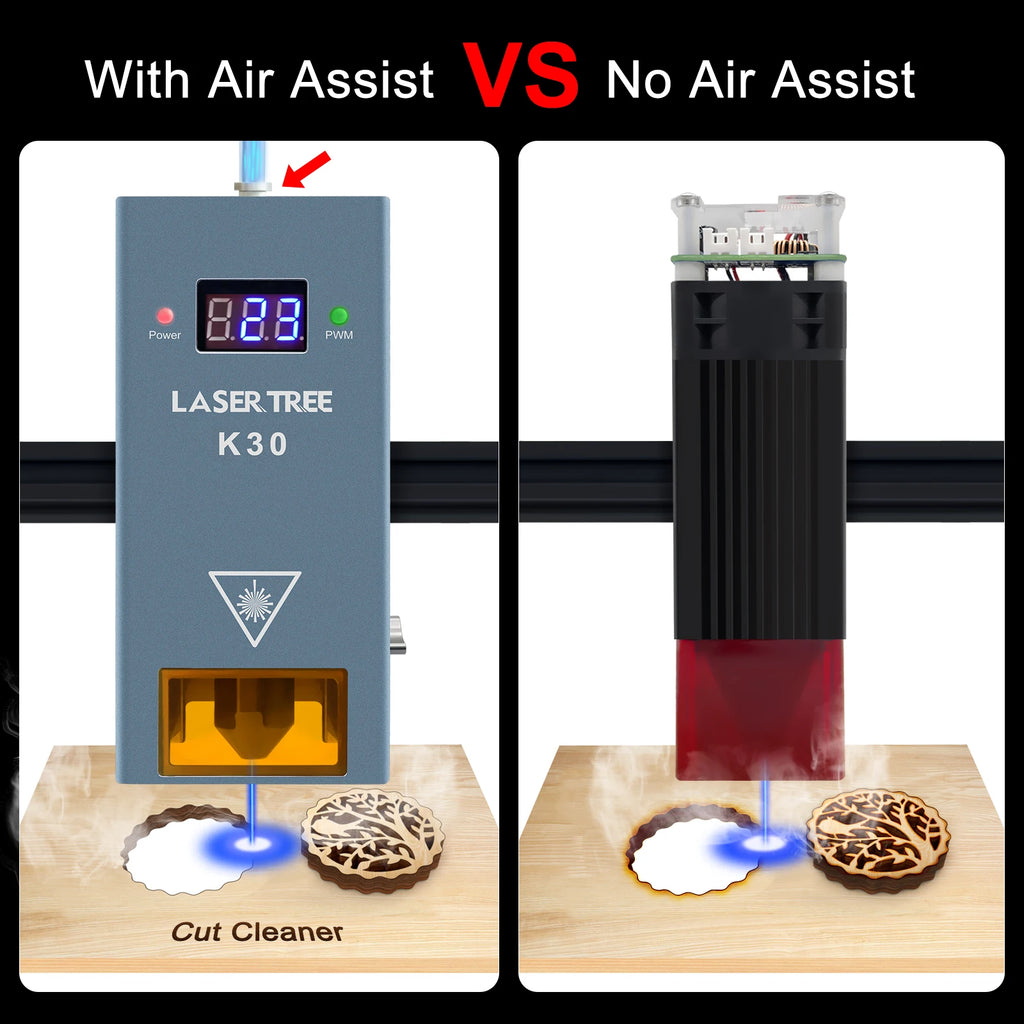

3. Built-in Air Assist Airway & Dual Fan Cooling Design

1>Built-in air assist airway to get clean-cut edges, improve cutting performance.

2>Excellent heat dissipation makes the laser module maintain a stable cutting ability and prolong service life.

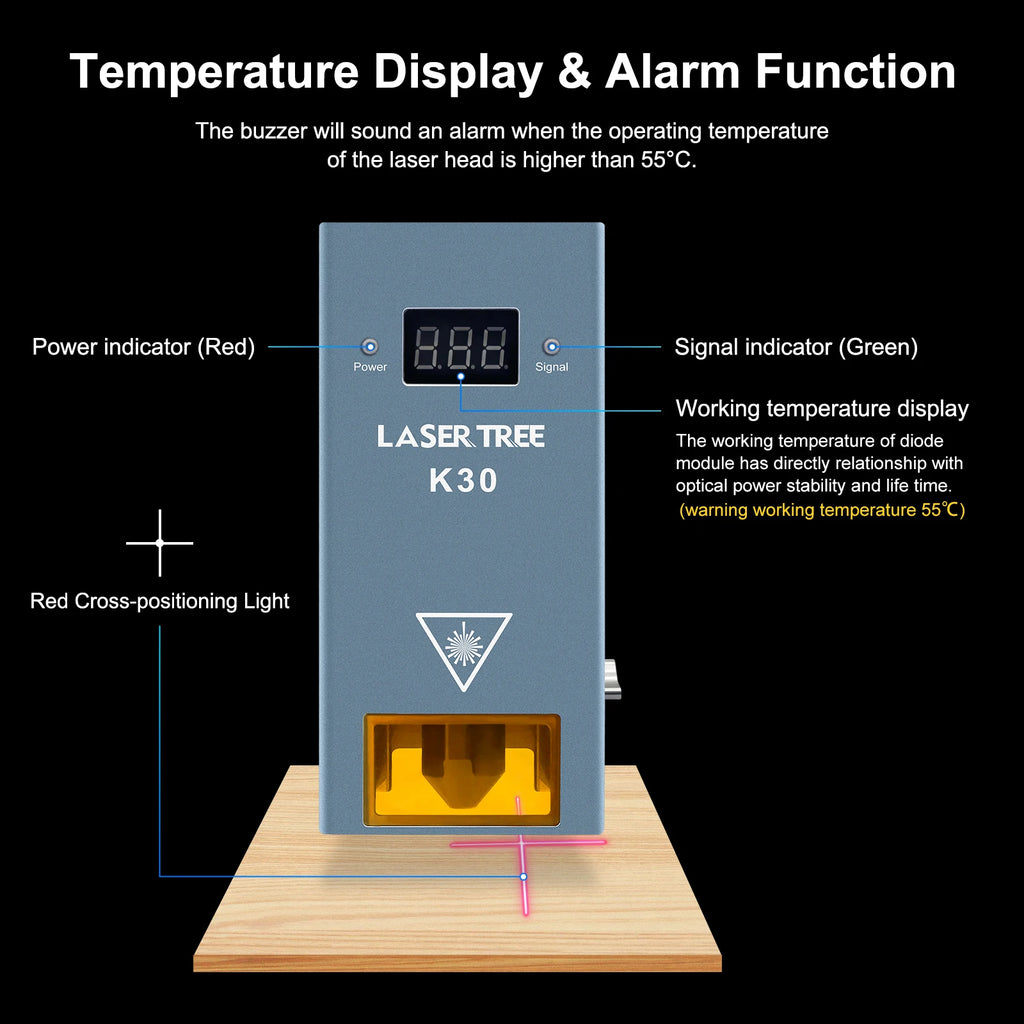

4. Temperature Display & Alarm Function

Excessive working temperatures can reduce the life time of the laser head at an accelerated rate.

LaserTree K30 create a solution with working temperature display, so that you can check the internal temperature of the module easily. When the working temperature of laser module over 55 ℃, it will sound an alarm through the buzzer.

5. Red Cross Line Locating

The working frame can be positioned by red crosshair, it is helpful for improving the convenience of the secondary cutting and engraving as well.

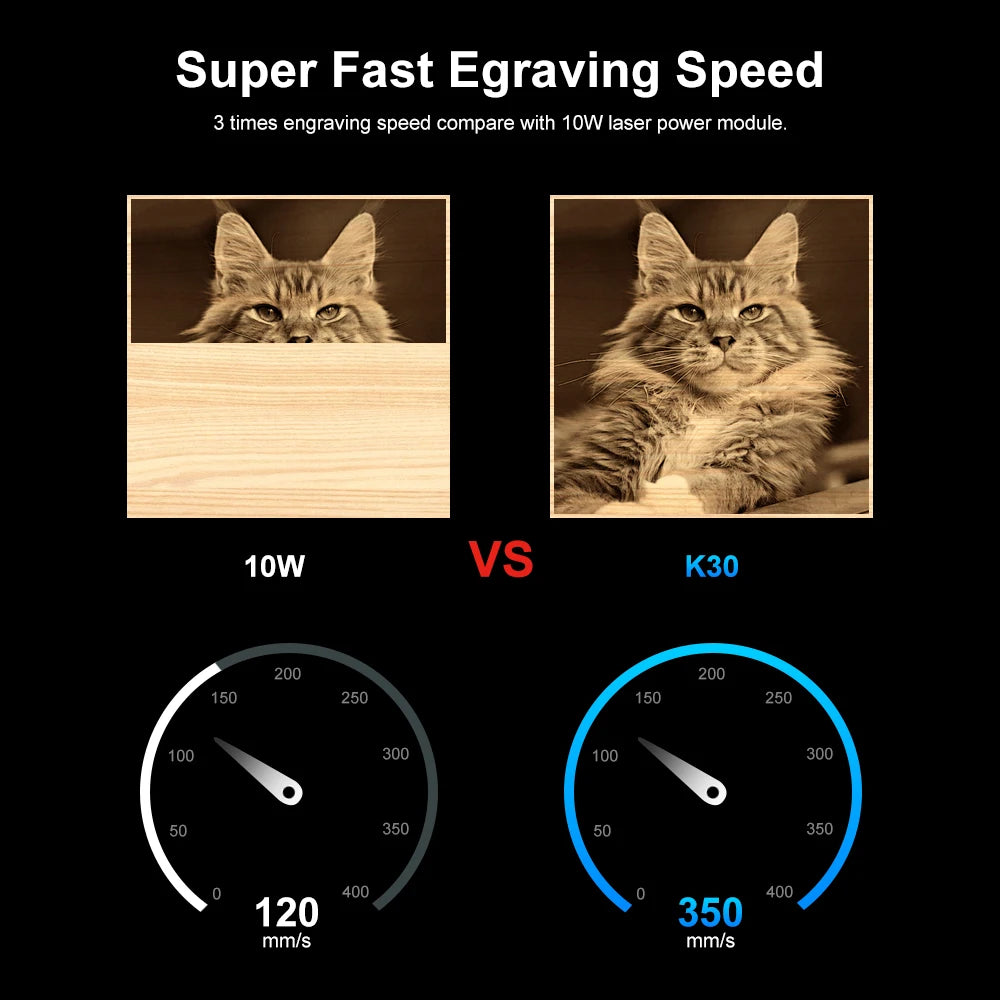

6.Super Fast Egraving Speed

3 times engraving speed compare with 10W laser power module.

7. Copper Core Protection Lens.

Easy to clean and replace when the lens is contaminated or dusty.

8. Laser View Window

Anti-blue light view window with optical glass material, protective your eye from blue light, no fear of fiames.

9. Widely Compatible Design

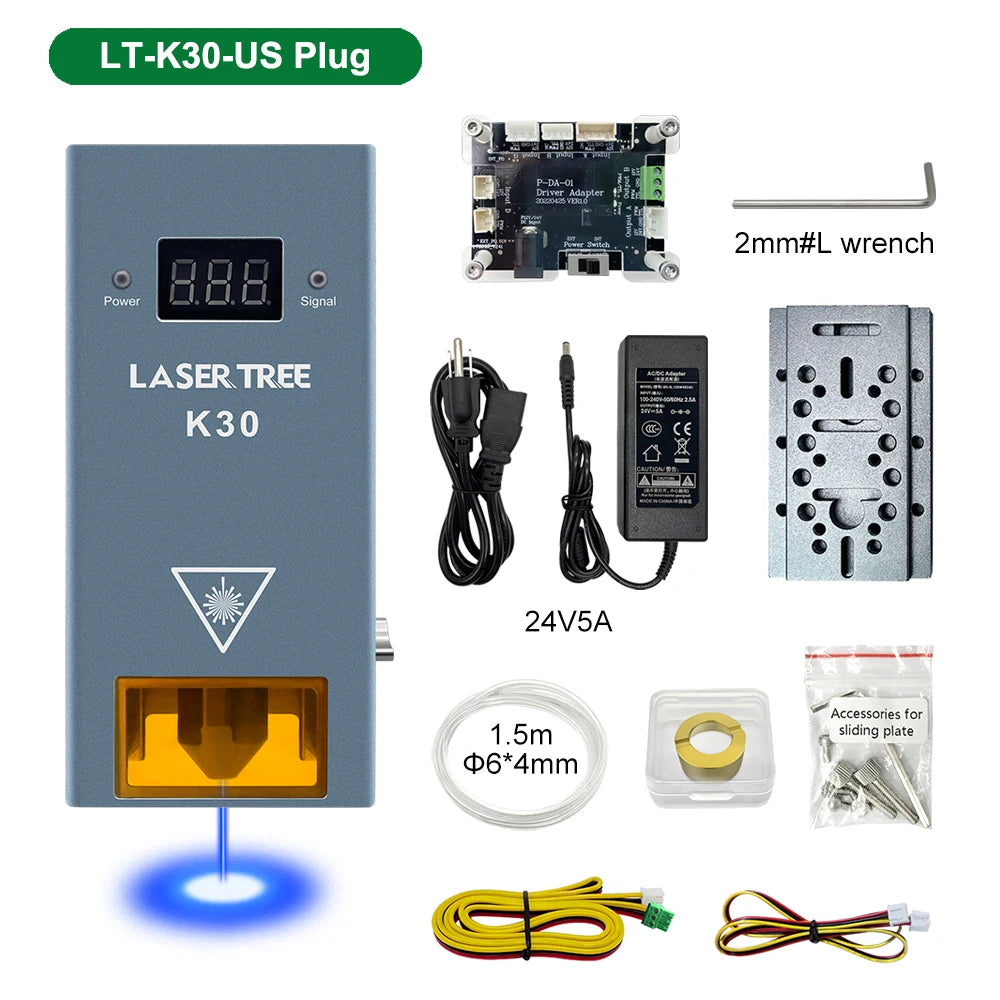

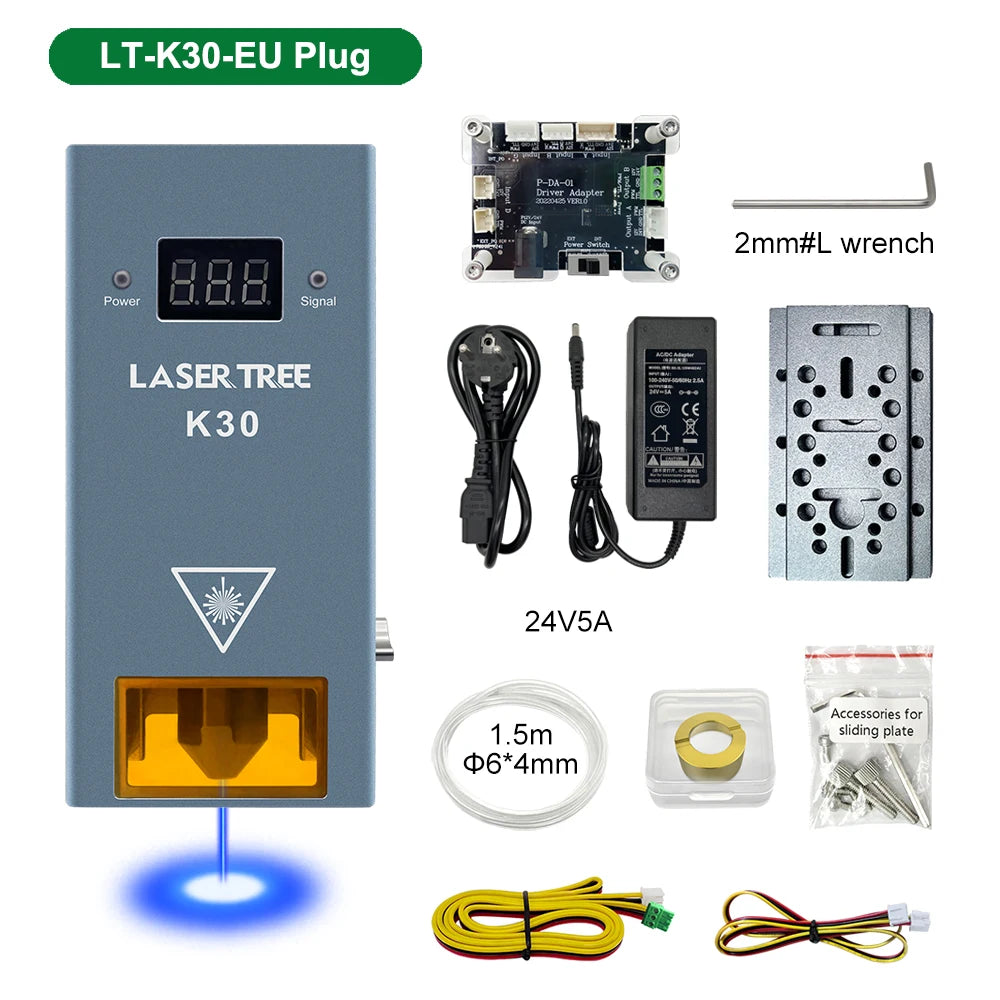

In order to improve the compatibility to different laser engraver machine, K30 provide a solution by adapter board for electric compatibiliy, and sliding plate with multi holes for installation compatibility.

LT-K30 laser module can be installed on Z*aitu,O*tur,Tw* Trees,S*ulpful9, Xtool, A*omstack and other models of DIY laser engraving machines.

(please contact us if you are not sure about compatibility)

Lens maintenance

When the laser module is not used for a long time, please ensure that the lens is not polluted by dust.

When you replace the air nozzle, please ensure that your operation will not pollut the lens. Finger prints or dust on the lens will weaken the output power of the laser module, or even damage the lens.

When you find the cutting ability decreases, the lens might be not clean. Please use a clean alcohol swab to clean it according to the following figure.

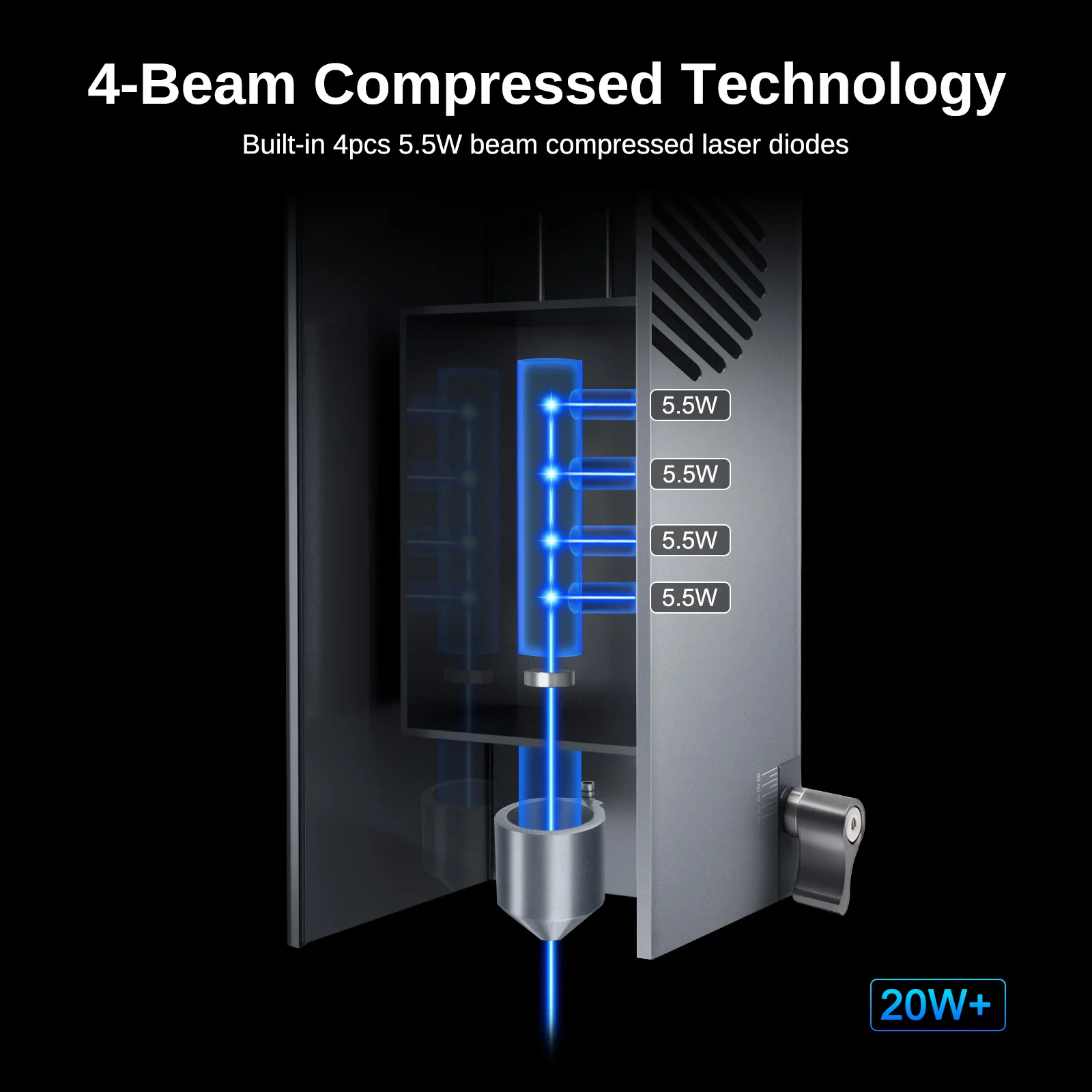

LaserTree K20 is a true 19-21W output optical power laser engraving and cutting module. It uses beam compressed technology to combine 4pcs 5W laser diodes into a powerful laser beam with 20W laser power.

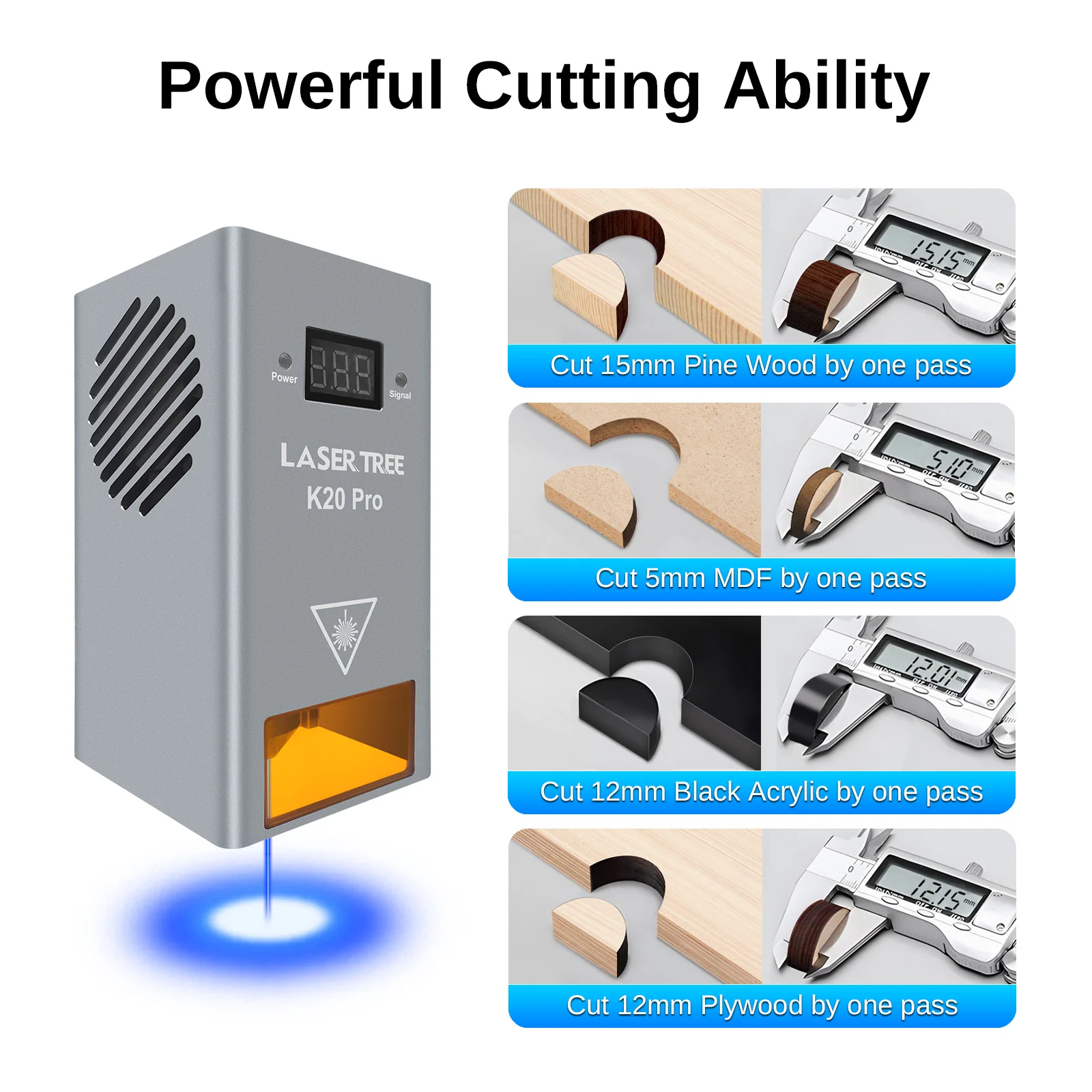

2. Powerful Cutting Ability

12mm basswood plywood: 100mm/min, one pass

15mm black acrylic: 15mm/min, one pass

15mm pine wood: 100mm/min, one pass

9mm MDF: 100mm/min, 2 passes

3. Built-in Air Assist Airway & Dual Fan Cooling Design

1>Built-in air assist airway to get clean-cut edges, improve cutting performance.

2>Excellent heat dissipation makes the laser module maintain a stable cutting ability and prolong service life.

4. Working Status Indicator

The electrical connection status can be easily checked by the "Power" and "Signal" LED indicator.

5. Temperature Display & Alarm Function

Excessive working temperatures can reduce the life time of the laser head at an accelerated rate.

LaserTree K20 create a solution with working temperature display,so that you can check the internal temperature of the module easily. When the working temperature of laser module over 55 ℃, it will sound an alarm through the buzzer.

6.Red Cross Line Locating

7. Copper Core Protection Lens.

Easy to clean and replace when the lens is contaminated or dusty.

8. Laser View Window

Anti-blue light view window with optical glass material, protective your eye from blue light, no fear of fiames.

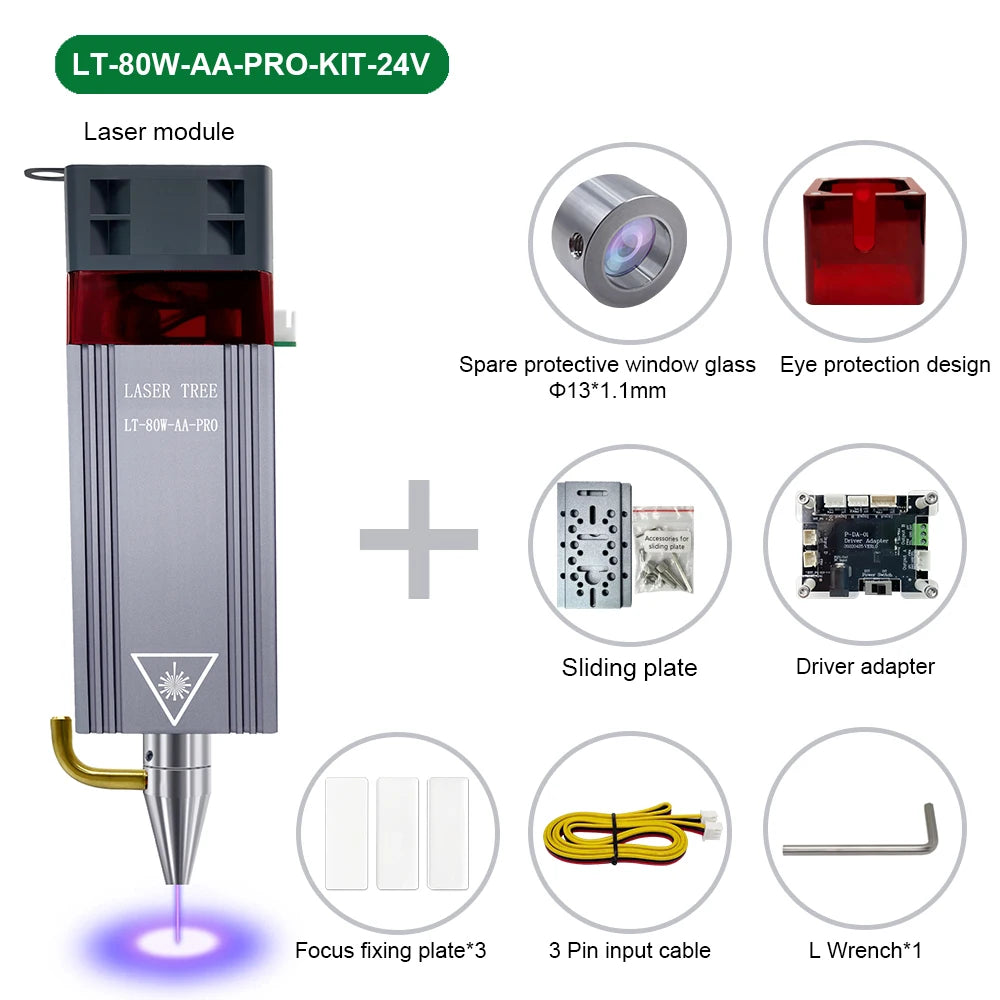

LT-80W-AA-PRO Features

1.LT-80W-AA-Pro

It has an upgraded nozzle compared to the previous LT-80W-AA. The difference of this nozzle is that it has an advanced hydrodynamic design that makes better use of air pressure. When using the same air compressor, the upgraded version has a faster jet airflow.

2.With the air asssit nozzle

The laser head comes with a specially designed air assist nozzle. When cutting with this laser head, the air assit system will blow air through the air nozzle. That will bring you excellent cutting experience and greatly reduce burned marks.

Air pump suggestion: Air pressure and capacity: ≥0.027kPa, 27L/min

3. Remarkable cutting ability

Cutting 8mm bass plywood ,120mm/min ,one pass.

Cutting 5mm bass plywood, 50mm/min, one pass.

Cutting 5mm MDF by 2 passes, 150mm/min , 2 passes.

4.With the laser protective cover

Comes with a removable protective cover. Whether engraving or cutting, use this shield to filter blue light and work without laser glasses, convenient and fast. It's also easy to remove if you don't need it.

5. Widely Compatible Design

LT-80W-AA-Pro laser module can be installed on Z*aitu,O*tur,Tw* Trees,S*ulpful9, Xtool, A*omstack and other models of DIY laser engraving machines.

For cutting work

The ideal position of the focal point is in the middle of the material, the cutting focal point of LT-80W-AA is 45mm, the length of the air nozzle is 39mm, so the focal point position is 6mm below the air nozzle. For example, if you want to cut 8mm plywood, the distance from the air nozzle to the surface of the material should be 6mm-8mm/2=2mm.

For engraving work

The focal point is at the surface of the material.

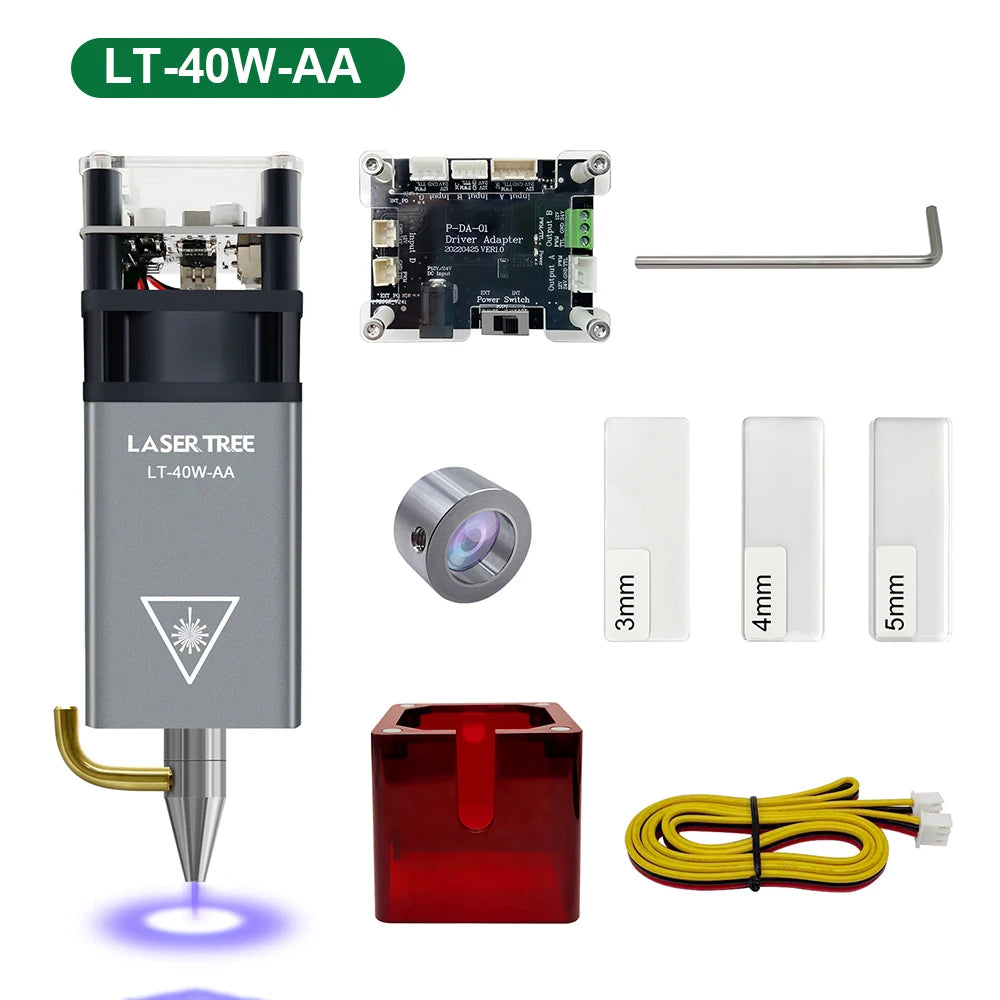

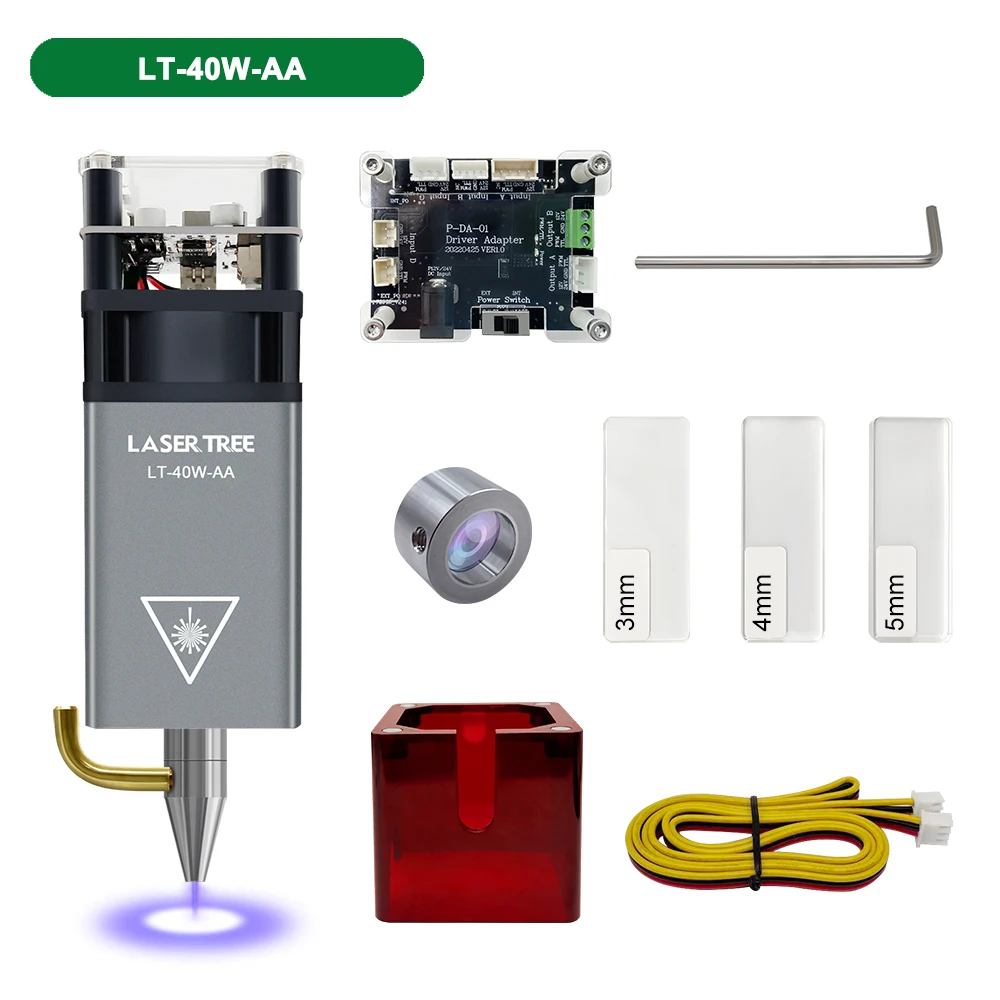

LT-40W-AA

1. Optical power is 5W (±0.5W), electrical power is 12V (1.5A-2A).

2. It can cut through 4mm plywood by one pass, the speed is 190mm/min, 100% power.

3. High precision engraving resolution 0.08mm.

4. With air assist, when performing laser cutting operations, the air assist system blows air through the air nozzle to remove dust and debris to improve cutting performance and reduce burn marks, and can also prevent the dust and debris generated during the cutting process from contaminating the optical lens and lens surface , thereby increasing the service life of the lens.

5. Upgraded Magnetic eye protective cover, easy to remove and install.

For cutting work:

The ideal position of the focal point is in the middle of the material, the cutting focal point of LT-40W-AA is 45mm, the length of the air nozzle is 38mm, so the focal point position is 7mm below the air nozzle. For example, if you want to cut 4mm plywood, the distance from the air nozzle to the surface of the material should be 7mm-4mm/2=5mm.
