Description
SPECIFICATIONS
1: Laser Engraver
2: Laser Engraving Machine
3: CNC Router Milling Cutting Machine
4: cnc laser cutting plywood
5: cnc machine
6: cnc router
7: cnc machine for metal
Brand Name: singasong
CNC or Not: CNC
Certification: CE,FCC,RoHS
Condition: New
Controller: GRBL
High-concerned chemical: None
Is Smart Device: No
Model Number: TTC450
Origin: Mainland China
Video Tutorial:

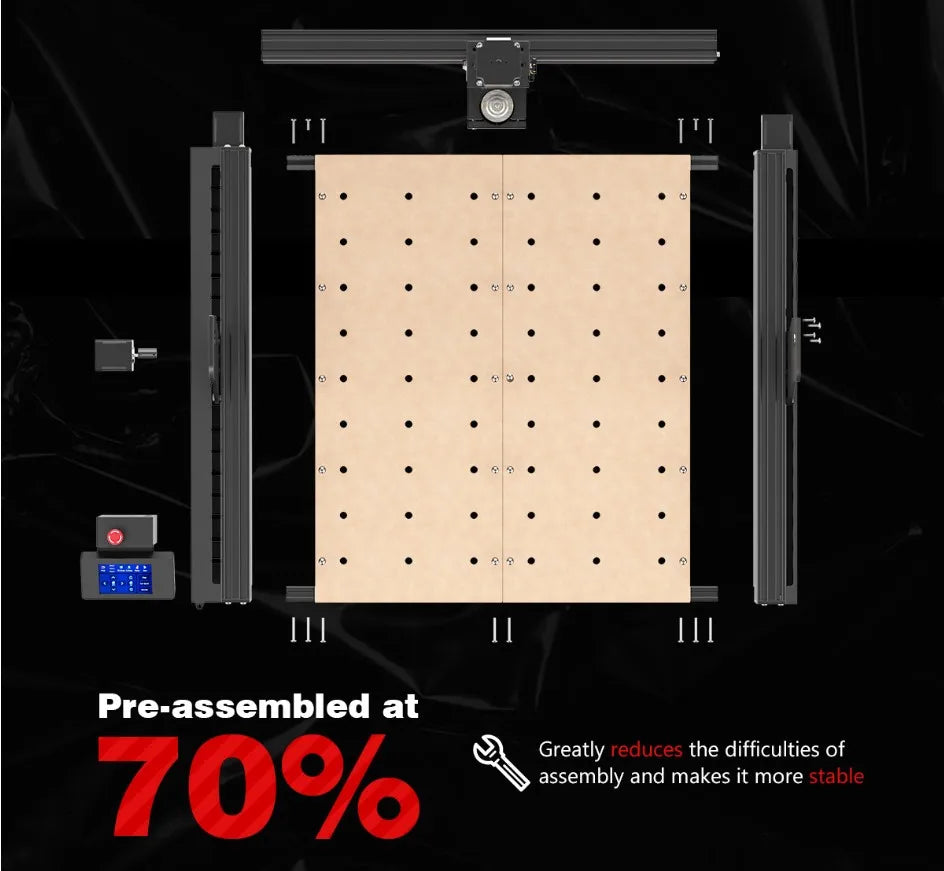

Machine assembly: https://www.youtube.com/watch?v=P3QToopLiu4&t=13s
Offline + online control: https://www.youtube.com/watch?v=1LqahJyaNl0

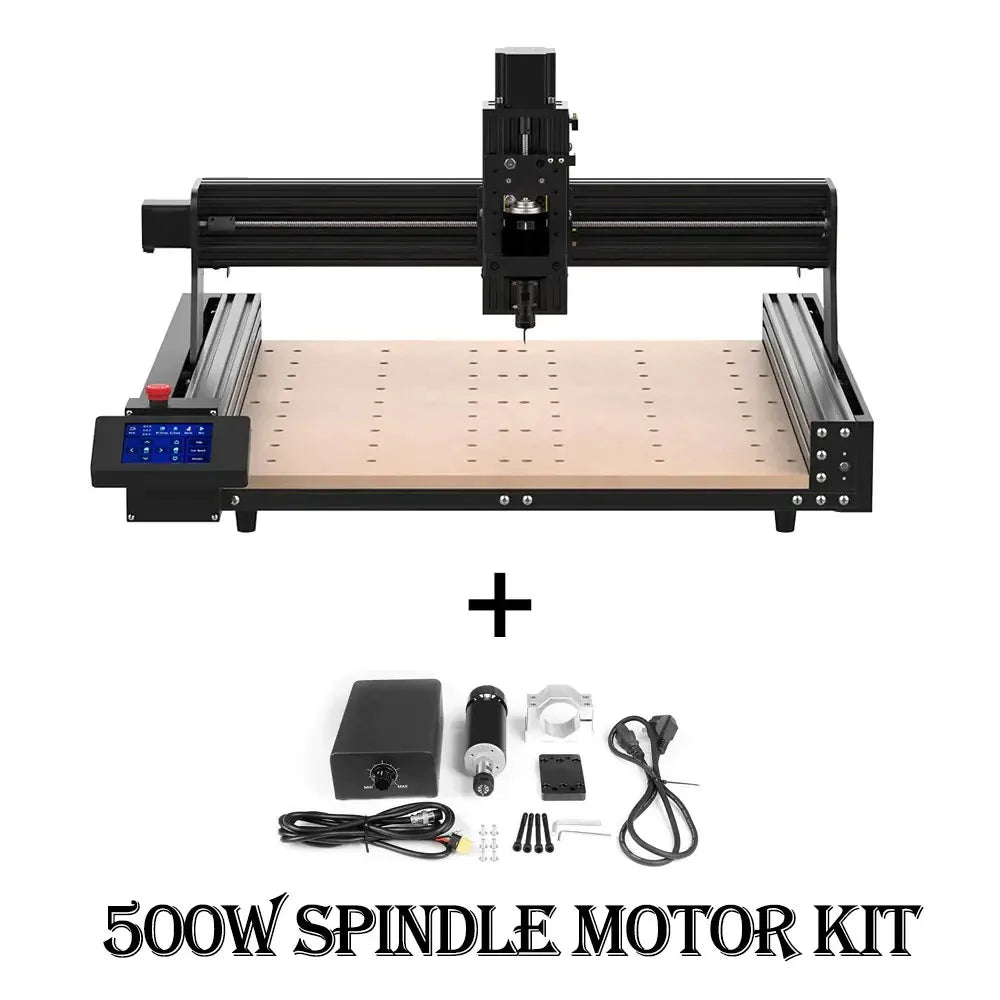

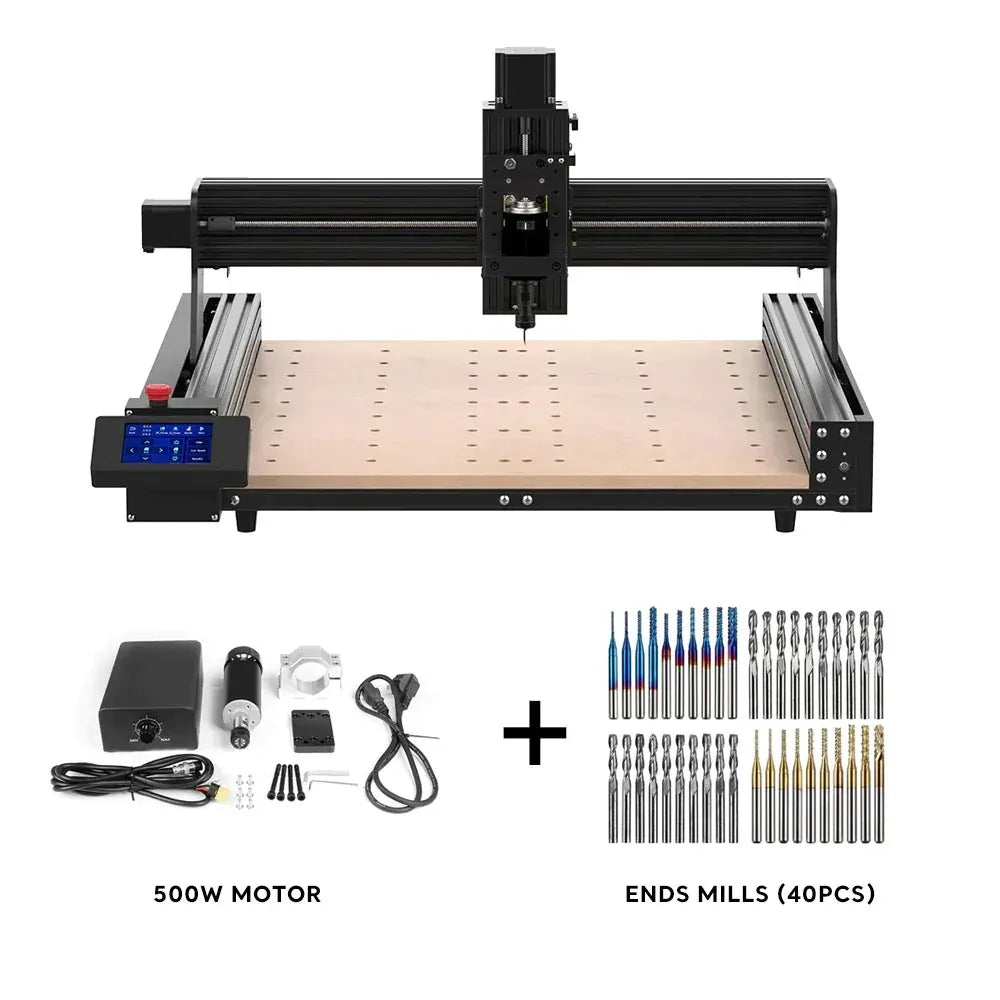

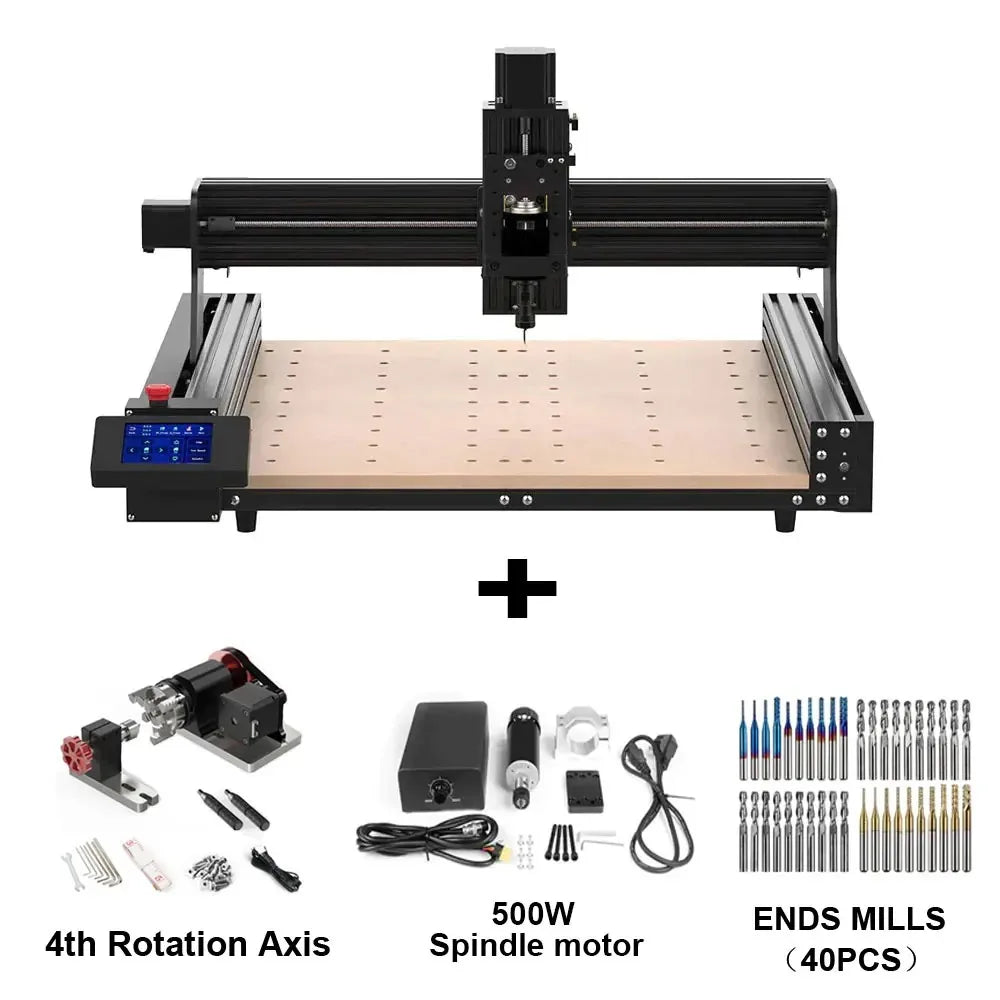

Install 500W spindle motor: https://www.youtube.com/watch?v=9oBtbf3VknQ

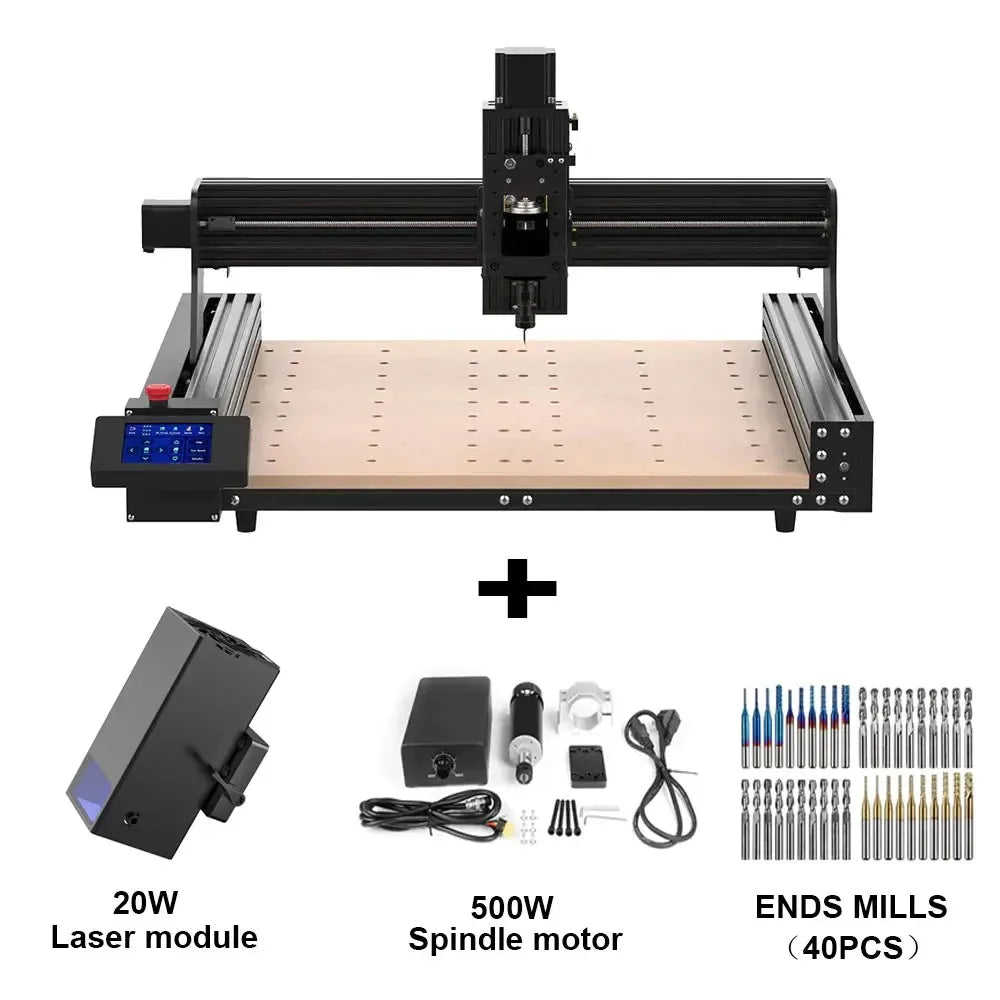

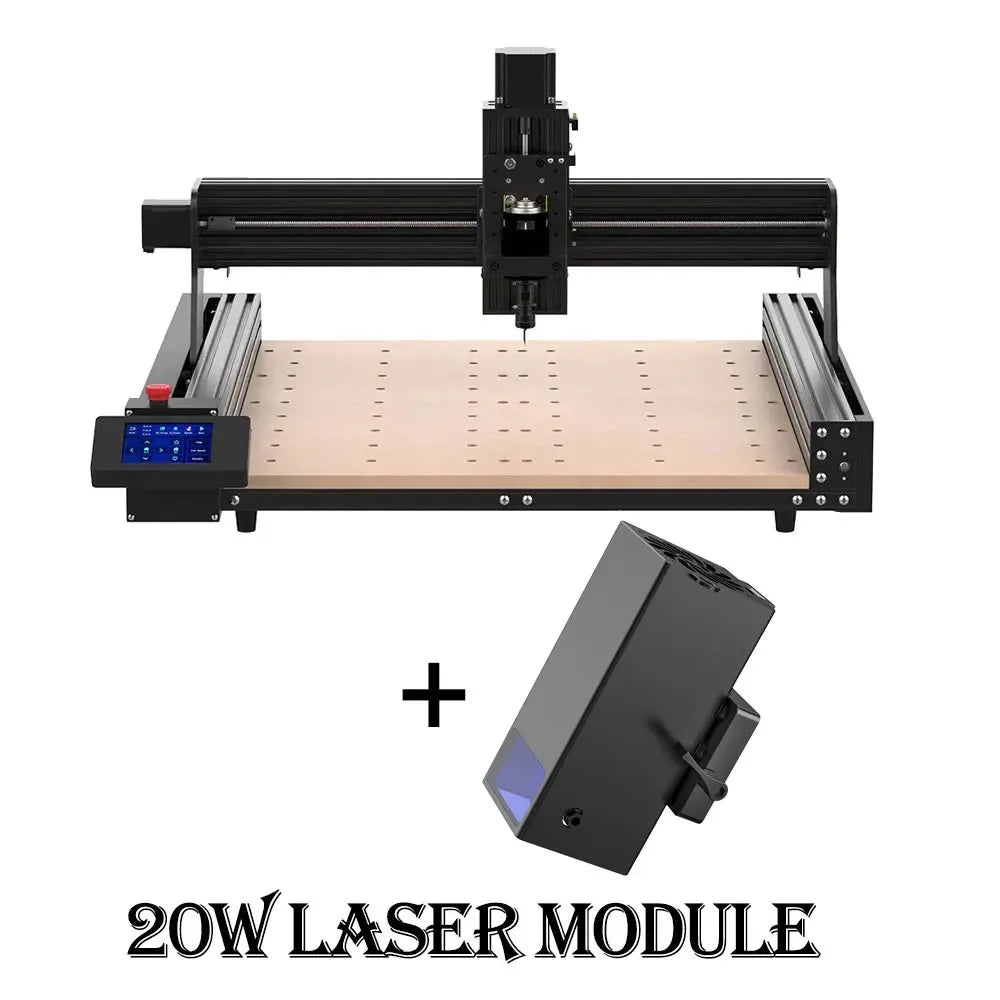

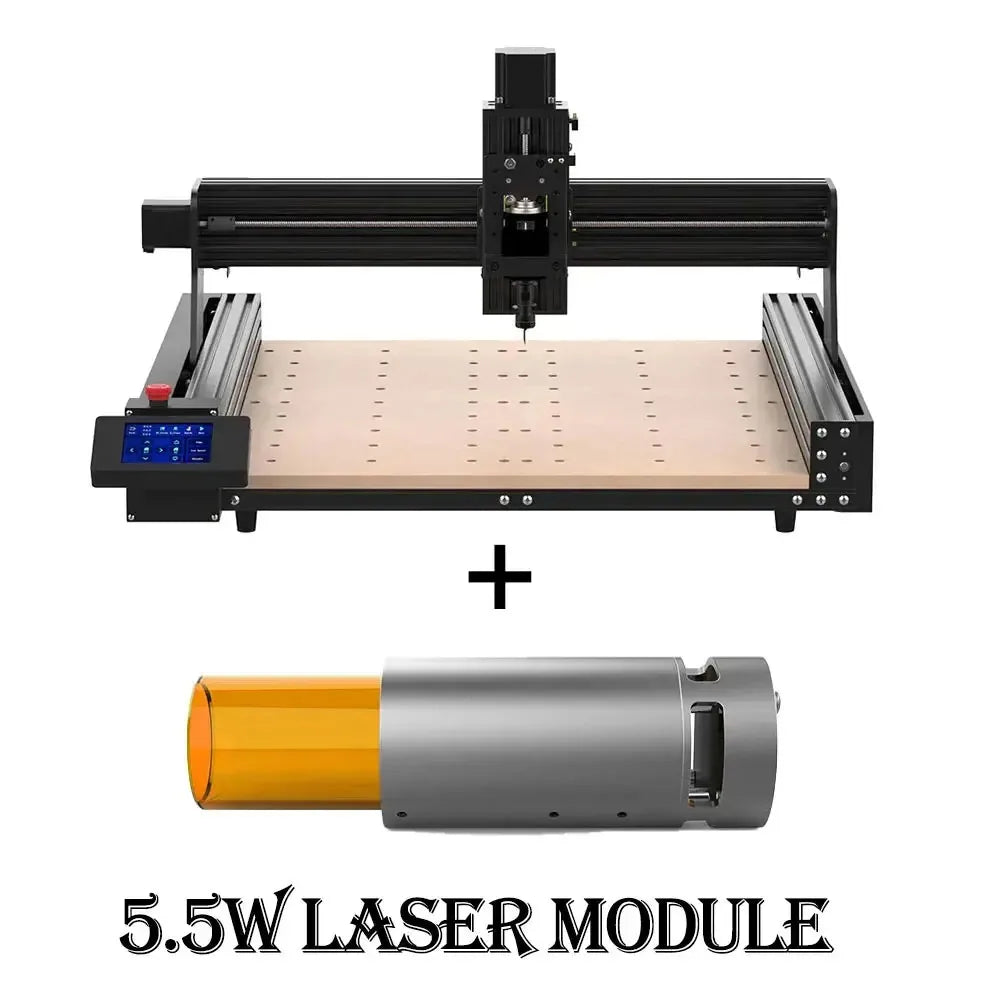

Install 15W/40W Laser Module: https://www.youtube.com/watch?v=4DGHKD7g5A4
Install 96W Laser Module: https://www.youtube.com/watch?v=N0Xp-tzReak

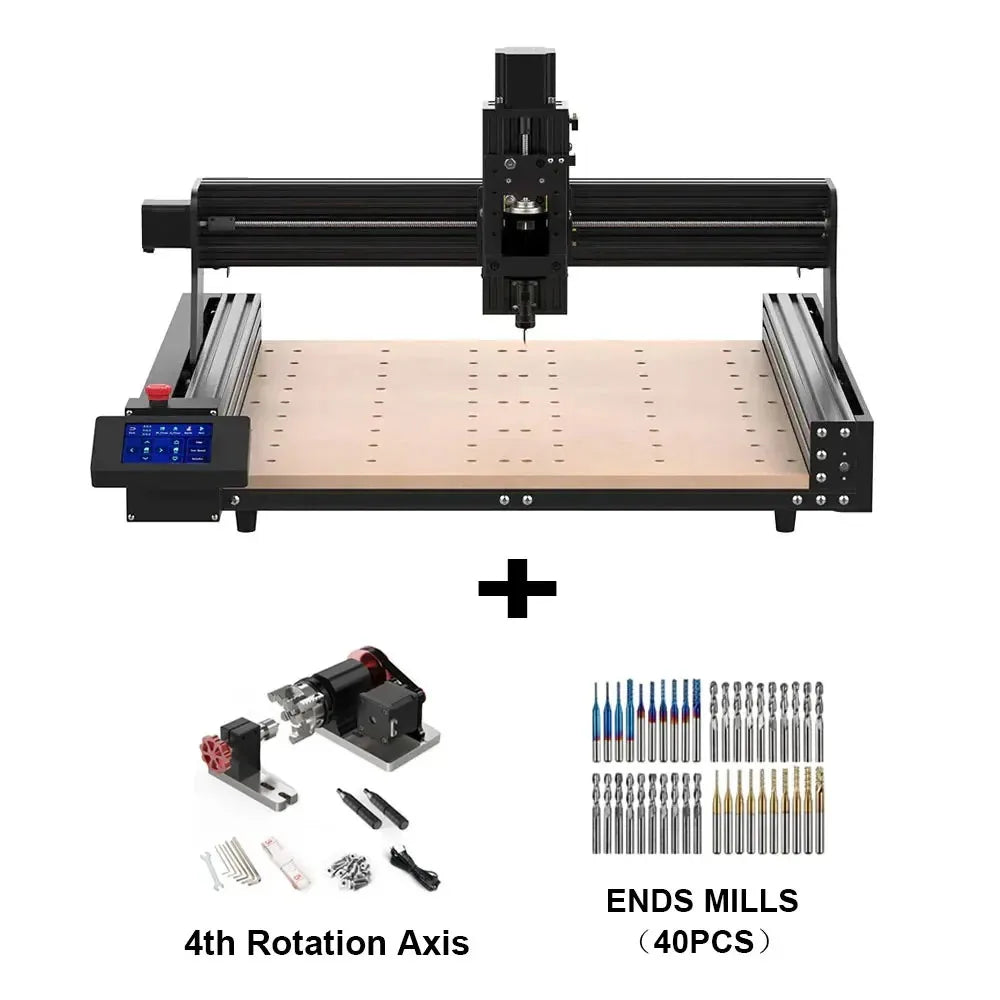

Brand:Two Trees

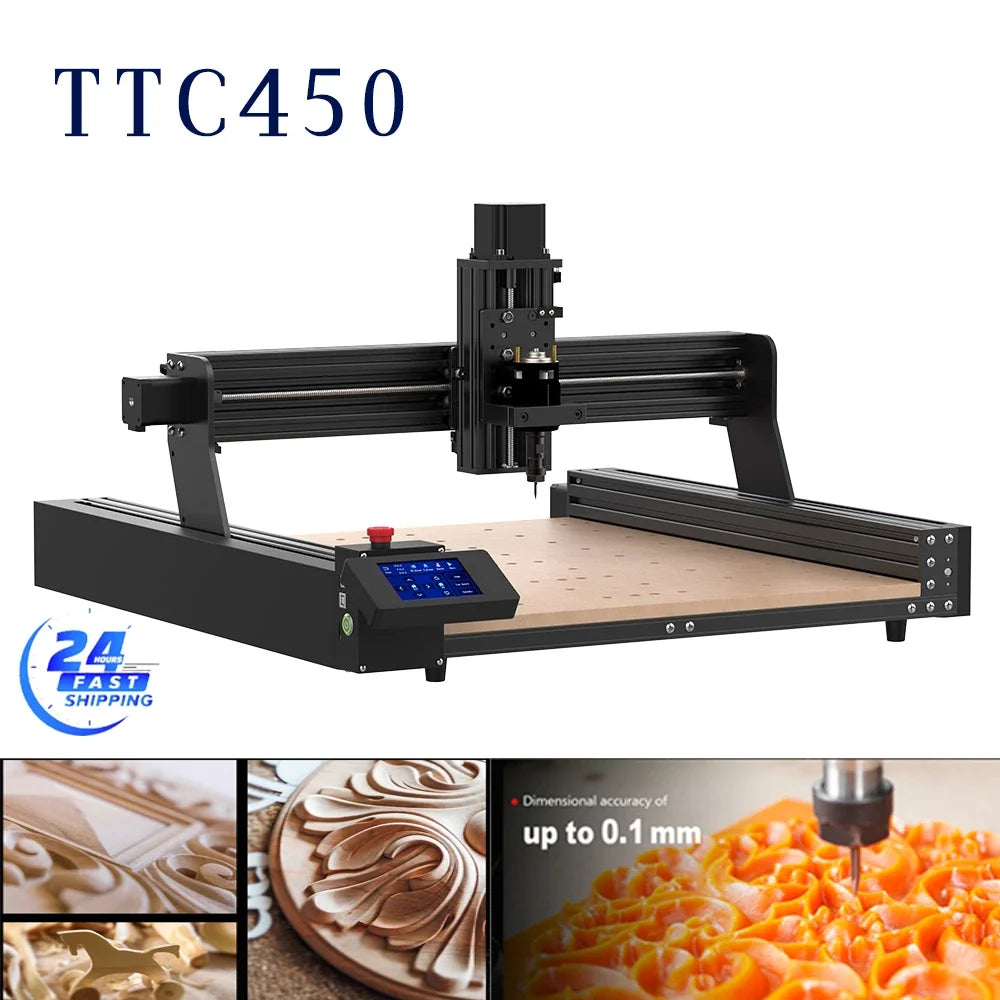

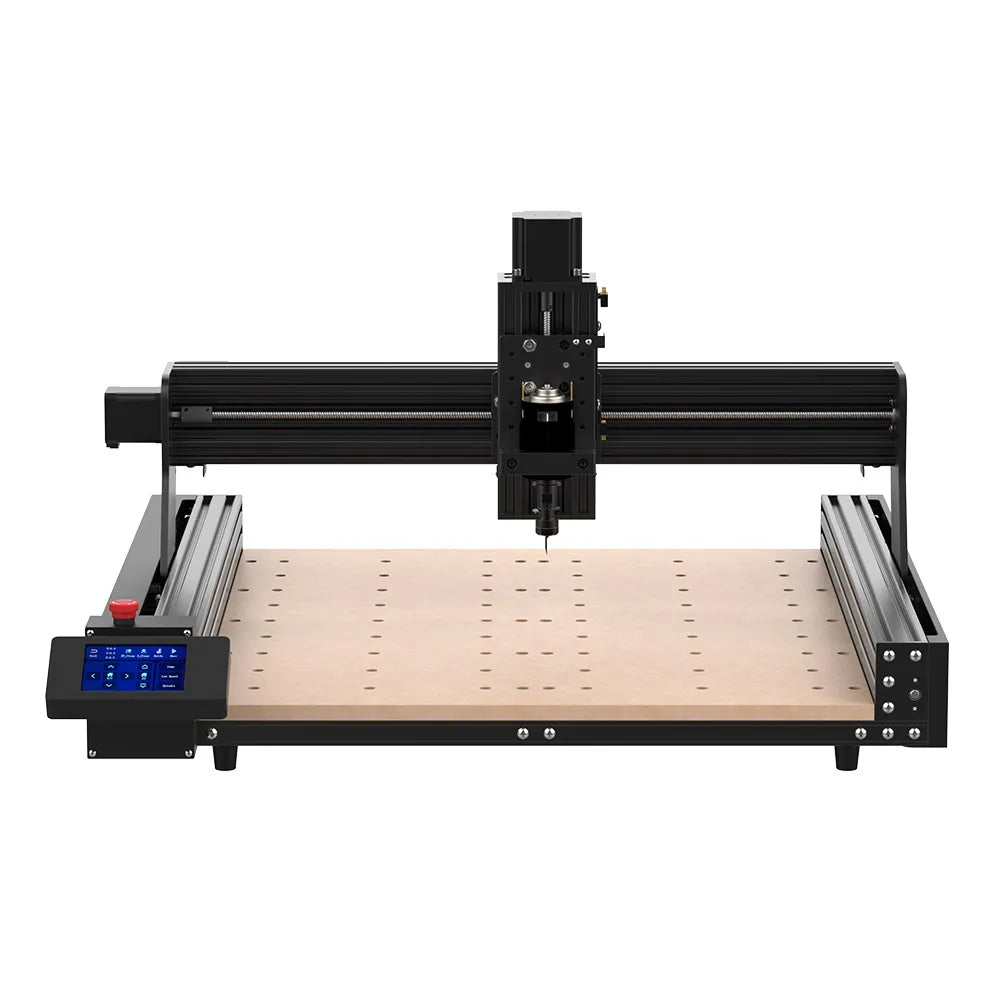

Model: TTC-450

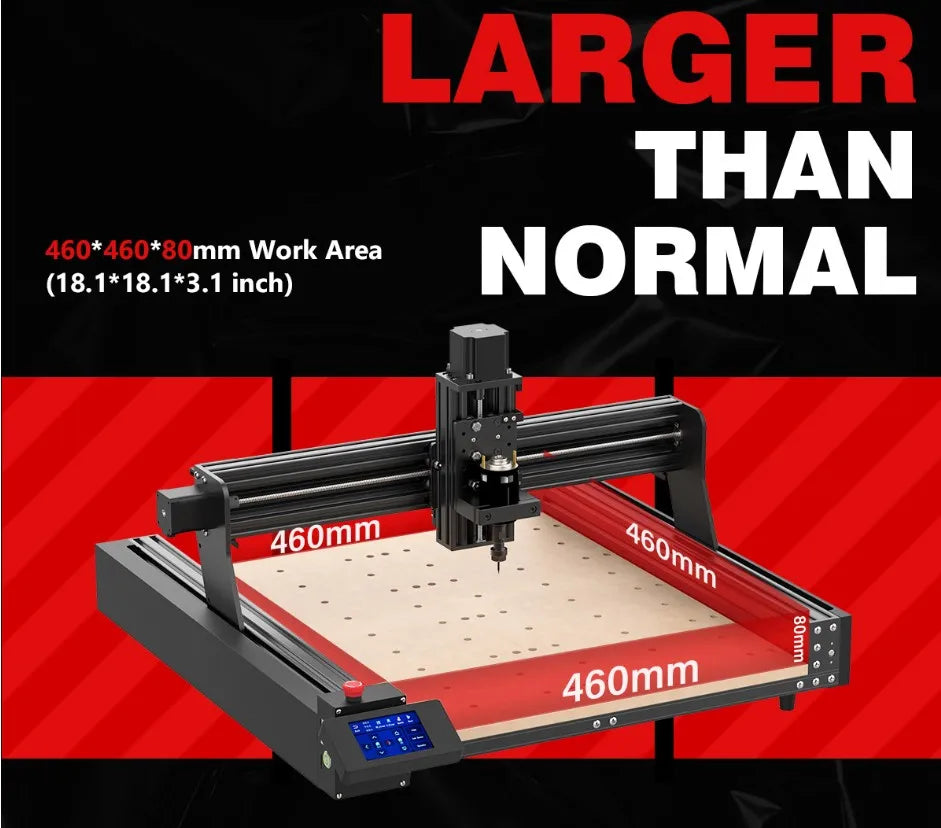

Engraving area: 460mmX460mmX80mm
Power adapter power:120W, 5A, 24V

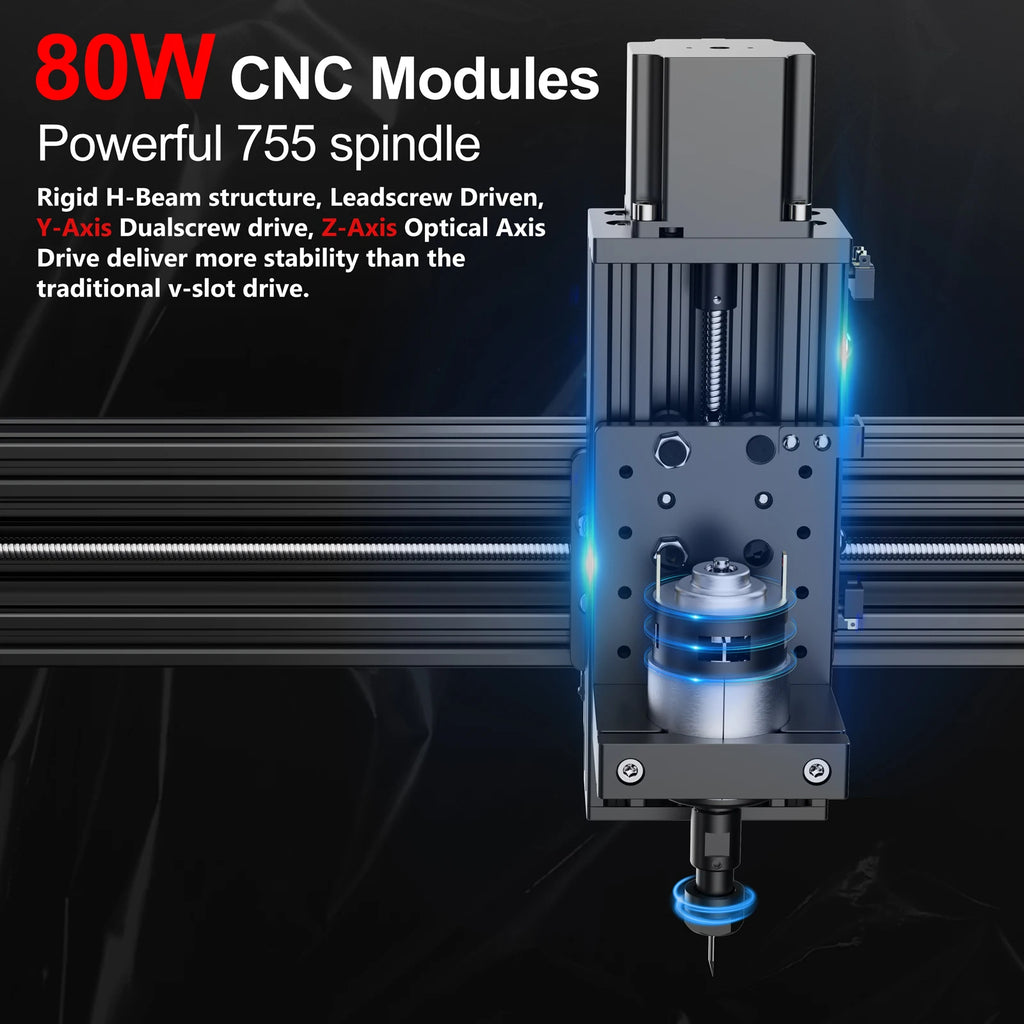

Spindle parameters : 24V 5A, 775 motor 8000RPM
Tool setting: software control
Control Board Compatibility: GRBL
Engraving speed MAX : MAX800mm/min
Limit switch: X, Y, Z three-axis double limit + ESTOP
Stepper driver: A4988 1.3A (other drivers can be connected to the motherboard)
Linear transmission mode: Built-in POM wheel
Stepping motor NEMA 23 (2 phases, 1.5A) torque 20mN. m
Transmission type : T8 screw pitch 2mm lead 4mm screw
/ Y-axis Double Y-axis with built-in rollers
Emergency stop switch Yes
The motherboard adopts ESP32 highly integrated chip with low power consumption, high stability and reliability, ultra-high processing speed and large memory, supports offline controllers, supports four axes, and supports PWM laser signals.
Harness management: XY energy chain
Machine weight kg: 19.2kg
Shipping weight kg: 20kg
CAM software
control: Candle
Programming: CarvecoMaker, Artcam, Easel
Operating system Windows XP/7/8/10, MAC OS
Engraving materialsEngraving and cutting MDF, PVC, acrylic, solid wood, particle board, plywood, organic board, epoxy resin, nylon, PCB, aluminum, copper, carbon fiber board, etc.
