SPECIFICATIONS
Brand Name: ATORCH
DIY Supplies: ELECTRICAL
Origin: Mainland China
Type: Household Battery Tester
Certification: CE
Certification: RoHS
Model Number: DL24
Load voltage-U: DC2V~200V
Load current-I: 0~20A
Load power-W: U*I≤150W(max)
Capacity metering range: 0~999999mAh/99999AH
Energy measurement range: 0~999999mWh/99999Wh
Display mode: 2.4 inch TFT color screen
Test mode: CC/CV/CP/CR

【Product Features】
This product supports 2~200V, 0~20A within the maximum 150W load
Over-voltage, over-current, over-power, over-temperature protection and reverse connection protection below 100V
Support timing shutdown and specified voltage shutdown
Four-wire wiring system for more accurate capacity measurement
Active heat dissipation with load power above 10W or core temperature ≥55℃ to start the fan
【Parameters】
Load voltage-U: DC2V~200V
Load current-I: 0~20A
Load power-W:U×I≤150W(max)
To avoid pulse damage, the total load power is capped at 60W when the load voltage is ≥120V
Capacity metering range:0~999999mAh
Energy measurement range:0~999999mWh
Applicable power supply: DC12V 1A/PD12V PD voltage trigger power supply (must have a PD charger)
Wiring mode: four-wire system A+ V+ V- A-
Display mode: 2.4 inch TFT color screen
Control operation: 4 button control
Heat dissipation mode: active heat dissipation load power above 10W or core temperature ≥55℃ to start the fan
Over-voltage protection: support
Overcurrent protection: support
Over power protection: Support
Over-temperature protection: the core temperature exceeds 100 ℃ to stop the load (Not-adjustable)
Time limit discharge: Support
Specified voltage shutdown: Support
【4 test modes】
1. Constant current mode (CC): Supported
2. Constant resistance mode (CR): Supported
3. Constant Power Mode (CP): Supported
4. Constant voltage mode (CV): Supported
【Online PC view】: supported
By using a USB Android data cable (not included), you can connect to a computer and download the CH340 driver. You can view curve data and export data such as time, voltage, current, and power
Software address download:
https://www.mediafire.com/file/9doutmib3epm2a1/01-DL24M_DL24_electronic_load_software_V1.0.2_version.zip/file
Attention:
The power supply specification we provide is DC12V US US standard power supply, and we will also be equipped with a US to EU EU adapter. If your country cannot use this power supply, it is recommended not to purchase it to avoid disputes!
Thank you for your support!

【Test external temperature】: supported
Supports external temperature detection, and the thin film temperature probe can detect battery temperature!
【Restore factory settings.】
①Device power ON
②Long press the Start button to enter the device background
③Select Factory reset
④.Long press the Start button to Return to the main testing interface

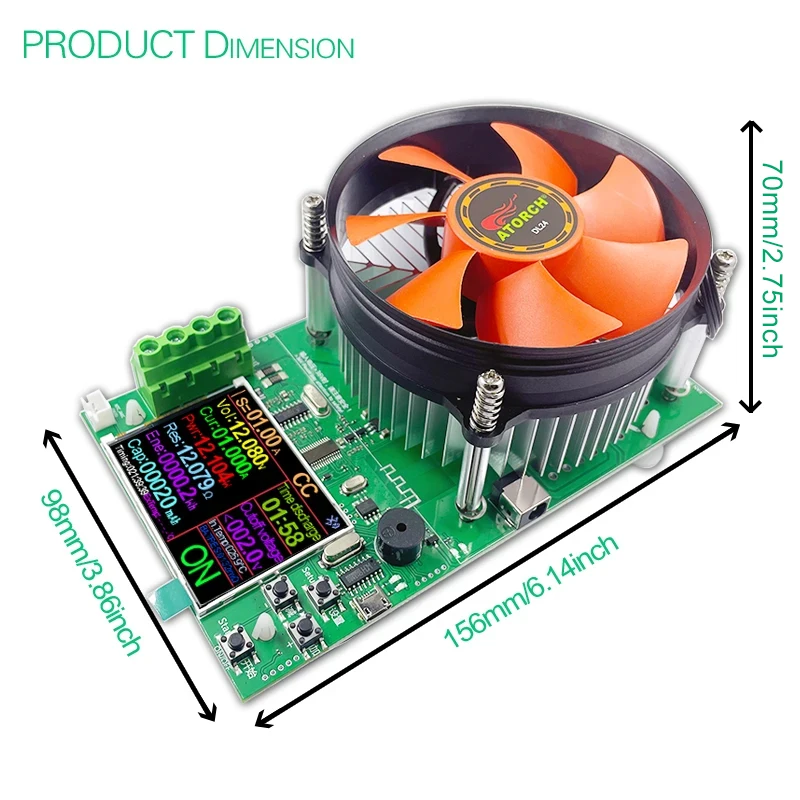

Product Size

Product List 1
1.150W CNC electronic load x1
2.12V PD trigger x1
3.4 interface adapter X1
4.User Manual x1
(This package does not include temperature probes, DC12V power supplies, and PD chargers
You can use your own PD charger (purchased with a voltage of 12V))


Product List 2
1.150W CNC electronic load x1
2.4 interface adapter X1
3.Temperature probe x1
4.1M PC computer online line x1
5.DC12V 1A power supply x1
6.US to EU adapter x1
7.User Manual x1

Product List 3
1.150W CNC electronic load x1
2.18650.26650.14505.14340.14250 battery teste box X1
3.Temperature probe x1
4.1M PC computer online line x1
5.DC12V 1A power supply x1
6.US to EU adapter x1
7.4 interface adapter X1
8.User Manual x1


About SOFTWARE QUESTIONS:
1. The APP crashes on my PC, what is the problem ?
A: For PC software, because there may be incompatibilities problems, please download first before buying , if you can download and install, you can place order, or else do not buying. If you don't test the PC software and APP function before buying and find that the products works fine except the PC software, we refuse to refund.For PC software, it only support win 7 and Win 10 above for now.
2. Why are there _BLE and _SPP modes and which one to choose?
A:Our APP adopts the latest connection technology, please do not pair in Bluetooth mode, directly click on the E-test (Android APP name) APP provided by us, click the Bluetooth symbol, E_test (Apple APP) select the _BLE Bluetooth name to proceed connect, that's it ok!
_BLE:is connected in mobile mode
_SPP:is connected in PC computer mode
3.What is the computer pairing password?
A:Password is "0000" or "1234"
4.Does it support WIFI mode?
A:No support, connected via wireless bluetooth mode!
