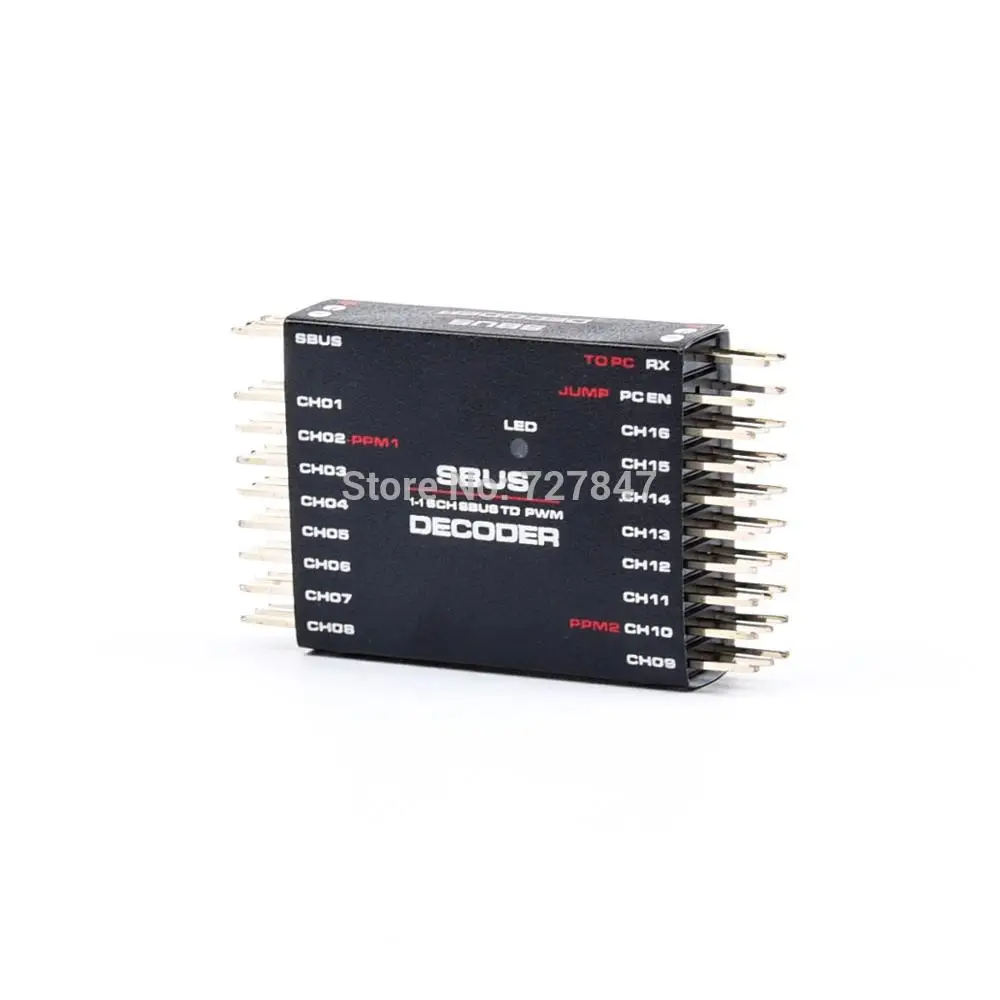

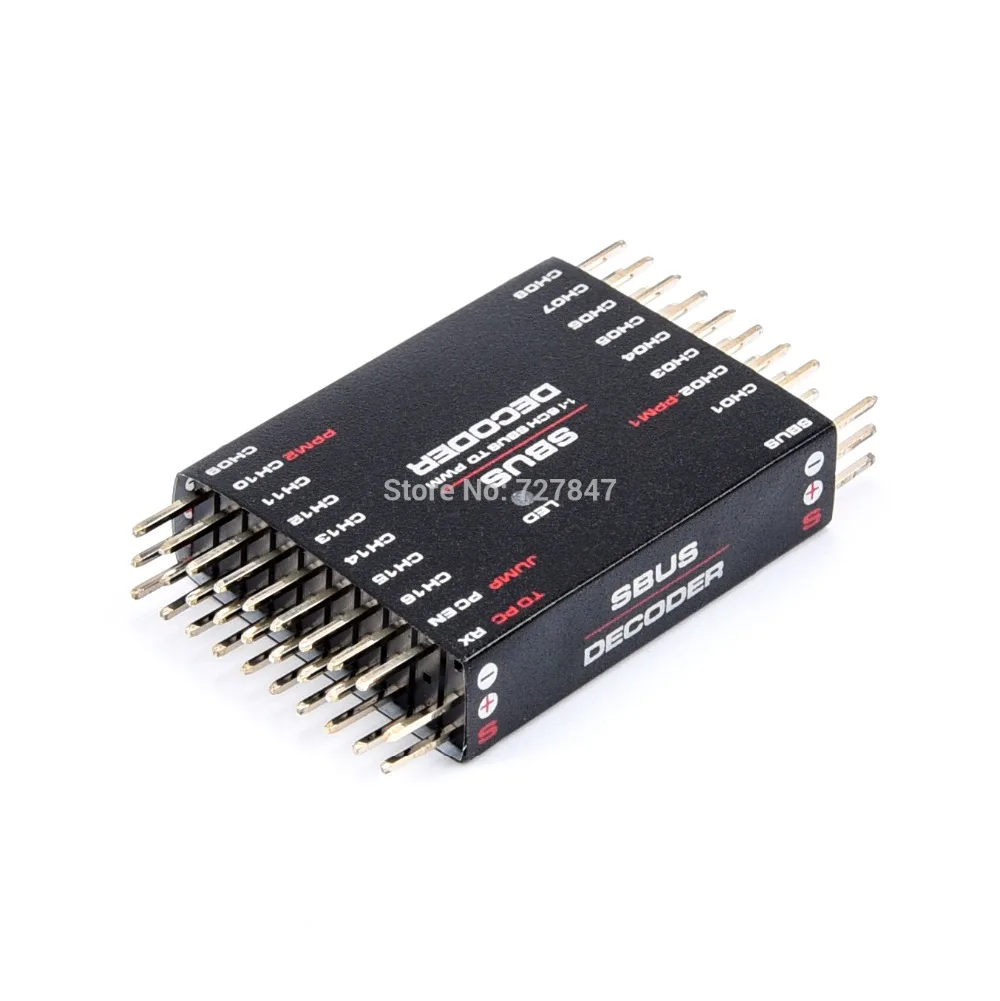

SBUS to PWM PPM Decoder 16CH Supporting the PC Settings For Frsky X8R RXSR Receiver Remote Control Radio

Save 20%
East Supplier PlatformSKU: 2255800790000718-1PCs

Color: 1PCs
Price:
$20.84 $26.05

Tax included

Stock:
In stock (3581 units), ready to be shipped

Description

SPECIFICATIONS

for: Futaba Orange Frsky

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: For Frsky X8R RXSR

Tool Supplies: Cutting

Technical parameters: Value 6

Remote Control Peripherals/Devices: Receivers

Recommend Age: 12+y

Recommend Age: 14+y

RC Parts & Accs: SBUS to PWM PPM Decoder

Quantity: 1 pcs

Origin: Mainland China

Model Number: 16CH SBUS to PWM PPM Decoder

Material: Composite Material

Four-wheel Drive Attributes: Assemblage

For Vehicle Type: Airplanes

Brand Name: Readytosky

Item Name: SBUS To PWM/PPM Decoder
Suitable For: Futaba Orange Frsky
Channel: 16CH

Feastures:

SBUS to PWM/PPM decoder, 16 channel output, supporting the PC Settings.Any port output and any channel data ,can be more ports output 1 or more road signals,  customize all channel output sequence , super perfect SBUS decoder, perfectly supporting decoding futaba, orange, frsky SBUS signal.


Note: You can download the file version from the link below, thank you.


https://www.dropbox.com/s/dom63jjn2z3w44a/SBUS%E8%BD%AC%E6%8D%A2%E5%99%A8%E5%AE%A2%E6%88%B7%E6%96%87%E4%BB%B6.zip?dl=0

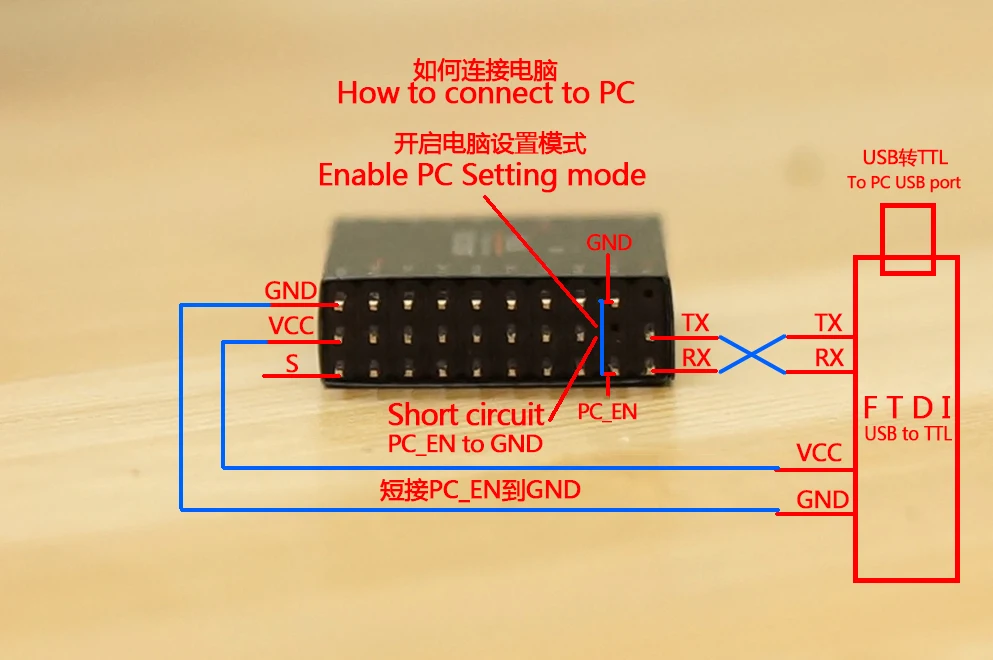

Before using this software, please make sure that the PC-EN pin on the decoder is short-


connected with any negative pole (GND), and restart the software Settings after connecting with


FTDI. Pin connection FTDI -- -- SBUS decoder TX -- --RX, VCC -- any positive +, GND - any


negative -.

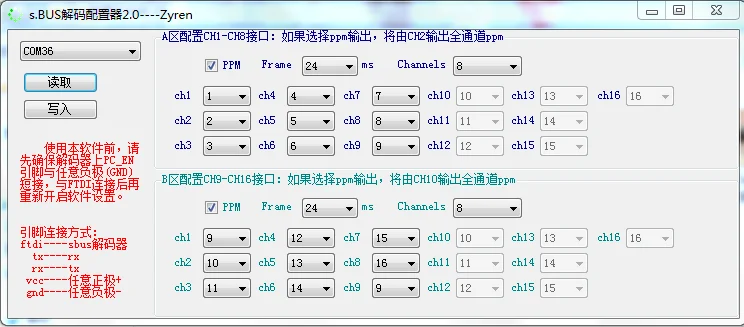

After CH1-CHB is configured in block A: If PPM is selected, CH2 outputs the whole-channel


PPM.

CH9-CH16 ports are configured in block B. If PPM is selected, the CH10 outputs the whole-


channel PPM.

1PCS / 2PCS / 3PCS x DIY SBUS To PWM/PPM Decoder
