UNI-T UT89XD UT89X True RMS Multimeter Digital Professional Electrical Tester NCV Diode Temperature Triode Capacitance Meter

Save 20%
East Supplier PlatformSKU: 2251832856663015-UT89XD

Color: UT89XD
$72 $90
Only 13 units left

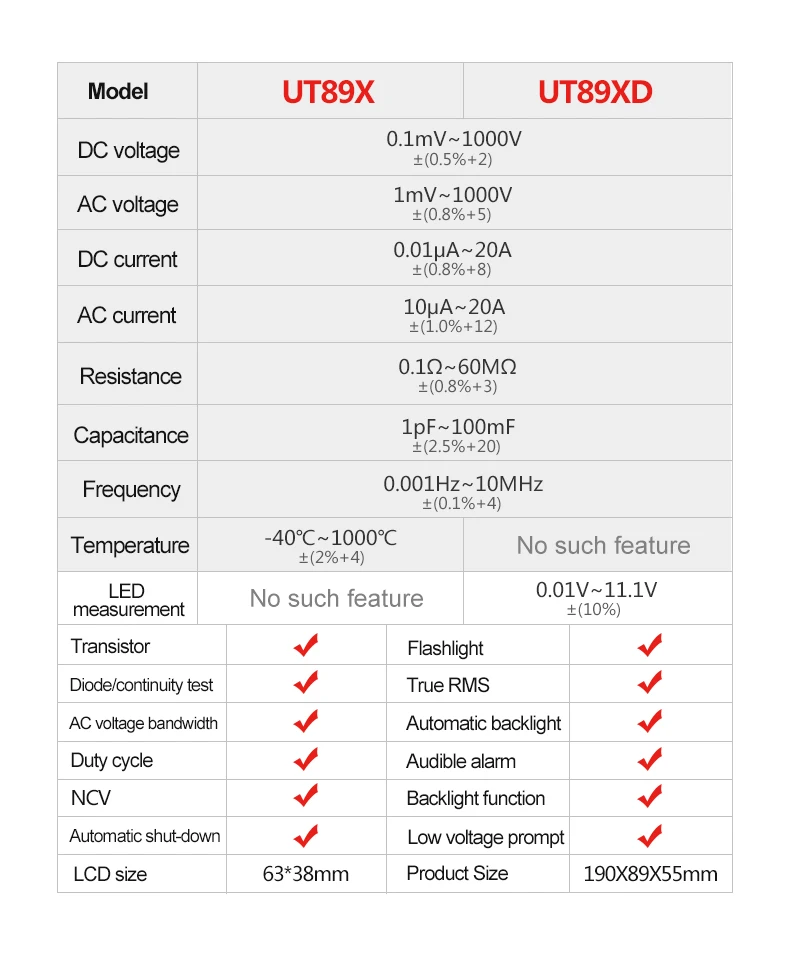

True RMS: Yes

Transistor hFE: Yes

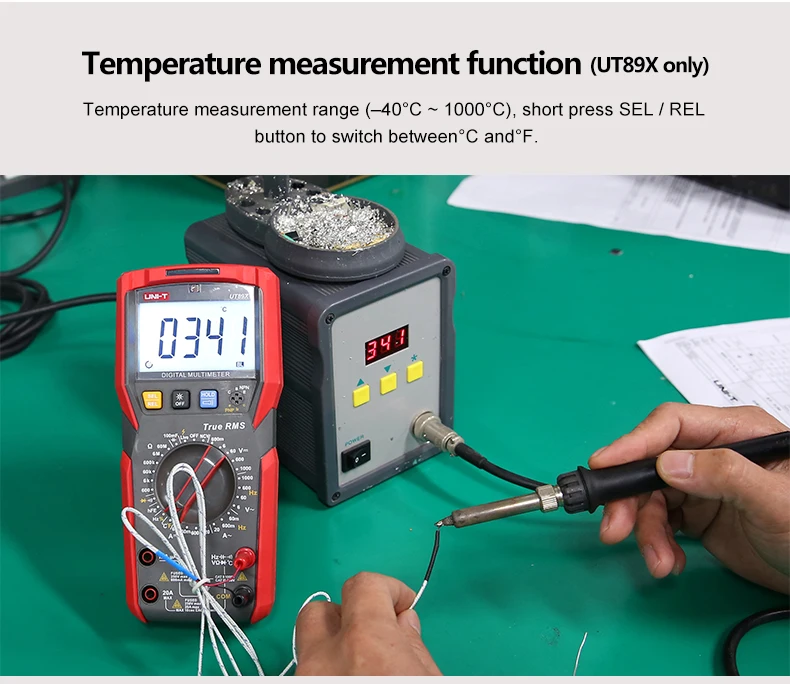

Temperature Fahrenheit: -40 Fahrenheit~1832 Fahrenheit

Temperature (Centigrade): -40centigrade~1000centigrade

Sampling rate: 3 times/s

Origin: Mainland China

Operating Temperature: 0 - 40 ℃

Operating Mode: Manually

Model Number: UT89X/UT89XD

Measuring Resistance Range: 100mF

Measuring Inductance Range: N/A

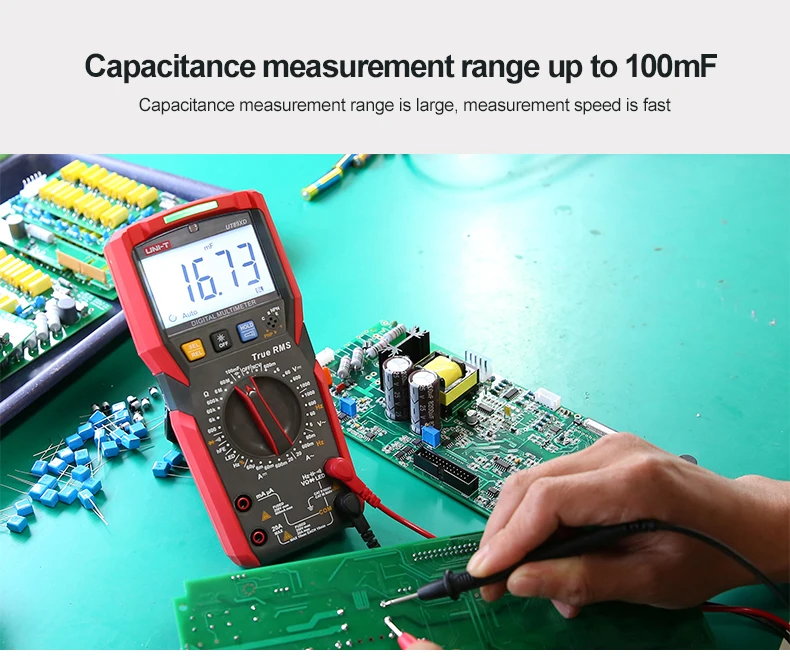

Measuring Capacitance Range: 6nF/60nF/600nF/6uF/60uF/600uF/6mF/60mF/100mF

Low battery indication: Yes

Live wire test: Yes

Frequency (Hz): 9.999Hz/9.999MHz

Flashlight: Yes

Electric Tester: Digital Multimeter

Duty cycle: 0.1%~99.9%

Dual range NCV test: Yes

Display count: 6000

Display Type: Digital display

Diode/Continuity test: Yes

Dimensions: 189mm*89mm*53mm

Data hold: Yes


DC Voltage: 600mV/6V/60V/600V/1000V

DC Current: 60miuA/60mA/600mA/20A

Brand Name: UNI-T

Auto power off: Yes

Auto backlight: Yes

AC voltage frequency response: 45~1000Hz

AC current frequency response: 45~1000Hz

AC Voltage: 6V/60V/600V/1000V

AC Current: 60mA/600mA/20A

UNI-T UT89X UT89XD Professional Digital Multimeter True RMS NCV 20A Current AC DC Voltmeter Capacitance Resistance Tester

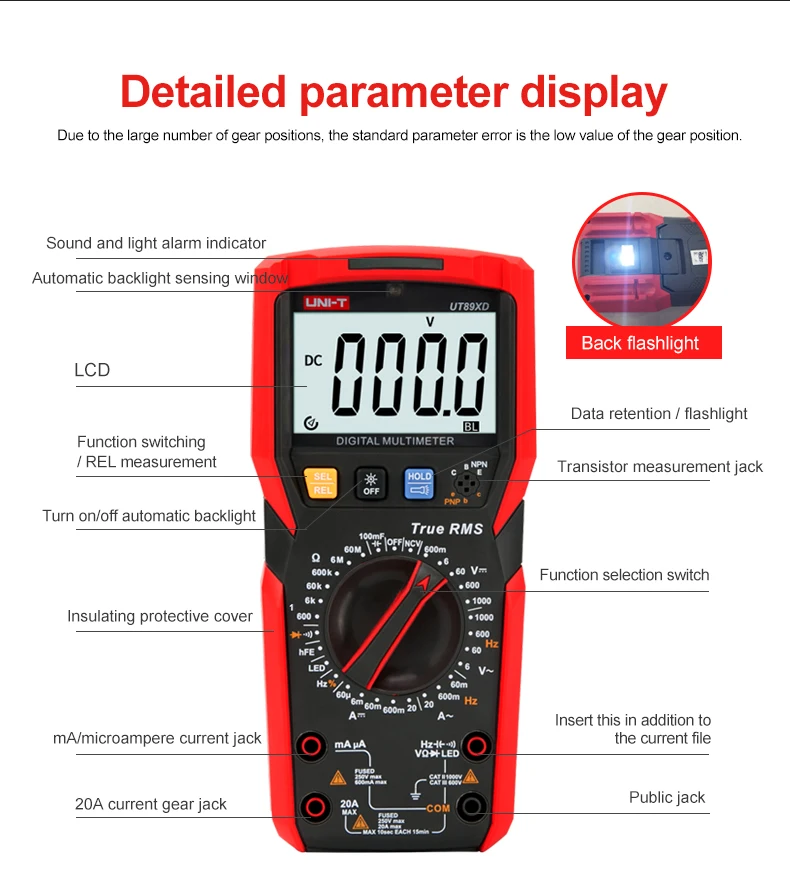

UT89X/UT89XD is a reliable hand-held 35/6 bit digital multimeter with true RMS sine wave measurement. It can measure Max. 1000V DC/AC voltage, Max. 20A DC/AC current, resistance, capacitance, frequency, diode, hFE, continuity and NCV, quickly distinguishing between neutral and live wires accurately. UT89X can measure temperature and detect neutral and live wires with a test lead. UT89XD can perform LED test. It attracts users with its bi-color durable case, modern exterior and multiple functions.


Equipped with audible and visible alarm, flashlight and auto backlight functions, this series can be used in dark environment.


1. 1000V AC/DC; 20A AC/DC

2. True RMS, 6000 count

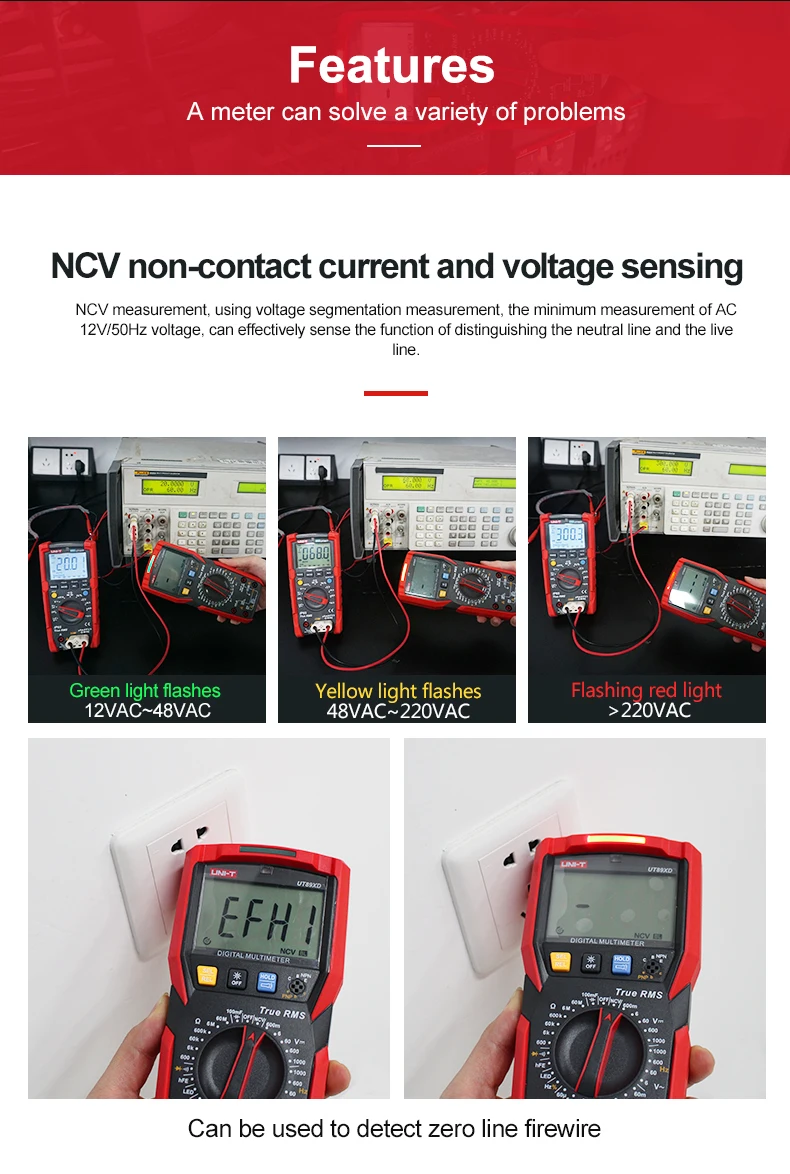

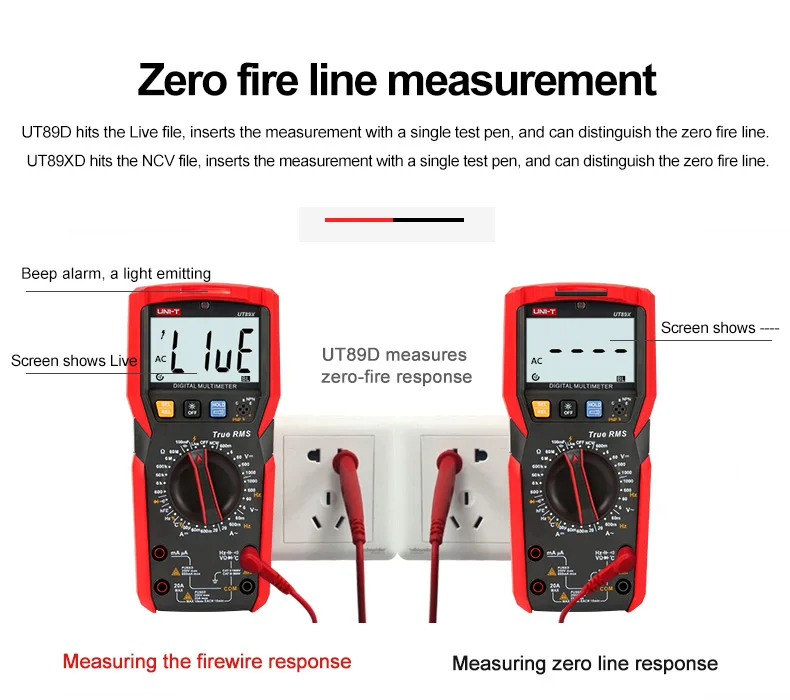

3. Dual range NCV test which quickly identifies neutral and live wires through light intensity

4. Audible/visual alarm

5. Capacitor charging indicator

6. Ergonomic design

7. Double injection molding

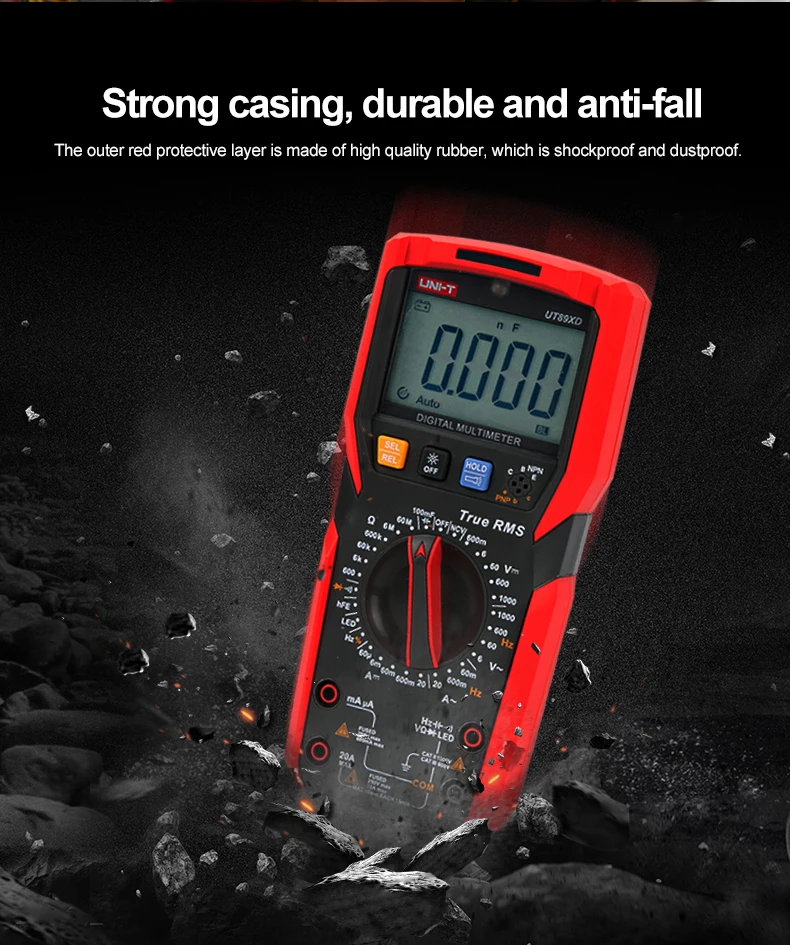

8. 1m drop proof

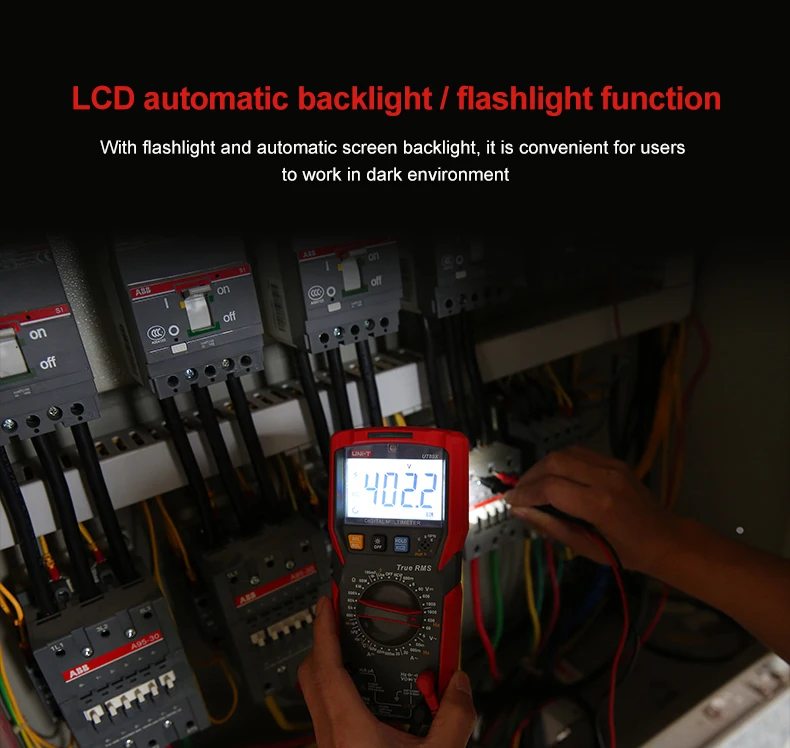

9. Flashlight; Auto backlight

NOTICE : Battery Not Included
